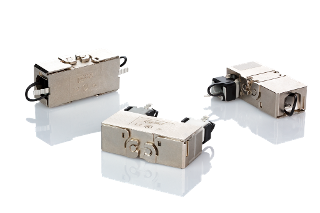

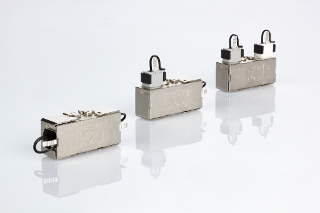

Cable connector class EA 360°

Description

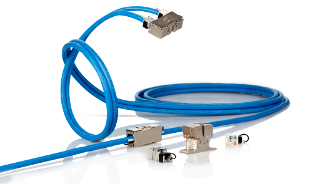

  • Cable connector for field assembly Class EA for 8 wire cables (optionally also for 4 wire cables)

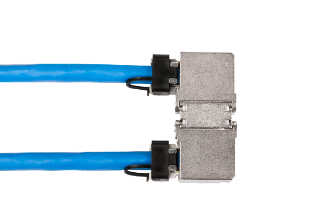

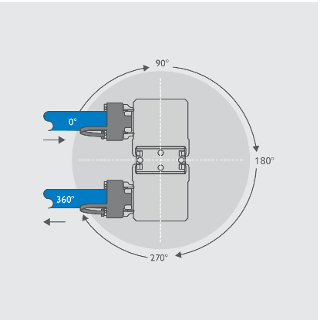

  • Cable feed angled return 360°
  • to connect / extend / repair / relocate copper data cables up to Cat.7A
  • in combination with Cat. 6A or higher copper cables, class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173 is fulfilled
  • suitable for 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP
  • Compact design, length 46.6 mm x width 14.7 mm x height 31.8 mm

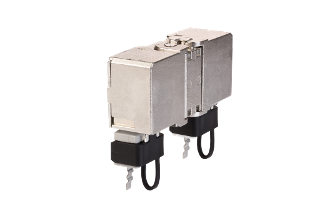

  • solid, one-piece and reusable housing refined with zinc die-casting
  • simplest confection - mounting without special tools, strain relief via snap-in clip directly on the loading piece
  • intelligent cable management in stuffer cap - also suitable for heavily twisted cables
  • shield connection and strain relief integrated
  • conductor assignment to T568A and T568B is directly printed on the stuffer cap
  • Simple extension or relocation of existing infrastructure C6A modul through reusable loading pieces
  • easy connection of data cables AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
  • solid copper wire diameter 0.409 to 0.643 mm
  • stranded copper wire diameter 0.483 to 0.762 mm
  • suitable for cables with an overall diameter of 5.5 to 10 mm
  • fully shielded version according to DIN EN 50173
Technical Data
General Data
  • structured building cabling
  • Industrial Ethernet
  • office areas
  • harsh environment
  • Distributed building services
  • data center
M1
I1
C1
E2
cable connector
shielded
Copper
T568A, T568B
metallike
46.6 mm
14.7 mm
33.44 mm
1.835 in.
0.579 in.
1.317 in.
yes
Transmission characteristics
EA
yes
IEEE 802.3af
IEEE 802.3at
yes
IEEE 802.3bt
yes
IEEE 802.3an
Connections/interfaces
IDC-connection
IDC-connection
8
8
AWG 26/1 - AWG 22/1
0,128 - 0,324 mm²
0,409 - 0,643 mm
0,016 - 0,025 in.
AWG 26/7 - AWG 22/7
0,141 - 0,355 mm²
0,483 - 0,762 mm
0,019 - 0,03 in.
1.6 mm
0.063 in.
5.5 mm
10,00 mm
0.197 in.
0.394 in.
360°
yes, if cross section is greater or the same
for cable plugs 2,8 mm/0,11 inch
flexible contact spring
Electrical characteristics
max. 1 A
max. 50 V
max. 20 mOhm
max. 200 mOhm
min. 500 MOhm
max. 1000 V DC
Mechanical data
latching clip
Materials and material properties
GD-Zn (zinc die-cast)
Ni (nickel)
CuSn (tin bronze)
Sn (tin)
GD-Zn (zinc die-cast)
PA 6.6 UL94 V0
PA 6.6 UL94 V0
yes
no paint wetting interfering substances (LaBS) in the process chain
subsequent contamination possible due to handling and possible storage in your company
compliant
compliant
Environmental conditions
-40 °C
70 °C
-40 °F
158 °F
-40 °C
70 °C
-40 °F
158 °F
IP2X
IPX0
