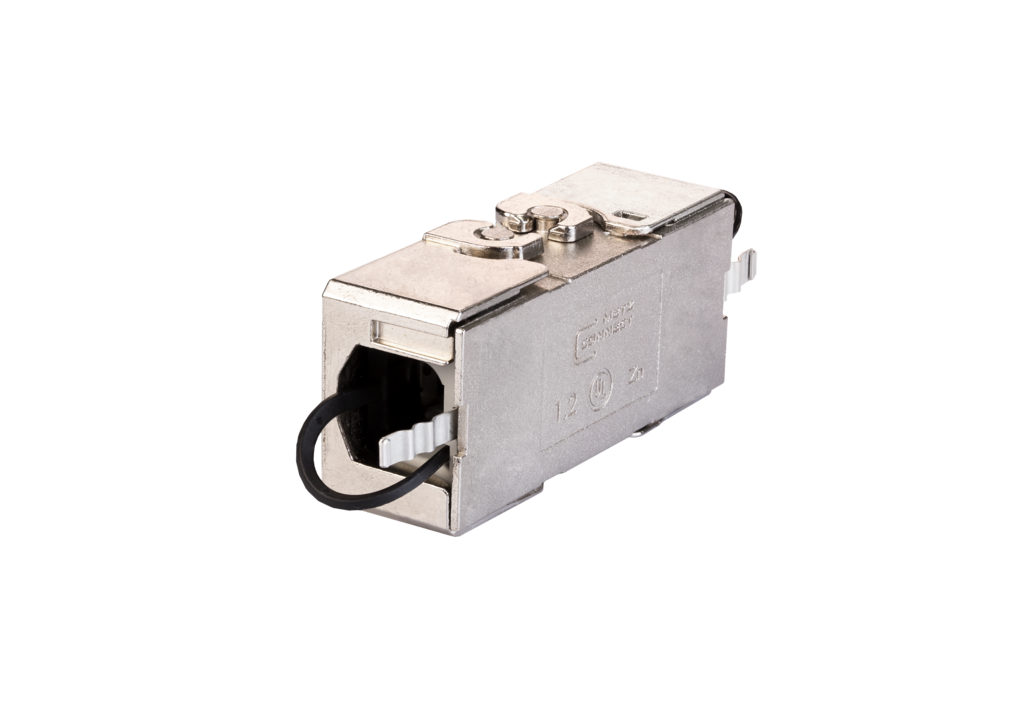

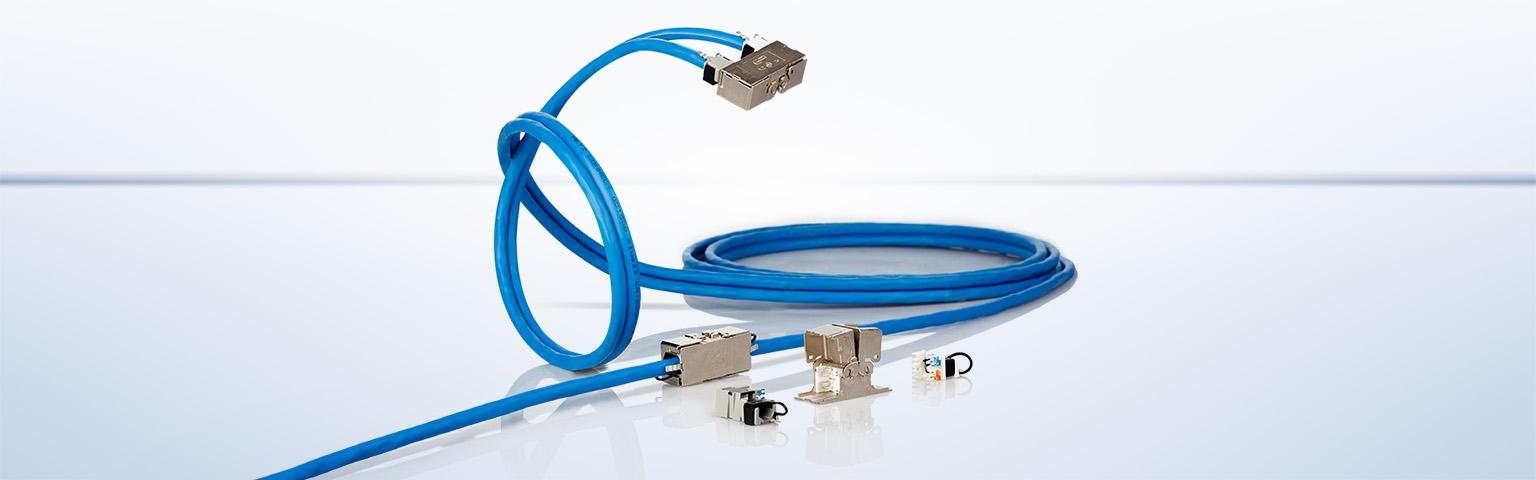

Cable connector Class EA 180°, 270° and 360°
During maintenance, expansion and installation of new cabling, it's possible for a cable to be too short. What to do? Replacement of the entire cable will cause additional work and increase cost. Also, certain local conditions may not allow this.
The Cable Connector Class EA is the intelligent solution for a simple extension or connecting of data cable without the need for special tools. Thanks to its compact design and the angled variants, it can be used in a wide variety of applications, even in confined spaces. With a Class EA compliance, links with up to 10 GBit/s can be achieved without any problems. The cable connector is therefore a problem solution for almost any network infrastructure, and should be included in every toolbox as basic equipment!
Benefits
- Easy to install connection with IDC cuttin contacts
- Compact design
- Robust, one-piece and reusable zinc die-cast housing
- Same loading piece as C6Amodul
- Shield clamp for 360° shielding
Variants

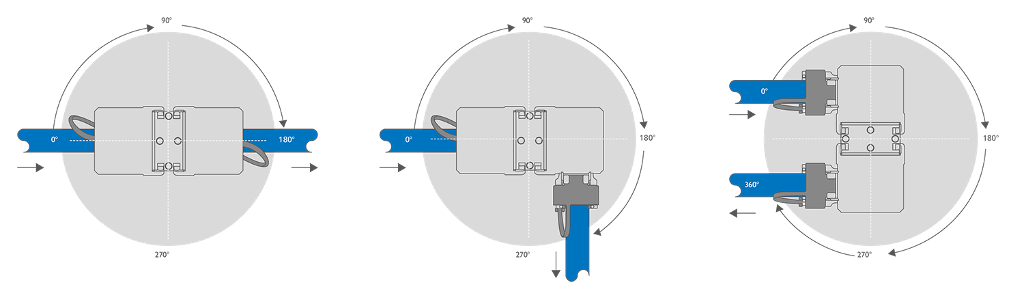

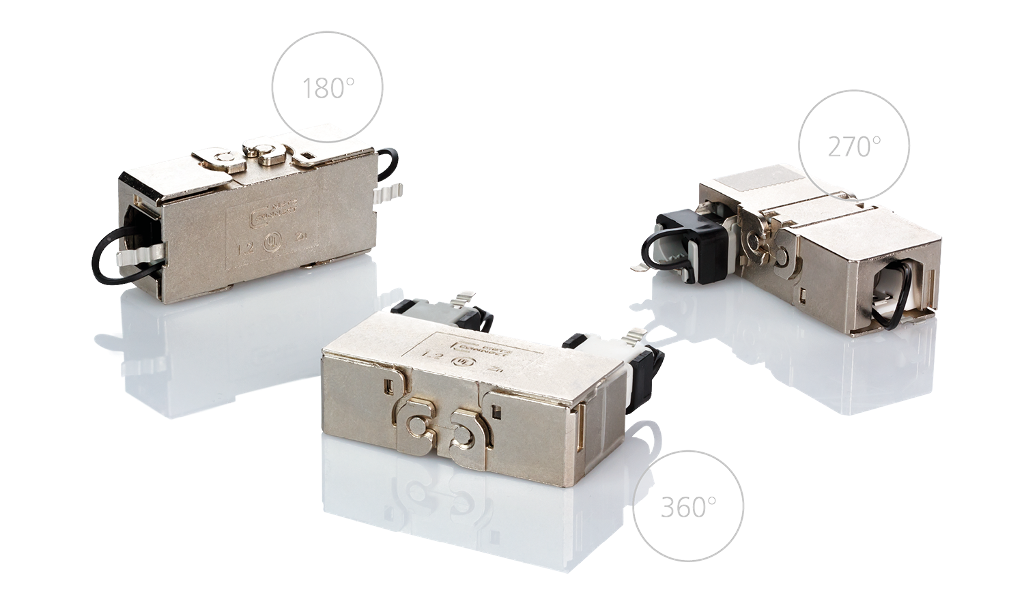

Lots of possibilities with the 180 °, 270 ° and 360 ° variants
The Cable Connector Class EA is available in three variants. The variants differ in the cable direction.

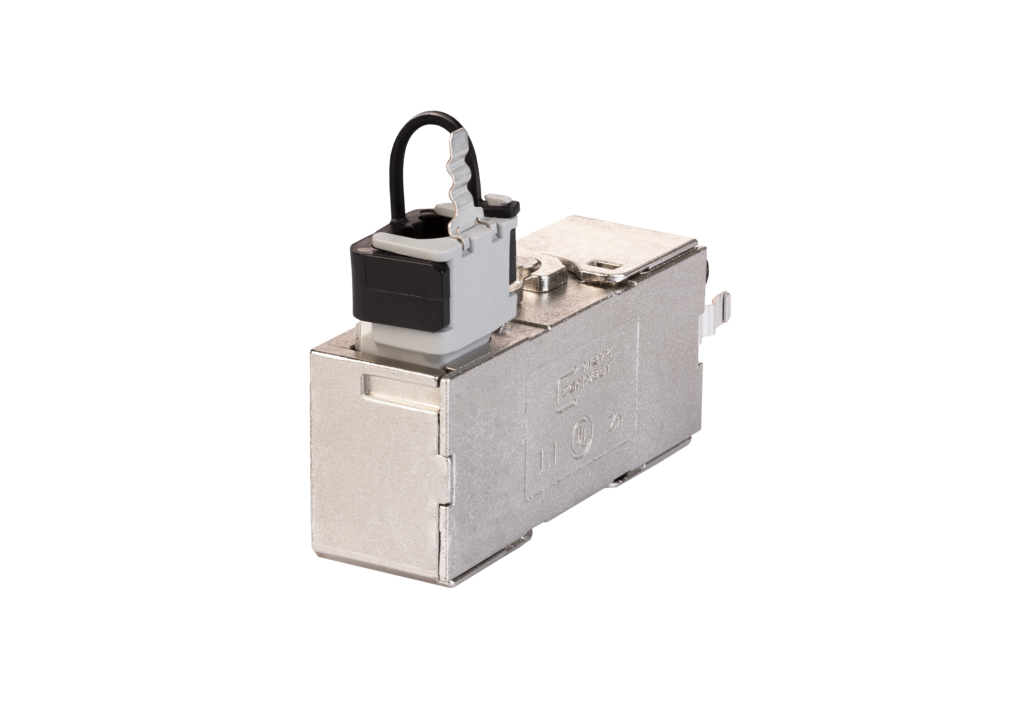

The angled variants 180°, 270° and 360° can be used to connect cables in a wide variety of situations.
Product video/ picture
Application examples
Order details
Additional material
Installation options
Known assembly principle
Technically, the Cable Connector Class E A is based on the installation principle of the METZ CONNECT C6 A modul. This results in not only a system of the products, but also a consistent and easy installation.
Mounting video: cable connector class EA 180°
Mounting video: cable connector class EA 270° and 360°
Relocation of existing infrastrucrure with C6 A modul
If the C6 A modul was used in an existing infrastructure, a relocation can be performed more easily and quickly since the loading piece of the C6 A modul can be used in the Cable Connector Class E A . Through this, only one side has to be connected again.
Click & fix 19" carrier for cable connector
19" cable connector bracket for use as a consolidation point, for moving distributors or complete distribution cabinets.
Part Number: 130863T101E
