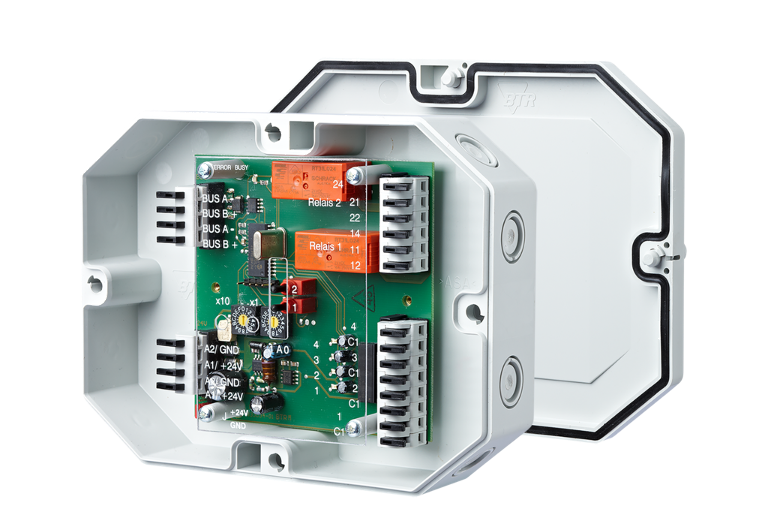

BMT-DIO4/2-IP65 BACnet MS/TP

Description

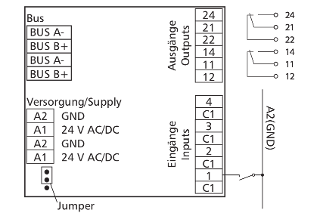

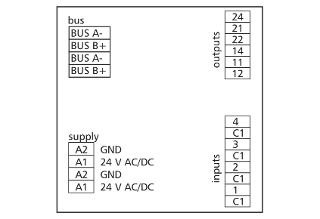

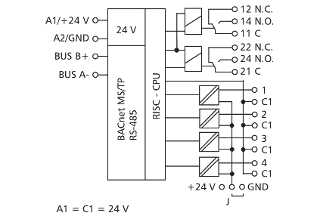

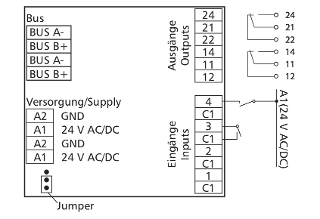

The BACnet MS/TP module in IP65 housing with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks. It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers. It can also be used to control 2 motorized fire dampers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs can be used as contact or voltage inputs. The inputs and outputs can be switched and scanned by means of standard objects via a BACnet client. The module address and the baud rate are set by means of two address switches.

BACnet is a registered trademark of ASHRAE. ASHRAE does not endorse, approve or test products for compliance with ASHRAE standards. Compliance of listed products to the requirements of ASHRAE Standard 135 is the responsibility of BACnet International (BI). BTL is a registered trademark of BI.

Technical Data
General Data
BACnet MS/TP
00 to F9
RS485 (two-wire bus)
9600 to 115200 bit/s
24 V AC/DC +/- 10 % (SELV)
200 mA (AC) / 75 mA (DC)
100 %
4 x digital
0 - 24 V AC/DC
more than 7 V AC/DC
2 changeover contacts (DPDT)
250 V AC
8 A / output
10 A / output
80 A (less than 20 ms)
Green, red and yellow LED
160 x 40.7 x 120 mm
350 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory

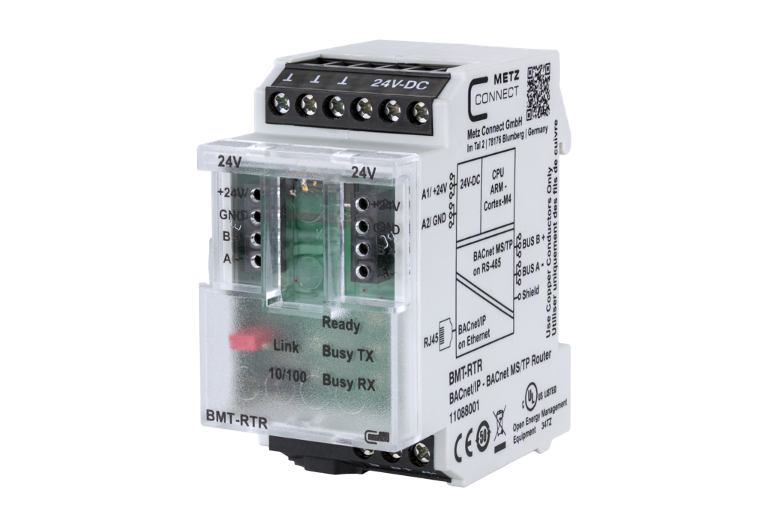

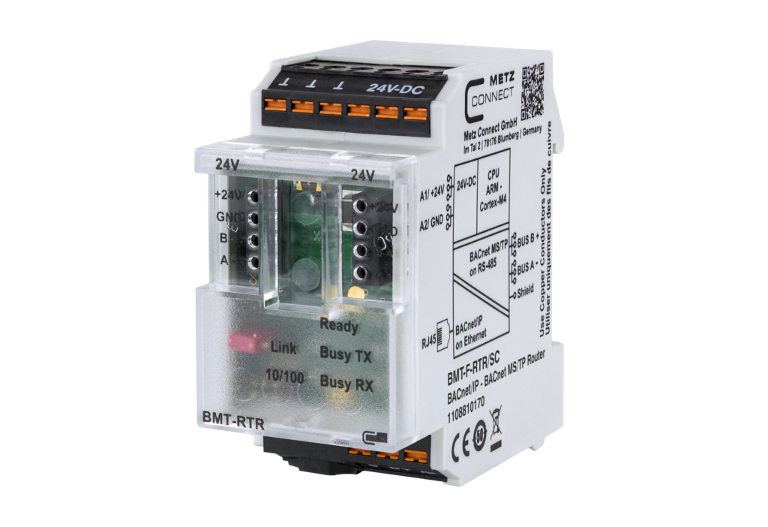

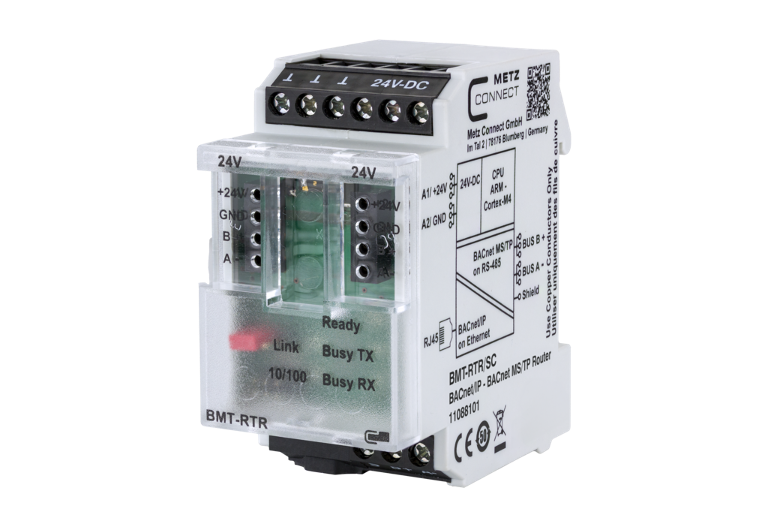

Accessories
Accessory of
Part number
1108831326IP
4250184138730
