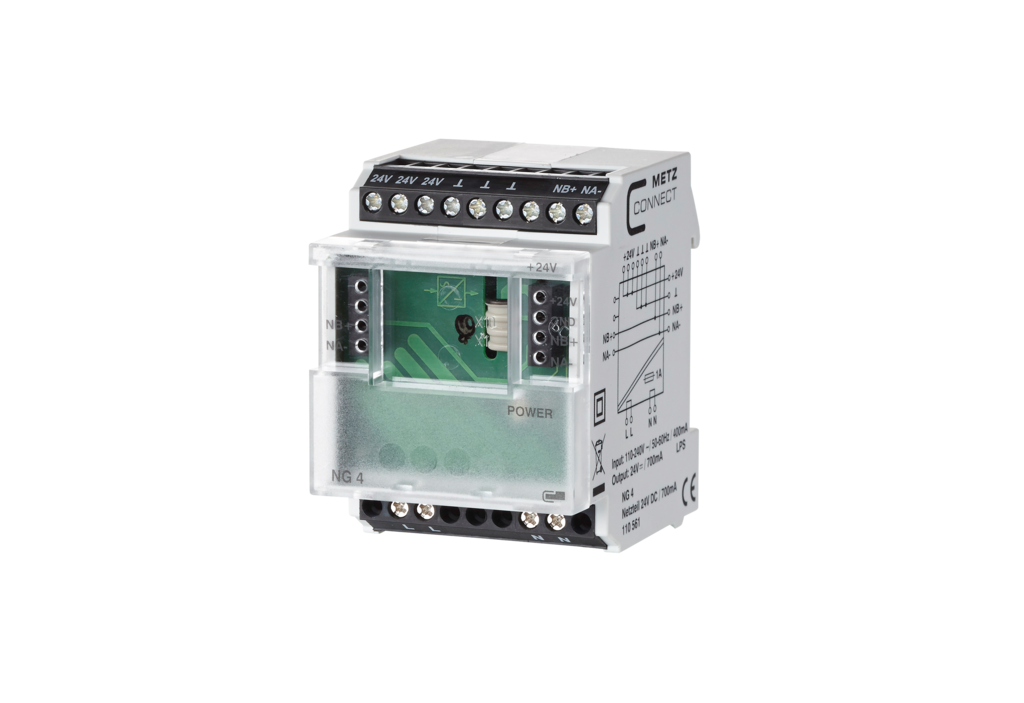

Power supply unit NG4 24 V DC
Task
For the TH 35 DIN rail mounting in accordance with IEC 60715 in electrical sub-distributors, an operating voltage is to be made available for system components of building / industrial automation.
Solution
The NG4 power supply unit provides a regulated DC voltage of 24 V DC / 16 W to supply devices from the I/O component family. The secondary voltage can only be picked up on the right-hand side of the front of the device via a plug-in terminal and on the screw terminals. The bus communication can be picked up on both sides of the front of the device via plug-in terminals.
Installation
- decentralized installation on TH35 mounting rail according to IEC 60715 in electrical distributors
- connection with screw terminals
Advantages
- low cabling effort
- bridge plug for direct connection of the I / O modules
- additional support terminals for voltage and
bus
