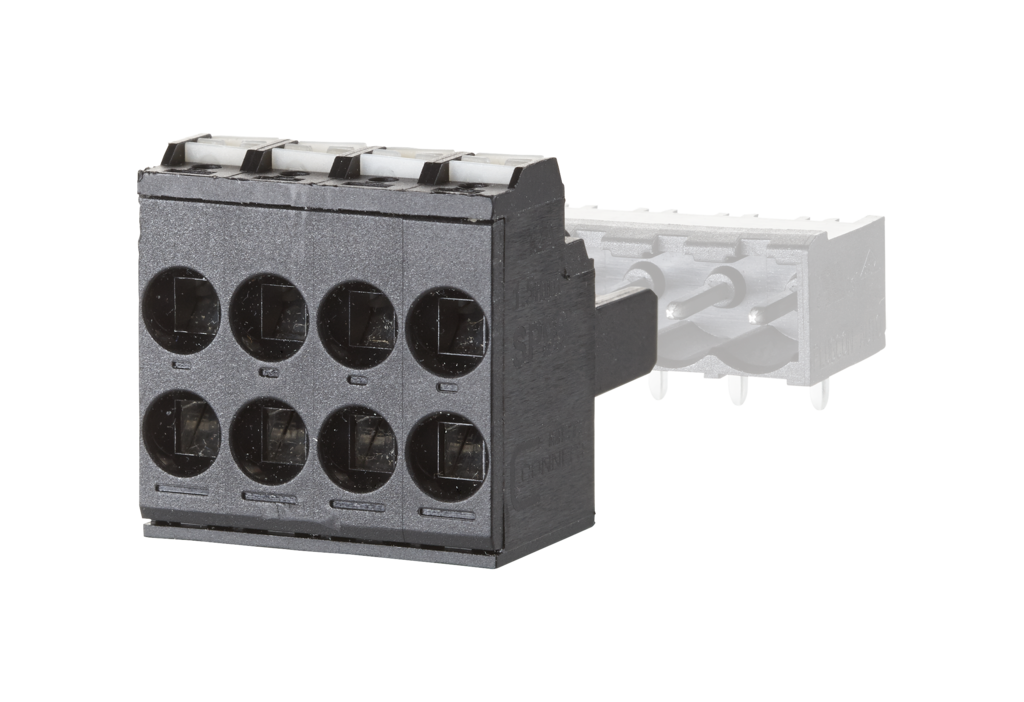

Plug-in spring clamp terminal blocks (SP99 | SP995xxVBNC)
Task
An increasing packing density in DIN rail mounted devices leads to long connection times and maintenance costs.
Solution
- 2 connection options per pole: for grinding
- lever not on the connection side: easy to connect
- cores can be detached individually: an advantage for maintenance/repair
- 2 x 2.5 mm² conductor cross-section: switch power
- push-in spring terminal for quick, tool-free connection
- about 50 % shorter connection time, with permanent contact security
Area of application
- DIN rail mounted devices
Properties
- plug-in spring-loaded terminal
- push-in technology
- grid dimension 5.00 mm
- 2 connections per pole
- electrical data 12 A/250 V
- connection cross-section 0.2 - 2.5 mm²
- number of poles 2 to 8
Advantages
- quick installation thanks to spring-loaded terminals with push-in technology
- 2 connection options per pole
- cores user-friendly and individually detachable
- codable color options
-
customer-specific adjustments possible
