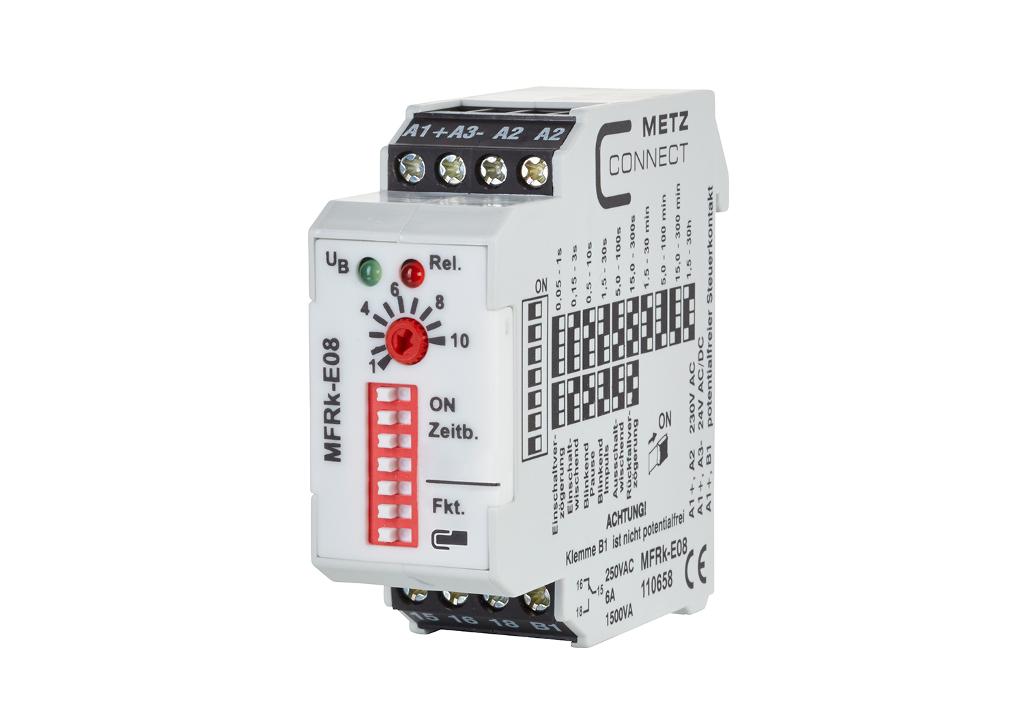

Multi-function timer relays | MFRk-E08 230 V AC, 24 V AC / DC
Task
For the synchronization of e.g. two differently starting conveyor belts in logistics, a time relay should be used to avoid the accumulation of successive products.
Solution
A timer relay such as the MFRK-E08 is a special version of a relay, with the help of which, among other things, in control and automation technology e.g. switch-on or switch-off delays can be achieved. The product range offers timing relays with multiple functions and adjustable time ranges as well as relays with special functions such as switch-on delayed, switch-off delayed, single-shot, blinking or clock-generating.
- for the industrial control cabinet
- mounting on TH 35 mounting rail according to IEC 60715
- connection with screw terminals
Properties
- connection with screw terminals
- ten adjustable time ranges from 0.05 s to 30 h
- six functions can be set:
- switch-on delay
- wipe on switch
- delayed release
- wipe-off switch
- flashing, beginning pause
- flashing, starting with a pulse
