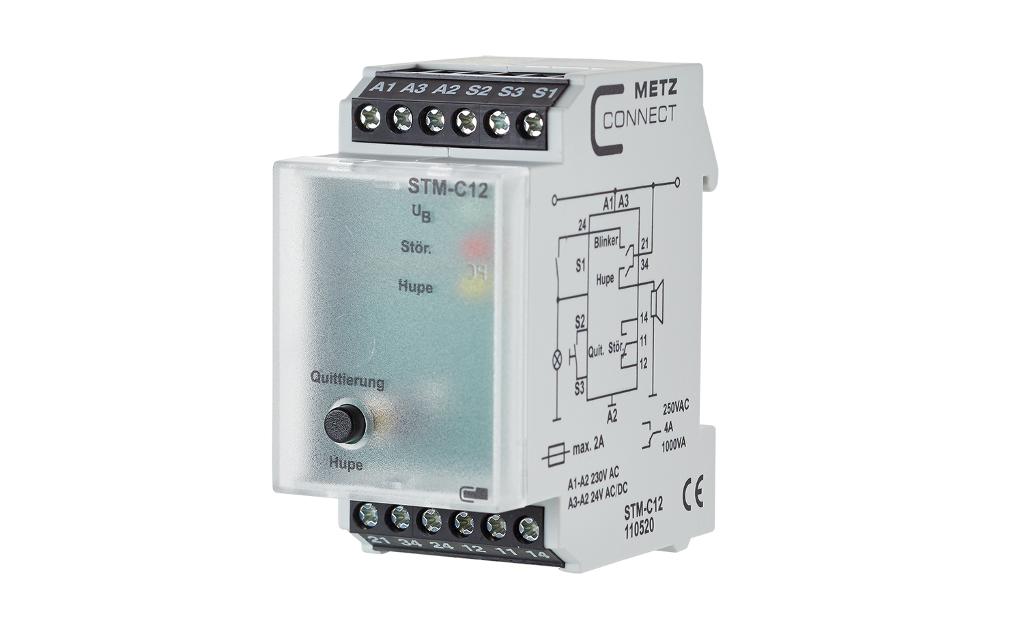

Annunciator modules STM-C12
Task
If there is a fault in a system, an acoustic and/or visual warning signal should be switched via a fault message.
When a fault message is connected, a fault signal, a flashing signal and annunciator modules are switched on. The alarm relay can be switched off via the built-in button or an externally activated signal. A pending interference signal is displayed as long as it is pending on the module.
Properties
- acknowledgeable alarm output
- connection with screw terminals
Installation
- for the industrial control cabinet
- mounting on TH 35 mounting rail according to IEC 60715
- connection with screw terminals
Advantages
- internal alarm relay that can be acknowledged
- alarm relay that can be acknowledged externally
- flashing signal
Opdat CM
Aluminum subrack (19 inch / 3 + 1U / 84TE) with integrated transfer drawer (1U) for installation in 19-inch racks.
Suitable for
- acceptance of a maximum of 12 compact modules 3U/7TE with up to 288 ports on 3U
Advantages
- with integrated transfer drawer to accommodate excess loose tube lengths and to store unused loose tubes; extendable to the rear; with cable management panel and 5 cable brackets
-
with protective sheet for the feeding area of
the loose tubes
