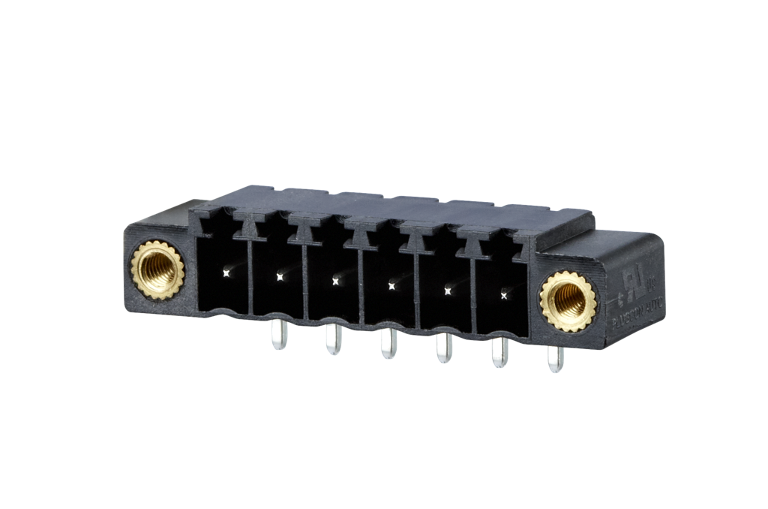

PR044xxHBBF Type 390
Description
- pin header, THR solderable
- centerline 3.81 mm, direction of connection 90°
- closed ends
- color black, mounting flange
- Tape & Reel packaging possible
- codeable
Technical Data
General Data
3.5 mm
2
16
CTI 600
3.01 mm
IP00
Material
PA46
V0
CuMg
Ni + Sn
-
-
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Accessories
Counterpart from
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Pole sizes only available on demand
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
