PM025xxVBHC Type 318
Description
- pin header, SMT solderable
- centerline 5.00 mm, direction of connection vertical 0°
- fittable without loss of poles
- color black
- Tape & Reel packaging
Technical Data
General Data
2
12
CTI 400
2.5 mm
IP00
Material
PA
V0
CuZn
Ni + Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory

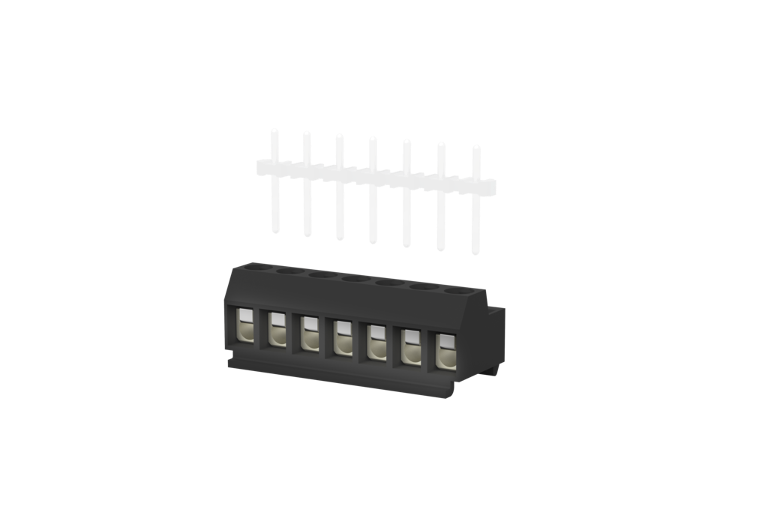

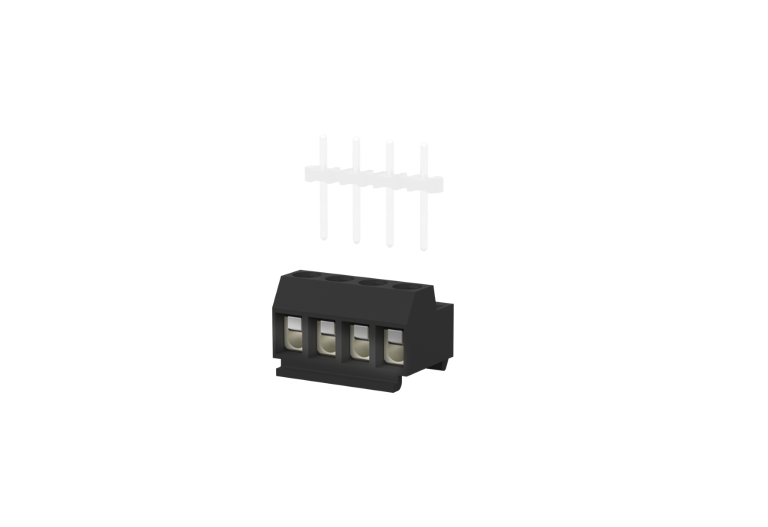

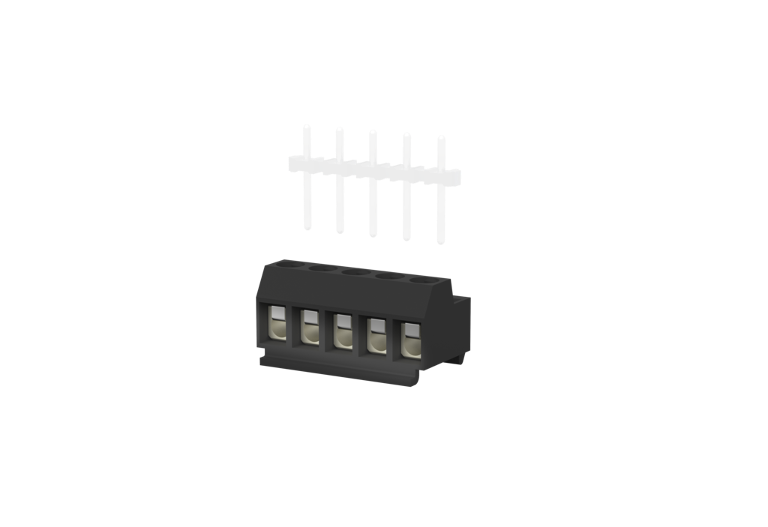

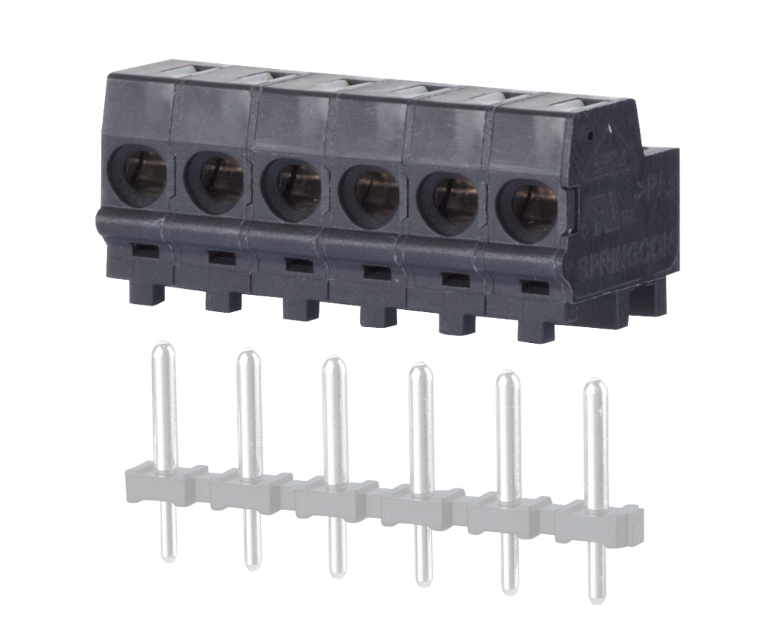

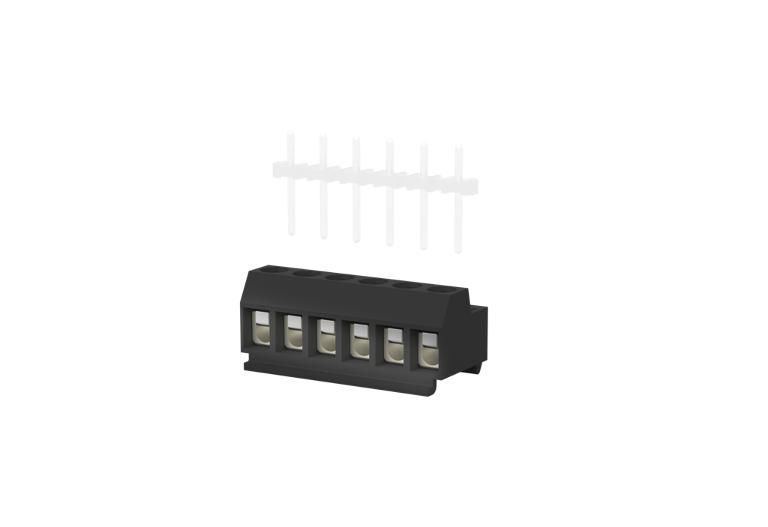

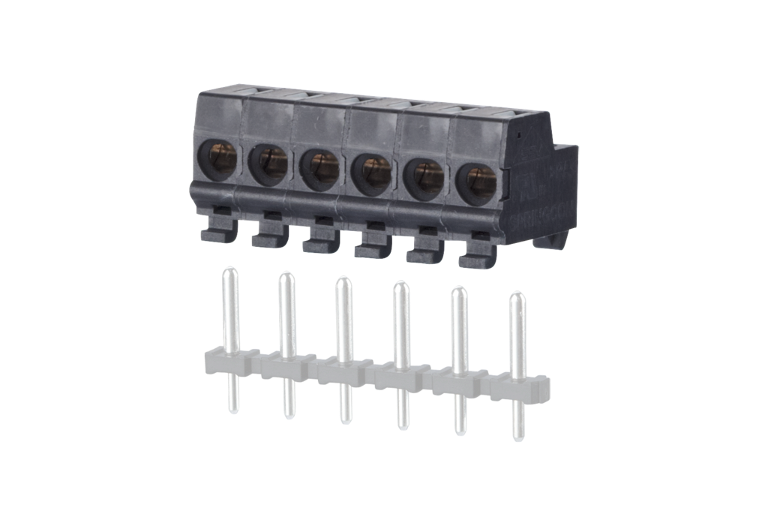

Counterpart from
Part number
Downloads
- RoHS Certificate
- REACh Statement
- 3D-Data (3D_PM02502VBHC) - Registration required -
- 3D-Data (3D_PM02503VBHC) - Registration required -
- 3D-Data (3D_PM02504VBHC) - Registration required -
- 3D-Data (3D_PM02505VBHC) - Registration required -
- 3D-Data (3D_PM02506VBHC) - Registration required -
- 3D-Data (3D_PM02507VBHC) - Registration required -
- 3D-Data (3D_PM02508VBHC) - Registration required -
- 3D-Data (3D_PM02509VBHC) - Registration required -
- 3D-Data (3D_PM02510VBHC) - Registration required -
- 3D-Data (3D_PM02511VBHC) - Registration required -
- 3D-Data (3D_PM02512VBHC) - Registration required -
- Data sheet
Sample order
Standard poles sizes
Additional Information
