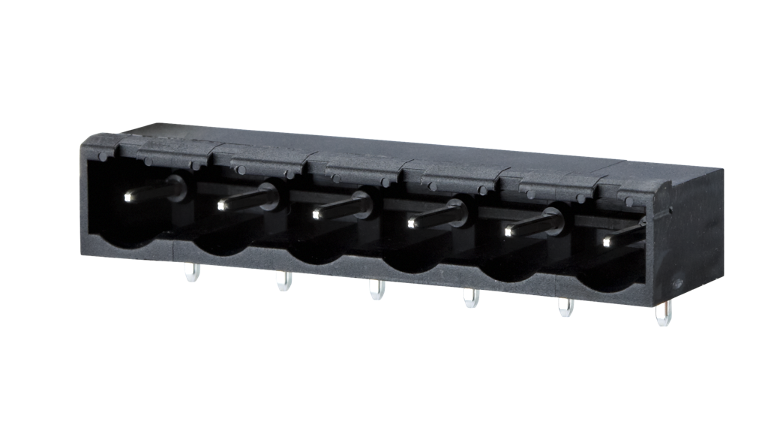

PT118xxHBBC Type 266
Description
- pin header, solderable
- centerline 7.62 mm, direction of connection 90°
- closed ends
- color black
- codeable
Technical Data
General Data
3.45 mm
2
12
CTI 600
6.6 mm
IP00
Material
PA66
V0
CuFe
Ni + Ag
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Accessories
Counterpart from
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
Standard pole sizes from stock
Pole sizes only available on demand
Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
Downloads
- REACh Statement
- 3D-Data (3D-Data PT11812HBBC_31266112) - Registration required -
- 3D-Data (3D-Data PT11811HBBC_31266111) - Registration required -
- 3D-Data (3D-Data PT11810HBBC_31266110) - Registration required -
- 3D-Data (3D-Data PT11809HBBC_31266109) - Registration required -
- 3D-Data (3D-Data PT11808HBBC_31266108) - Registration required -
- 3D-Data (3D-Data PT11807HBBC_31266107) - Registration required -
- 3D-Data (3D-Data PT11806HBBC_31266106) - Registration required -
- 3D-Data (3D-Data PT11805HBBC_31266105) - Registration required -
- 3D-Data (3D-Data PT11804HBBC_31266104) - Registration required -
- 3D-Data (3D-Data PT11803HBBC_31266103) - Registration required -
- 3D-Data (3D-Data PT11802HBBC_31266102) - Registration required -
- Data sheet
