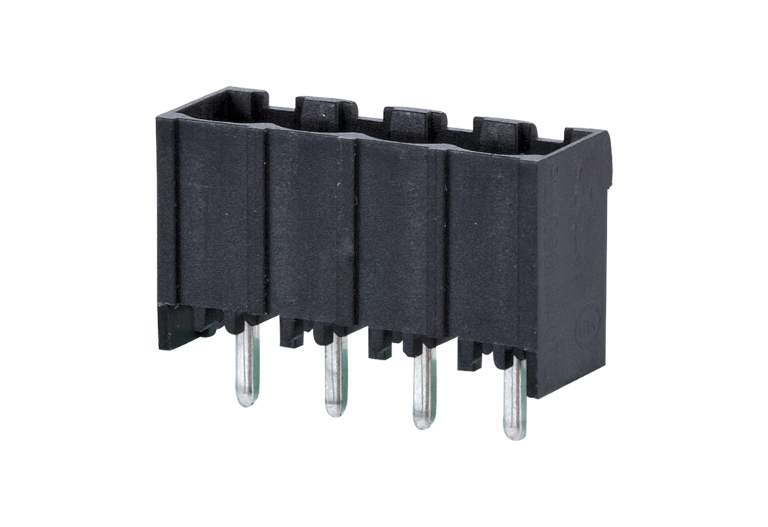

PR065xxVBBN Type 177
Description
- pin header, THR solderable
- centerline 5.00 mm, direction of connection vertical 0°
- closed ends
- color black
- Tape & Reel packaging possible
- codeable
Technical Data
General Data
3.25 mm
2
12
CTI 600
4 mm
IP00
Material
PA66/6T
V0
CuMg
Cu + Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Accessories

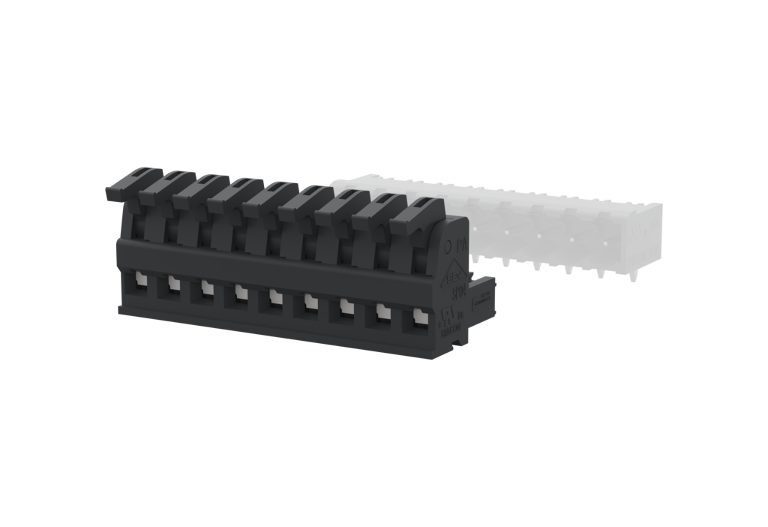

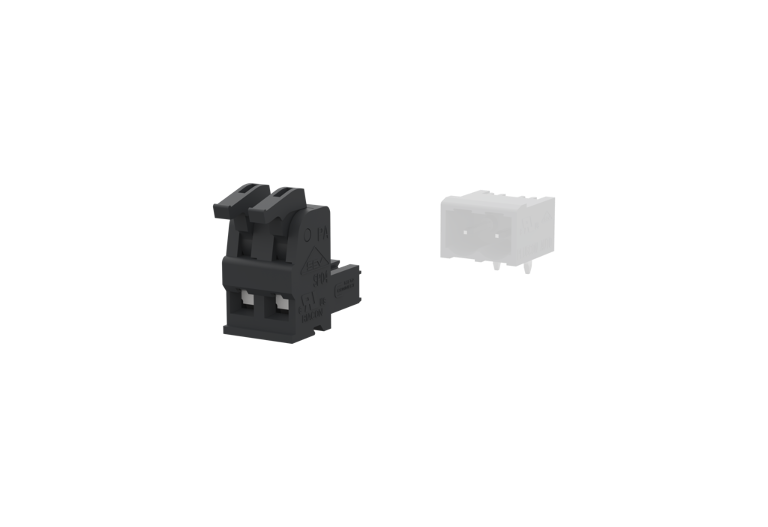

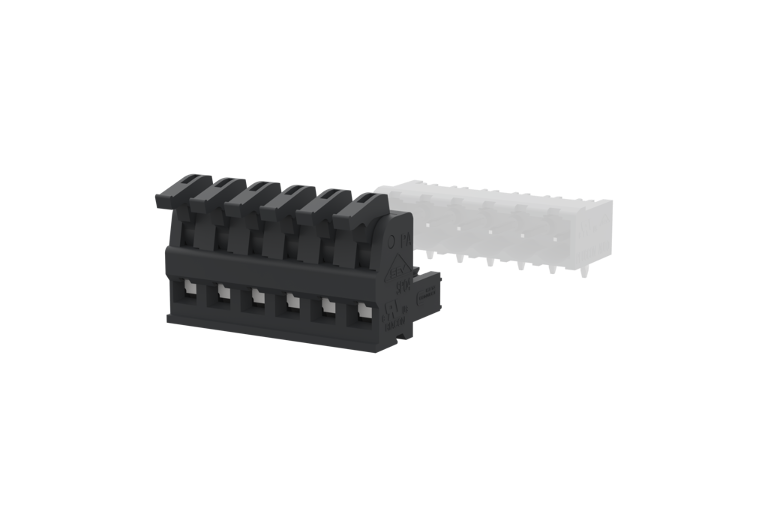

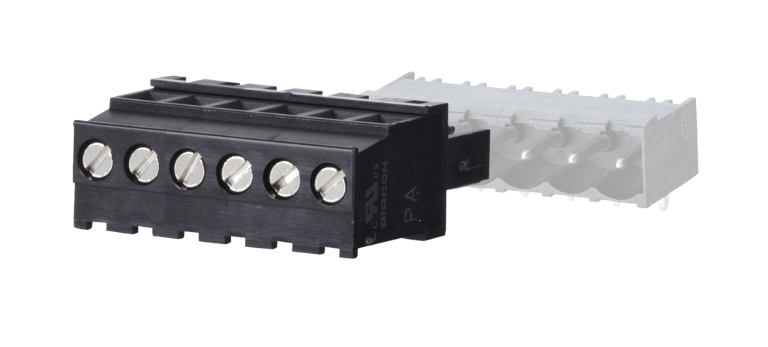

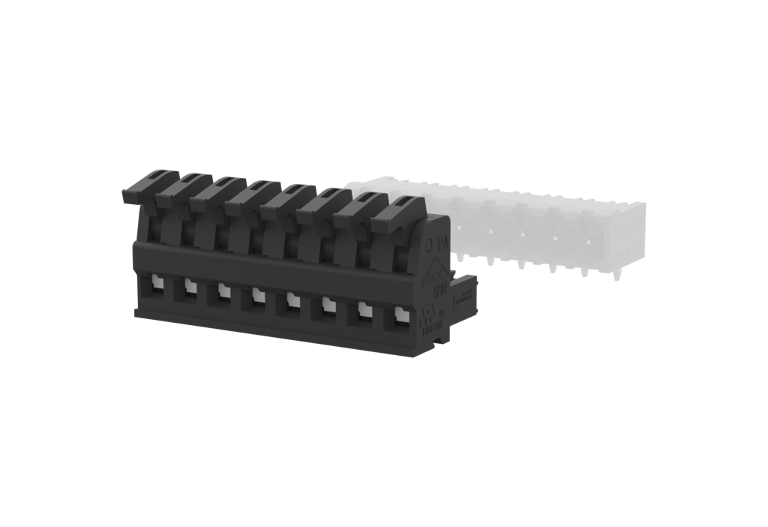

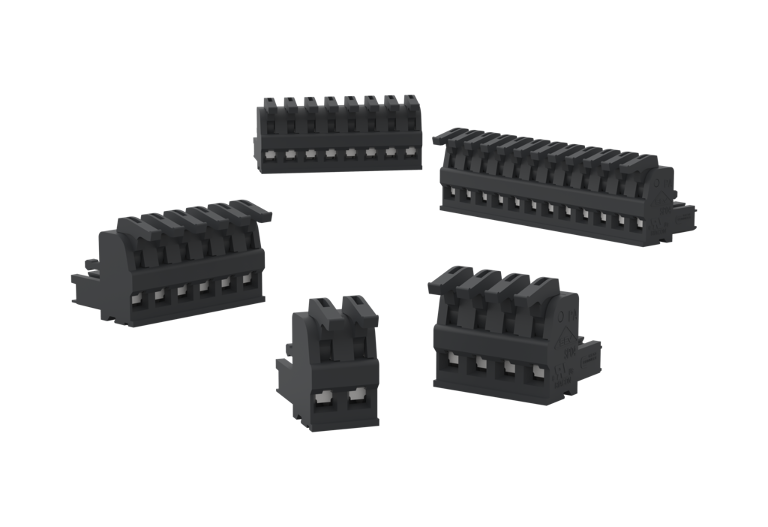

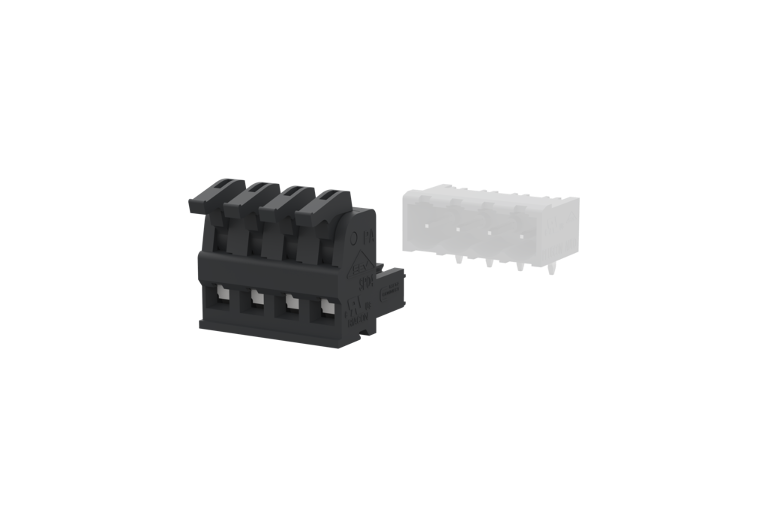

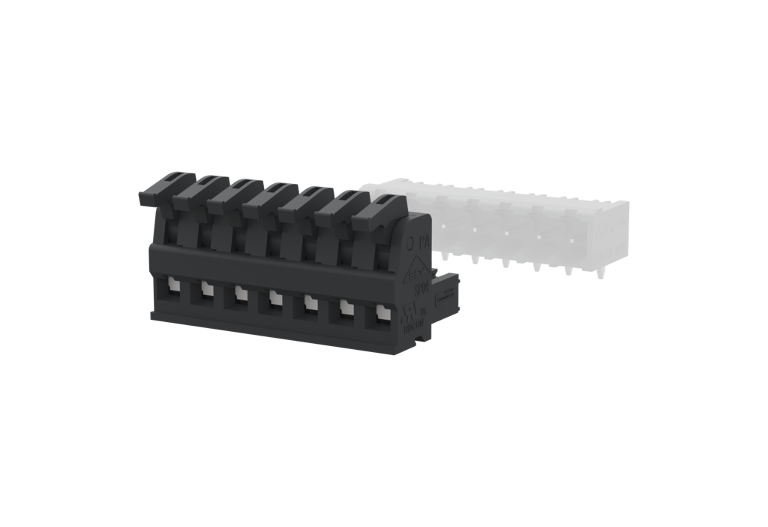

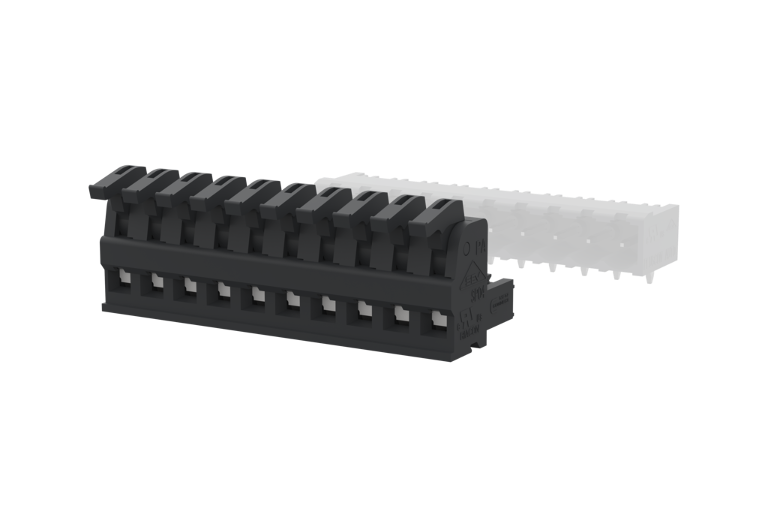

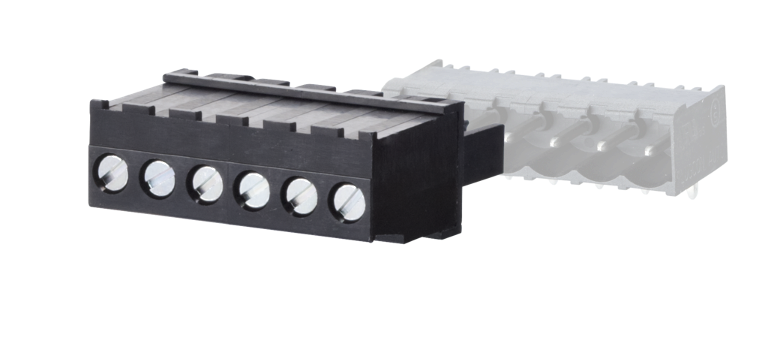

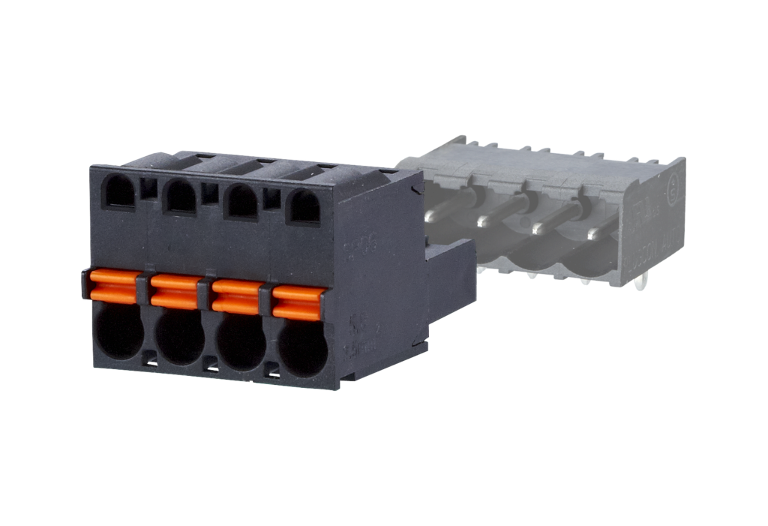

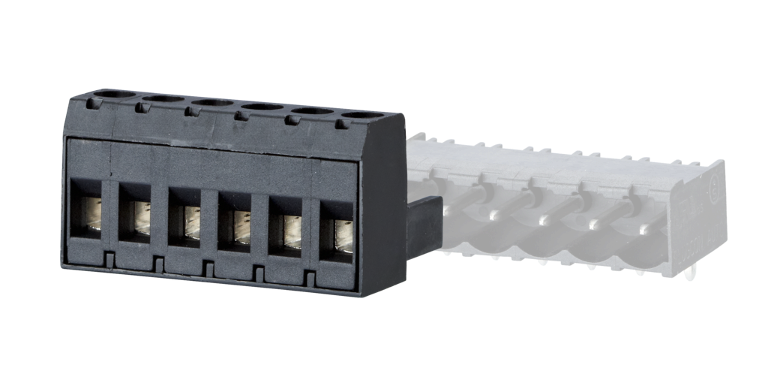

Counterpart from
Part number
Downloads
- RoHS Certificate
- REACh Statement
- 3D-Data (3D_31177102) - Registration required -
- 3D-Data (3D_31177103) - Registration required -
- 3D-Data (3D_31177104) - Registration required -
- 3D-Data (3D_31177105) - Registration required -
- 3D-Data (3D_31177106) - Registration required -
- 3D-Data (3D_31177107) - Registration required -
- 3D-Data (3D_31177108) - Registration required -
- 3D-Data (3D_31177109) - Registration required -
- 3D-Data (3D_31177110) - Registration required -
- 3D-Data (3D_31177112) - Registration required -
- Data sheet
Sample order
Standard poles sizes
Additional Information
