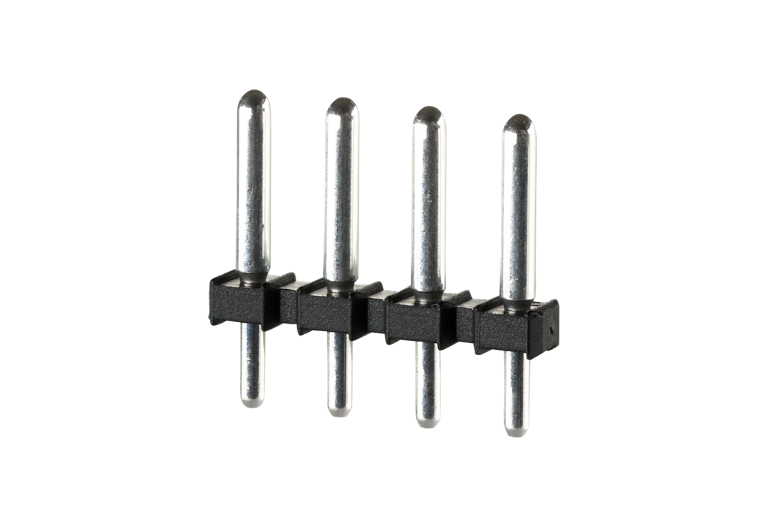

PR013xxVBHC Type 024

Description

Technical Data

General Data

Solder pin length:

3.2 mm

min. number of poles:

max. number of poles:

Insulating material class:

CTI 400

clearance/creepage dist.:

2.5 mm

Protection category:

IP00

Material

insulating material:

flammability class:

contact pin material:

CuZnPb

contact pin surface:

Ni + Ag

Glow-Wire Flammability GWFI:

850 °C acc. to IEC 60695-2-12

Glow-Wire Flammability GWIT:

775 °C acc. to IEC 60695-2-13

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

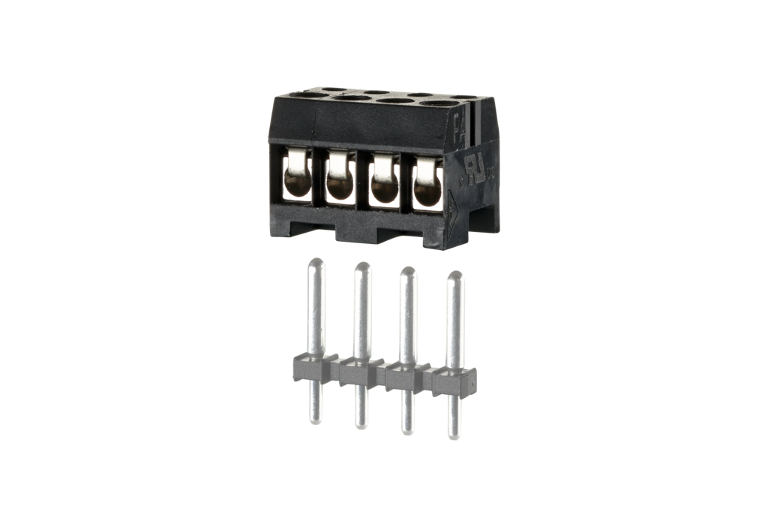

Counterpart from

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

310241

02 03 04 05 06 08 12 20 24

Standard pole sizes
