ATW039

Description

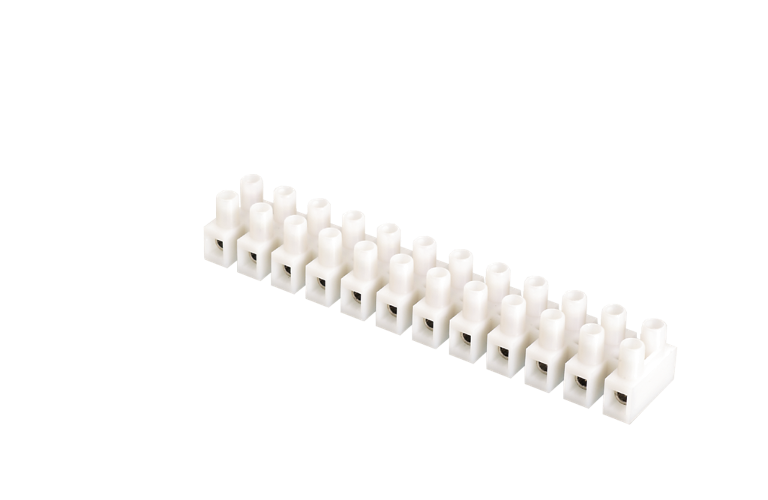

Tubular screw terminal block
centerline 10.00 mm, direction of connection vertical 0°
color natural white
1.2 mm raised base
horizontal wire entry

Technical Data

General Data

Tightening torque SEV:

0.5 Nm

min. number of poles:

max. number of poles:

Max. insul. strip length:

7.3 mm

Connection Data

Approbationen csa Spalte1:

V / A / AWG

Approbationen csa Spalte2:

400 / 20 / 18 - 14

Approbationen SEV-Sich Spalte1:

2.5 mm²

Approbationen SEV-Sich Spalte2:

400 V / 24 A

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

ATW039

02 03 04 05 06 07 08 09 10 11 12

Standard pole sizes

Pole sizes available within 4-6 weeks

Pole sizes only available on demand
