SM99SxxVBNN / SM99SxxVWNN
Description
- ethernet-capable spring clamp terminal block, SMT solderable
- direction of connection 90°
- fittable without loss of poles
- Tape & Reel packaging

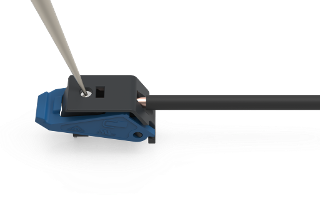

- finger push-button
- test point and wire connection indicator
- Variants: black, creme white, yellow, green, red, blue, orange, gray, brown, white
Technical Data
General Data
CTI 600
1
IP20
7 mm
9 A
Connection Data
0,2 - 1,5 mm²
AWG 24 - 16
0,2 - 1,5 mm²
AWG 24 - 16
Material
PPA
V0
Spring steel
CuSn
Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Overview of variants
Description
Part number
Accessories
Sample order
Standard poles sizes
