SM99S01VWNN01G7 white
Description
- spring clamp terminal block, SMT solderable
- direction of connection 90°
- fittable without loss of poles
- color white
- Tape & Reel packaging

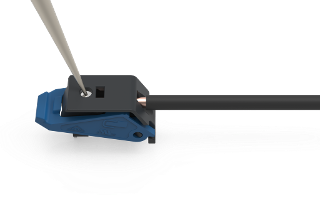

- finger push-button
- test point and wire connection indicator
- Variants: black, creme white, yellow, green, red, blue, orange, gray, brown, white
Technical Data
General Data
CTI 600
1
IP20
7 mm
9 A
Connection Data
0,2 - 1,5 mm²
AWG 24 - 16
0,2 - 1,5 mm²
AWG 24 - 16
Material
PPA
V0
Spring steel
CuSn
Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
SM99S01VWNN01G7
Standard pole sizes
Downloads
- RoHS Certificate
- Product video
- Data sheet
- Brochure (Connectivity Solutions for Building Automation from METZ CONNECT)
- Brochure (SM99 and SR99)
- REACh Statement
- 3D-Data - Registration required -
Sample order
Standard poles sizes
