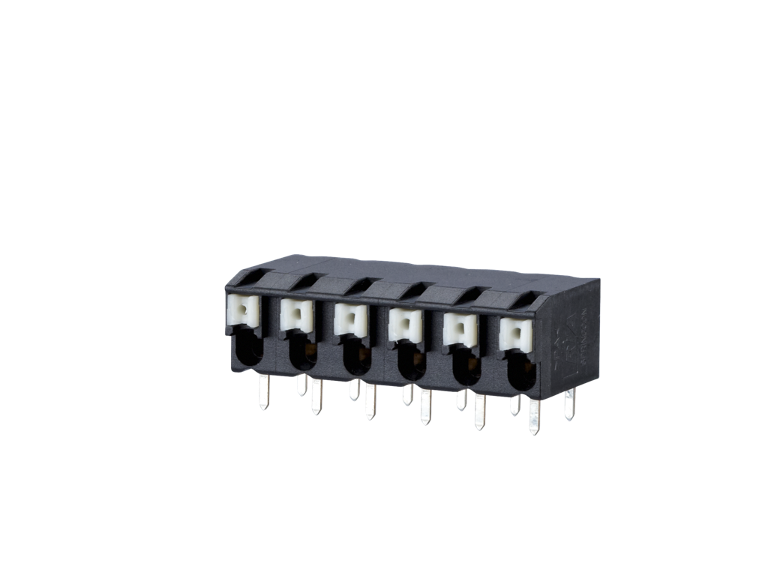

SR215xxHBNC AST225
Description
- spring clamp terminal block, THR solderable, double solder pins
- centerline 5.00 mm, direction of connection 90°
- fittable without loss of poles
- color black
- Tape & Reel packaging possible
- push-button
Technical Data
General Data
3.45 mm
2
16
CTI 600
3.4 mm
IP20
8.5 mm
13.5 A
Connection Data
0,08 - 1,5 mm²
AWG 28 - 16
0,08 - 1,5 mm²
AWG 28 - 16
Material
PA66/6T
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Downloads
- RoHS Certificate
- REACh Statement
- 3D-Data (3D_SR21503HBNC) - Registration required -
- 3D-Data (3D_SR21505HBNC) - Registration required -
- 3D-Data (3D_SR21506HBNC) - Registration required -
- 3D-Data (3D_SR21508HBNC) - Registration required -
- 3D-Data (3D_SR21509HBNC) - Registration required -
- 3D-Data (3D_SR21510HBNC) - Registration required -
- 3D-Data (3D_SR21511HBNC) - Registration required -
- 3D-Data (3D_SR21512HBNC) - Registration required -
- Data sheet
Additional Information
