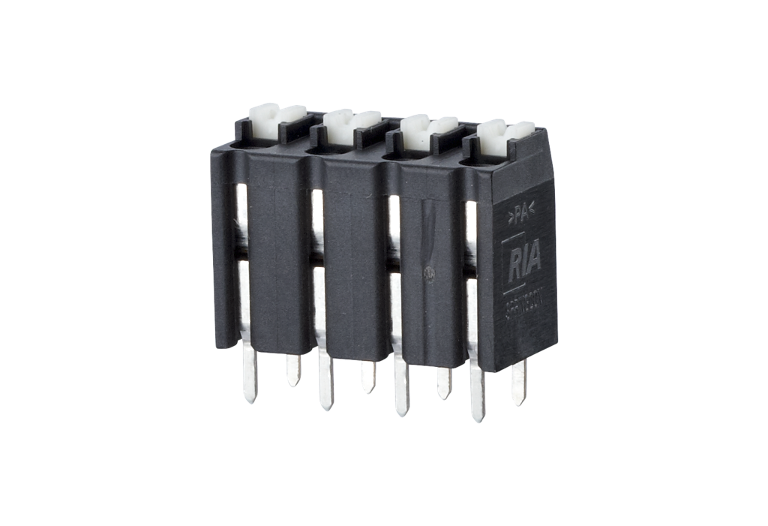

SR215xxVBNC AST215

Description

spring clamp terminal block, THR solderable, double solder pins
centerline 5.00 mm, direction of connection vertical 0°
fittable without loss of poles
color black
Tape & Reel packaging possible
push-button

Technical Data

General Data

Solder pin length:

3.5 mm

min. number of poles:

max. number of poles:

Insulating material class:

CTI 600

clearance/creepage dist.:

3.4 mm

Protection category:

IP20

Insul. strip length:

8.5 mm

Rated current:

13.5 A

Connection Data

Connection capacity (single-wire):

0,08 - 1,5 mm²

Connection capacity (single-wire):

AWG 28 - 16

Connection capacity (multi-wire):

0,08 - 1,5 mm²

Connection capacity (multi-wire):

AWG 28 - 16

Material

insulating material:

PA66/6T

flammability class:

spring material:

Spring steel

contact material:

CuSn

Contact surface:

Glow-Wire Flammability GWFI:

960 °C acc. to IEC 60695-2-12

Glow-Wire Flammability GWIT:

775 °C acc. to IEC 60695-2-13

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

AST215

02 03 04 05 06 07 08

Standard pole sizes

Pole sizes only available on demand
