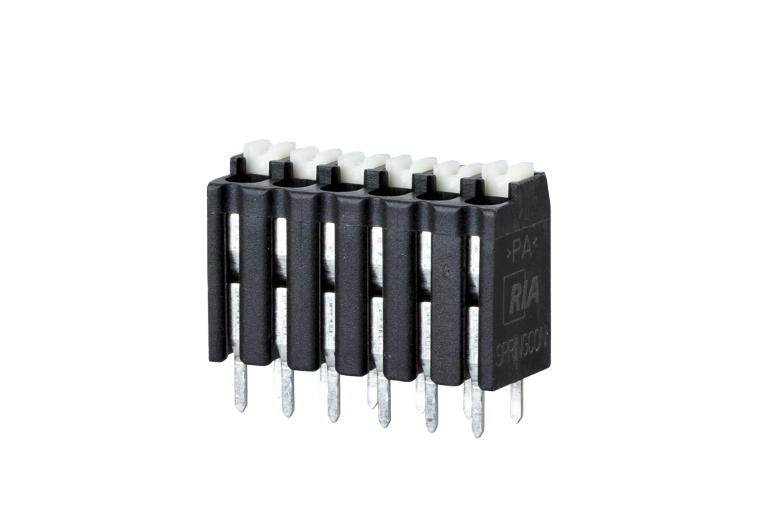

SR213xxVBNC AST213
Description
- spring clamp terminal block, THR solderable, double solder pins
- centerline 3.50 mm, direction of connection vertical 0°
- fittable without loss of poles
- color black
- Tape & Reel packaging possible
- push-button
Technical Data
General Data
3.5 mm
2
12
CTI 600
2 mm
IP20
8.5 mm
13.5 A
Connection Data
0,08 - 1,5 mm²
AWG 28 - 16
0,08 - 1,5 mm²
AWG 28 - 16
Material
PA66/6T
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
