ST185xxLDNN AST185

Description

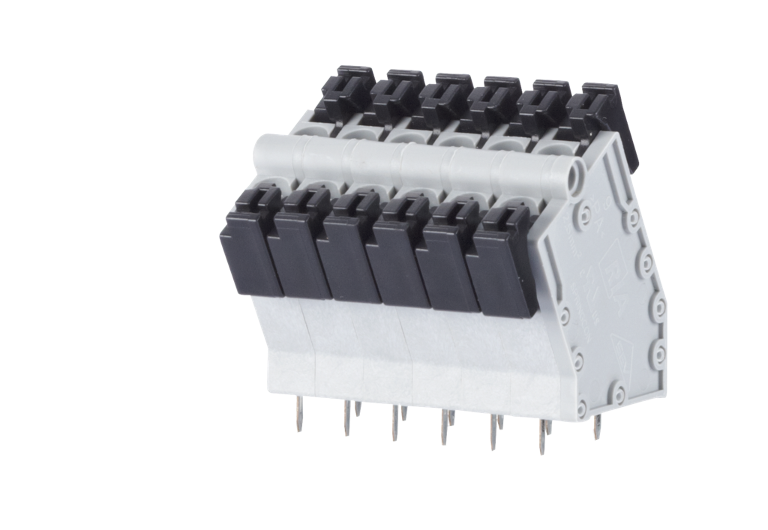

spring clamp terminal block, solderable, double solder pins
centerline 5.00 mm, direction of connection 60°
color gray
push-button, double solder pins

Technical Data

General Data

Solder pin length:

4 mm

min. number of poles:

max. number of poles:

Insulating material class:

CTI 600

clearance/creepage dist.:

4.5 mm

Protection category:

IP20

Insul. strip length:

15 mm

Rated current:

15 A

Connection Data

Connection capacity (single-wire):

0,08 - 2,5 mm²

Connection capacity (single-wire):

AWG 28 - 12

Connection capacity (multi-wire):

0,08 - 2,5 mm²

Connection capacity (multi-wire):

AWG 28 - 12

Material

insulating material:

PA66

flammability class:

spring material:

Spring steel

contact material:

CuSn

Contact surface:

Glow-Wire Flammability GWFI:

960 °C acc. to IEC 60695-2-12

Glow-Wire Flammability GWIT:

775 °C acc. to IEC 60695-2-13

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C
