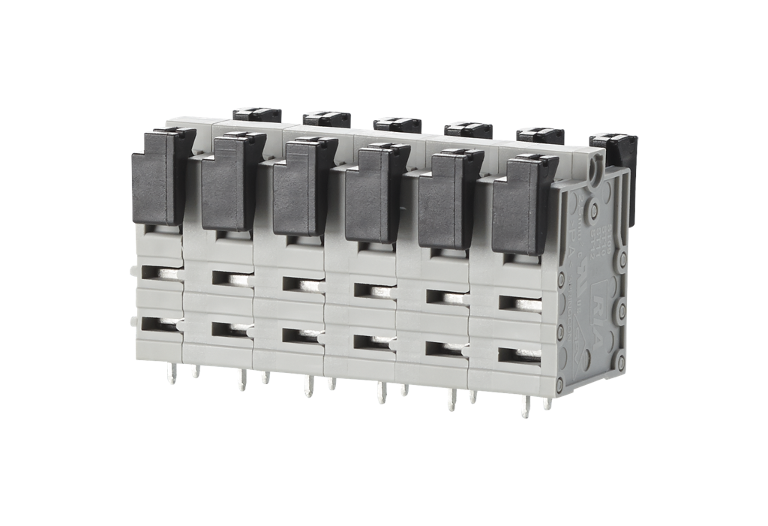

ST128xxVDNN AST128
Description
- spring clamp terminal block, solderable, double solder pins
- centerline 7.62 mm, direction of connection vertical 0°
- color gray
- finger push-button, double solder pins
Technical Data
General Data
3.4 mm
2
24
CTI 600
7.12 mm
IP20
15 mm
15 A
Connection Data
0,2 - 2,5 mm²
AWG 28 - 12
0,2 - 2,5 mm²
AWG 28 - 12
Material
PA66
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Downloads
- RoHS Certificate
- REACh Statement
- 3D-Data (3D_ST12802VDNN) - Registration required -
- 3D-Data (3D_ST12803VDNN) - Registration required -
- 3D-Data (3D_ST12804VDNN) - Registration required -
- 3D-Data (3D_ST12805VDNN) - Registration required -
- 3D-Data (3D_ST12806VDNN) - Registration required -
- 3D-Data (3D_ST12807VDNN) - Registration required -
- 3D-Data (3D_ST12808VDNN) - Registration required -
- 3D-Data (3D_ST12809VDNN) - Registration required -
- 3D-Data (3D_ST12810VDNN) - Registration required -
- 3D-Data (3D_ST12811VDNN) - Registration required -
- 3D-Data (3D_ST12812VDNN) - Registration required -
- 3D-Data (3D_ST12813VDNN) - Registration required -
- Data sheet
Additional Information
