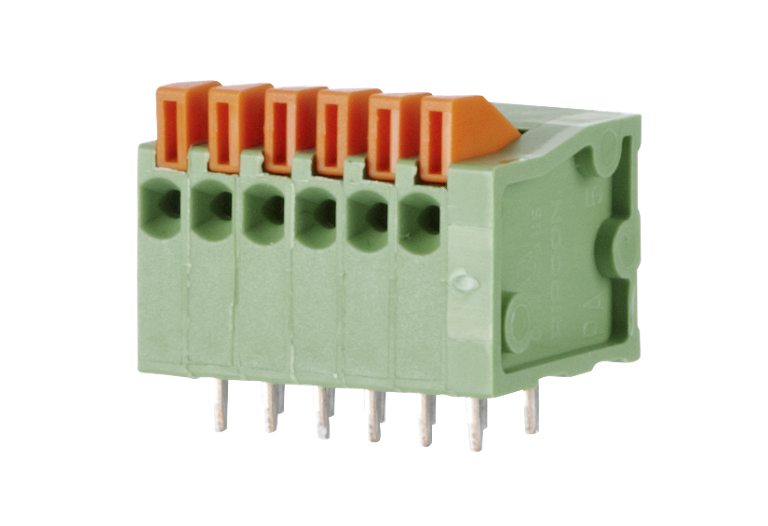

ST072xxHGNN AST072
Description
- spring clamp terminal block, solderable, double solder pins
- centerline 2.54 mm, direction of connection 90°
- color green
- push-button
Technical Data
General Data
3.2 mm
2
24
CTI 600
2 mm
IP20
10 mm
6 A
Connection Data
0,2 - 0,5 mm²
AWG 26 - 20
0,2 - 0,5 mm²
AWG 26 - 20
Material
PA66
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Downloads
- RoHS Certificate
- REACh Statement
- 3D-Data (3D_AST0720206) - Registration required -
- 3D-Data (3D_AST0720306) - Registration required -
- 3D-Data (3D_AST0720406) - Registration required -
- 3D-Data (3D_AST0720506) - Registration required -
- 3D-Data (3D_AST0720606) - Registration required -
- 3D-Data (3D_AST0720806) - Registration required -
- 3D-Data (3D_AST0721006) - Registration required -
- 3D-Data (3D_AST0721206) - Registration required -
- 3D-Data (3D_AST0721606) - Registration required -
- Data sheet
