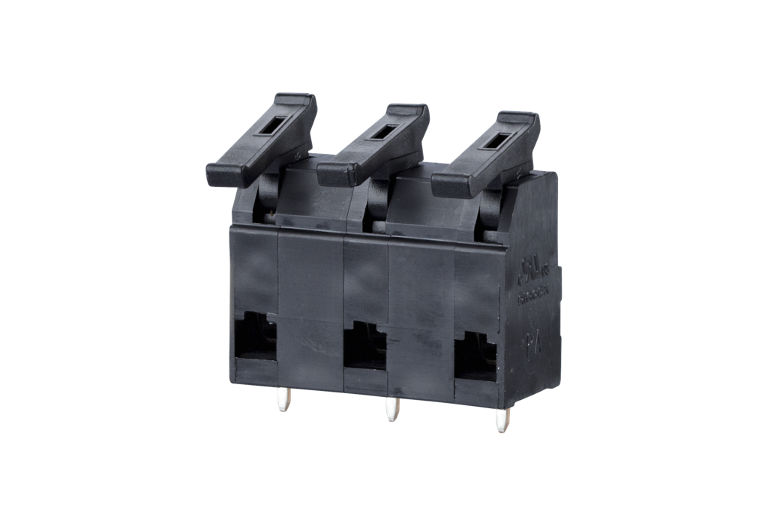

ST059xxHBNC AST059
Description
- spring clamp terminal block, solderable
- centerline 10.00 mm, direction of connection 90°
- fittable without loss of poles
- color black
- eccentric lever
Technical Data
General Data
3.1 mm
2
12
CTI 600
9 mm
IP20
6 mm
25 A
Connection Data
0,08 - 2,5 mm²
AWG 28 - 12
0,08 - 2,5 mm²
AWG 28 - 12
Material
PA
V0
Spring steel
CuSn
Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
