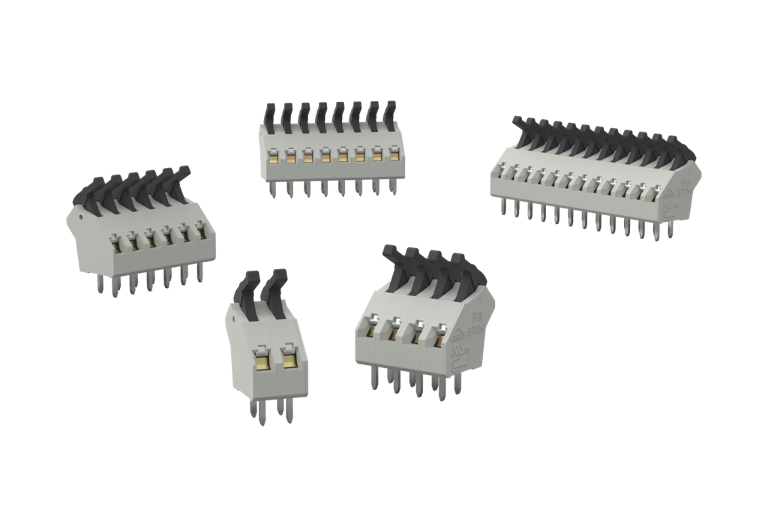

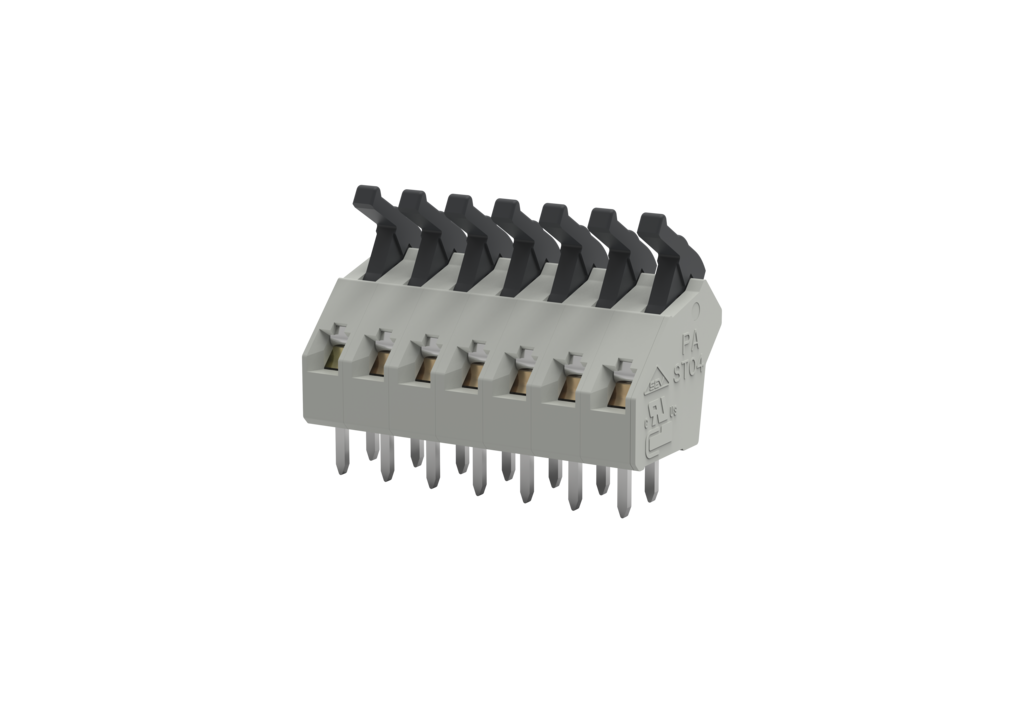

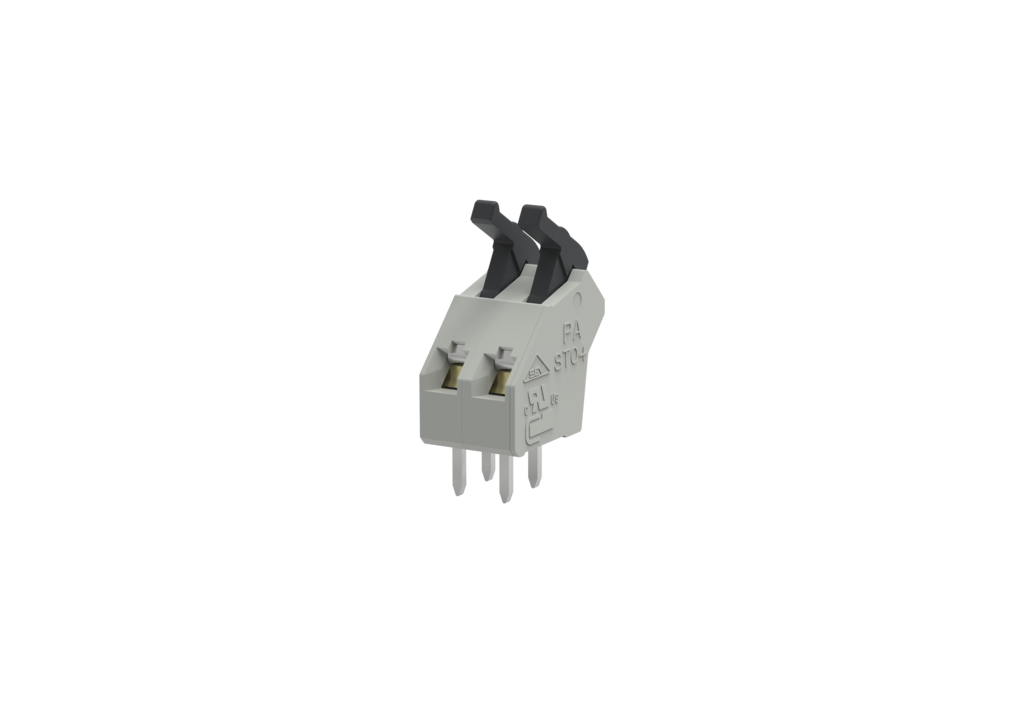

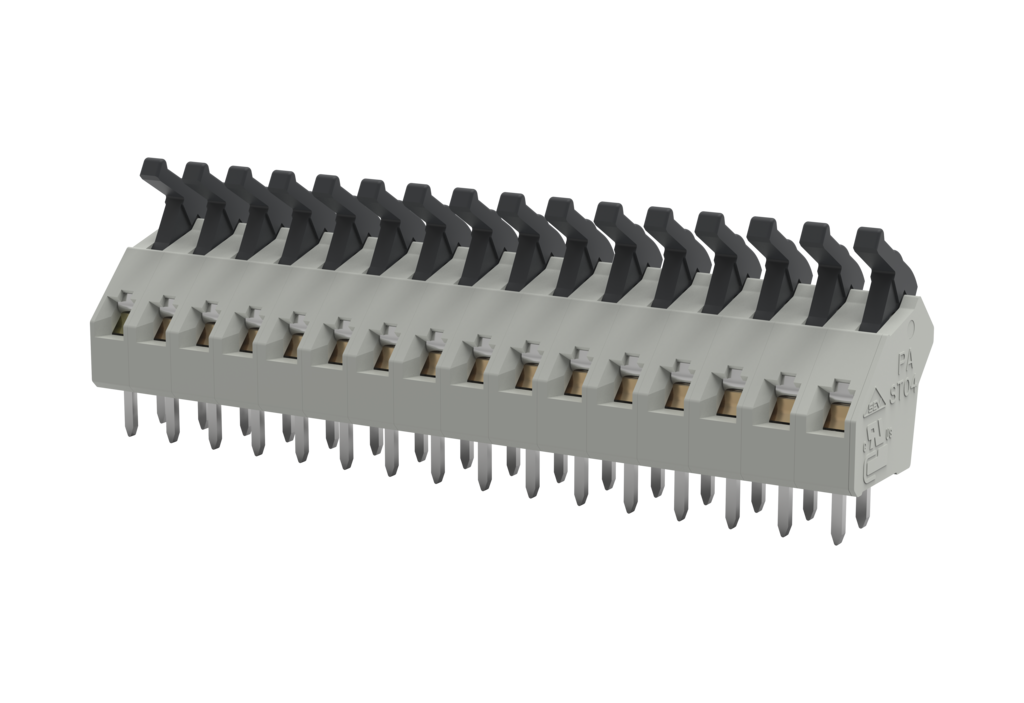

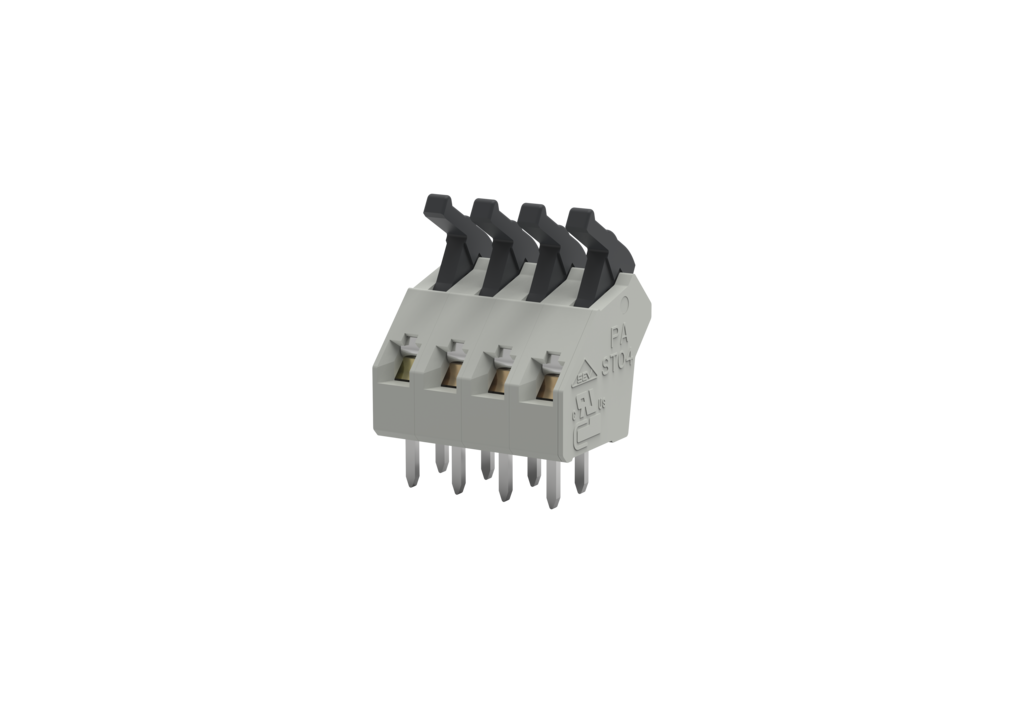

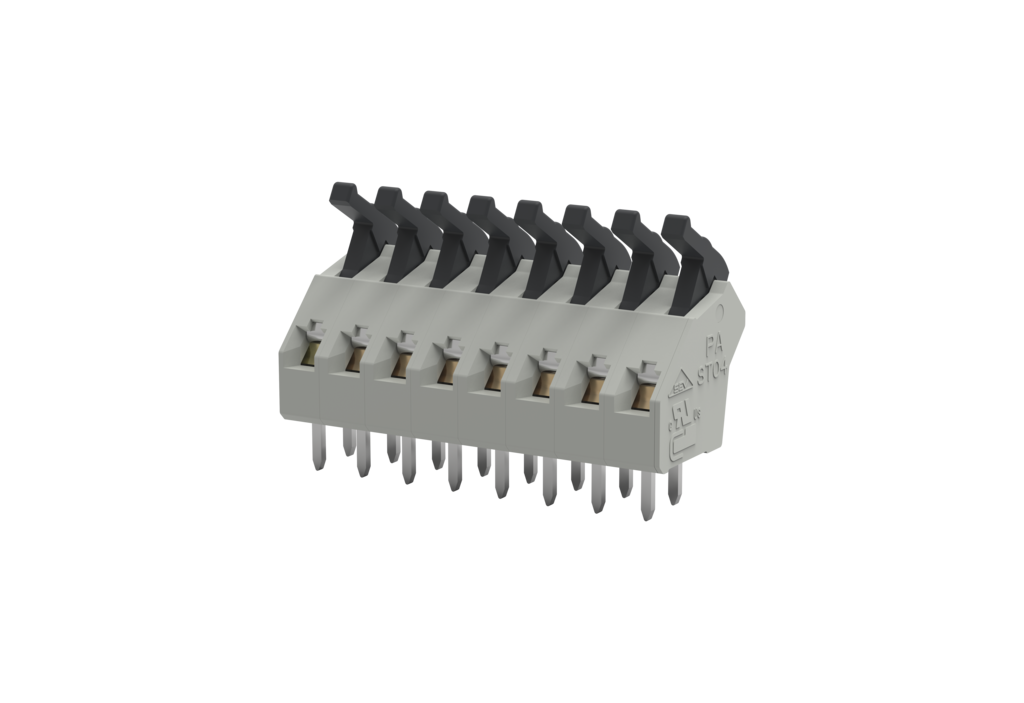

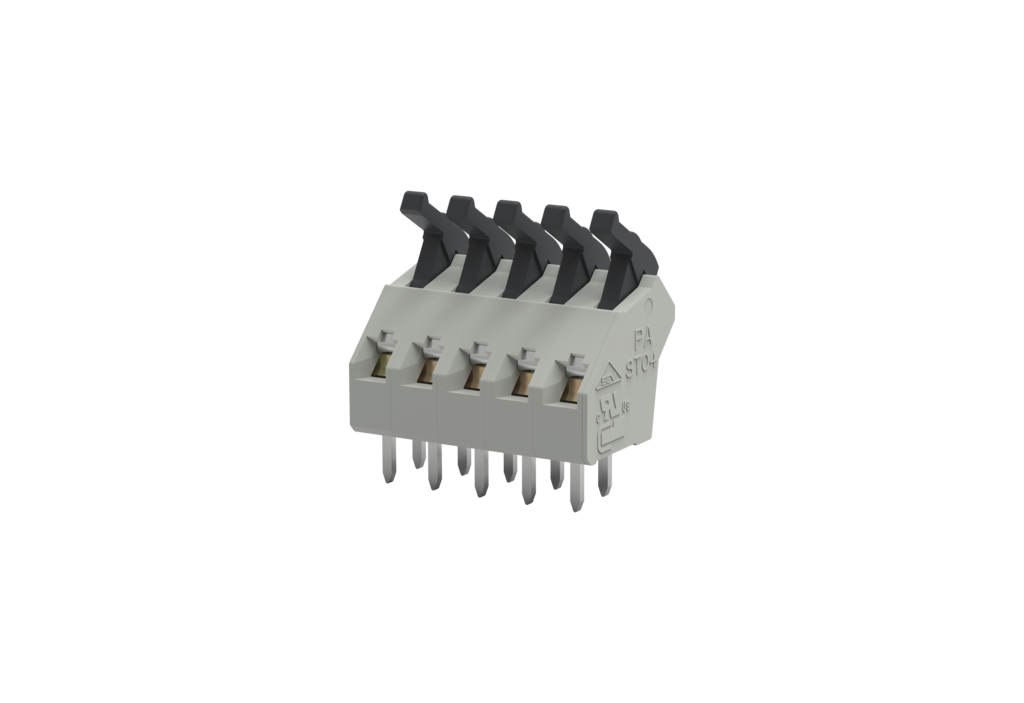

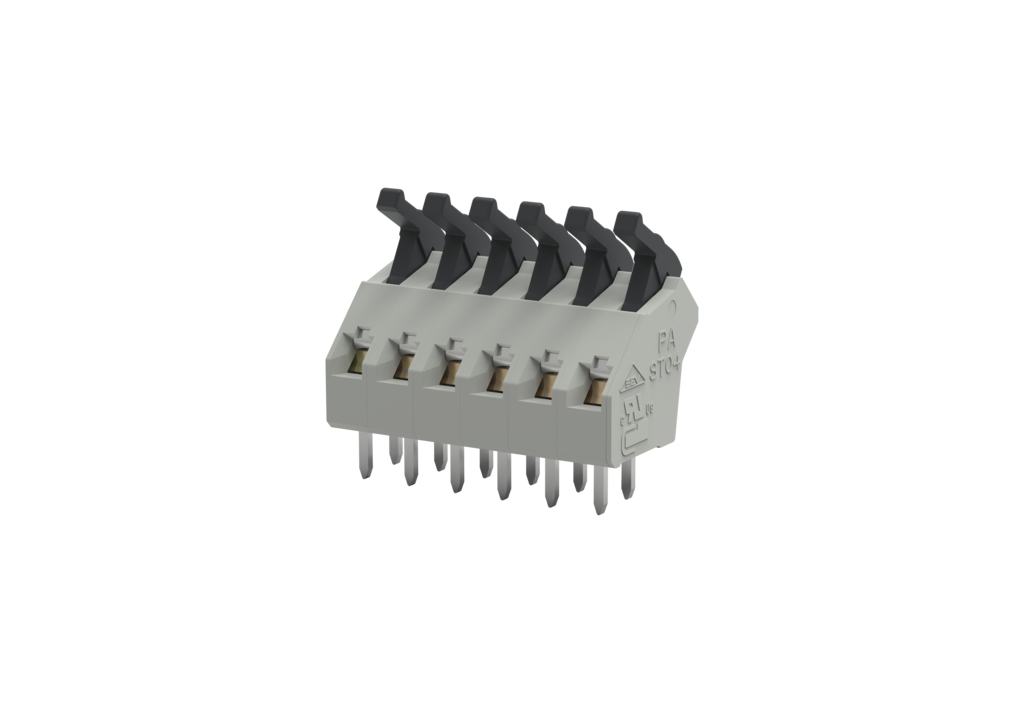

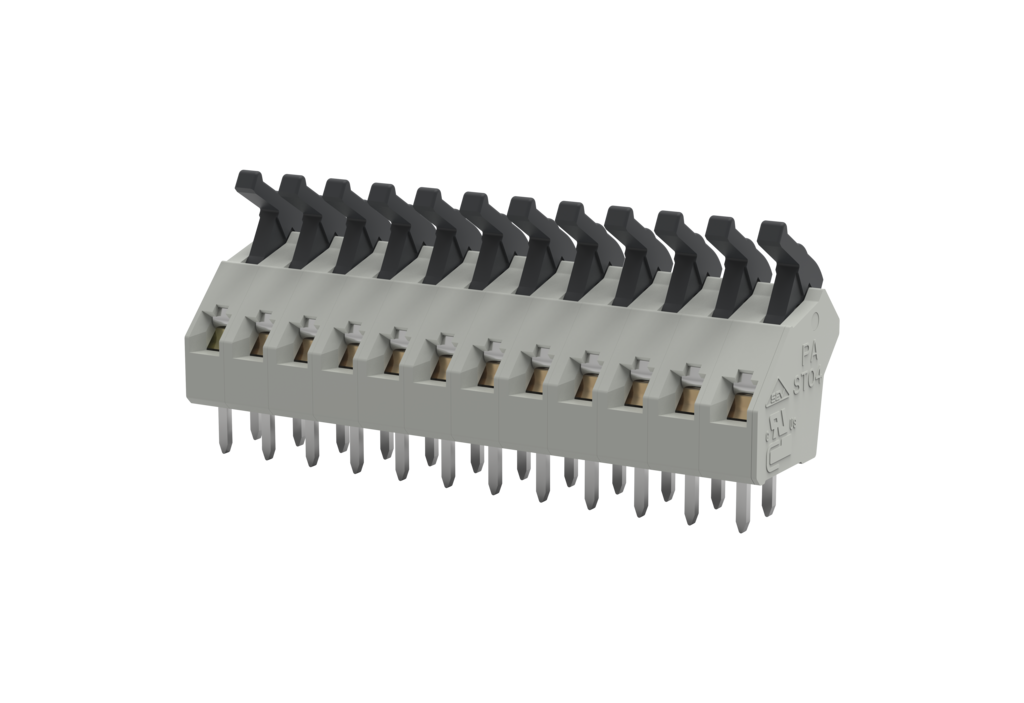

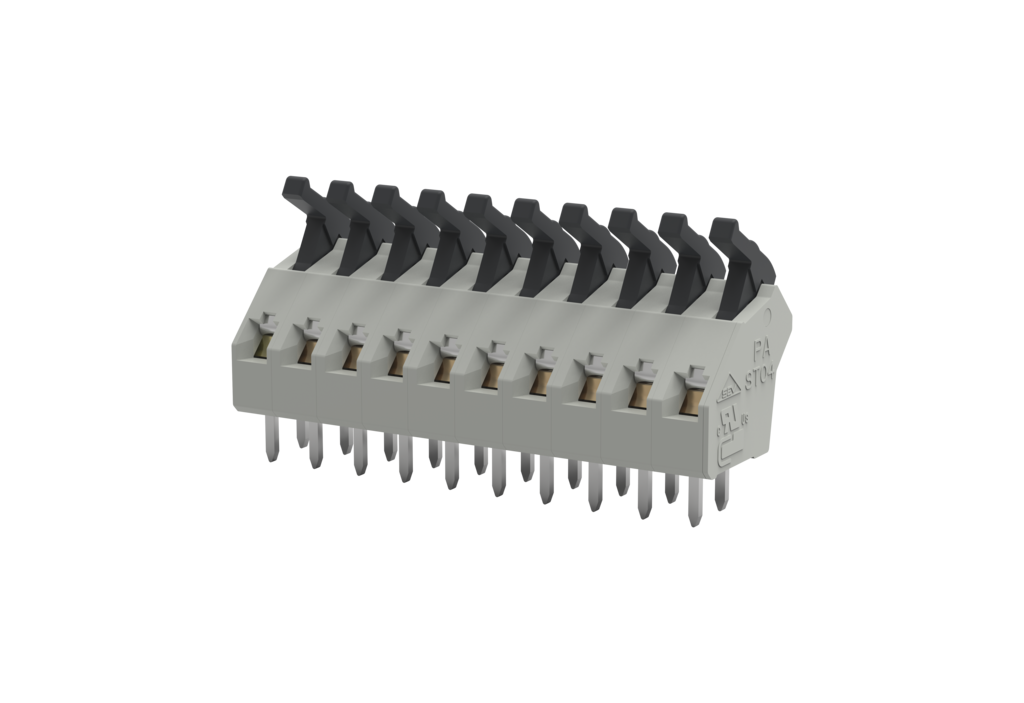

ST045xxDDNC AST045
Description
- spring clamp terminal block, solderable, double solder pins
- centerline 5.00 mm, direction of connection 45°
- fittable without loss of poles
- color gray
- eccentric lever
Technical Data
General Data
3.5 mm
2
24
CTI 400
4 mm
IP20
6 mm
12 A
Connection Data
0,2 - 1,5 mm²
AWG 28 - 16
0,2 - 1,5 mm²
AWG 28 - 16
Material
PA
V0
Spring steel
CuZn
Ni + Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
