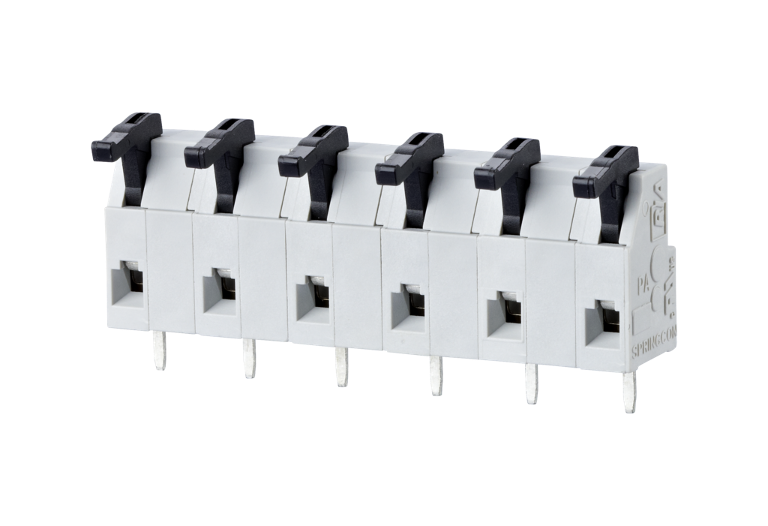

ST029xxHDNC AST029

908433

Description

spring clamp terminal block, solderable
centerline 10.00 mm, direction of connection 90°
fittable without loss of poles
color gray

logo_culus

logo_sev

Technical Data

General Data

Solder pin length:

5 mm

min. number of poles:

2

max. number of poles:

12

Insulating material class:

CTI 600

clearance/creepage dist.:

9 mm

Protection category:

IP20

Insul. strip length:

6 mm

Rated current:

15 A

Connection Data

Connection capacity (single-wire):

0,2 - 2,0 mm²

Connection capacity (single-wire):

AWG 28 - 14

Connection capacity (multi-wire):

0,2 - 2,0 mm²

Connection capacity (multi-wire):

AWG 28 - 14

Material

insulating material:

PA

flammability class:

V0

spring material:

Spring steel

contact material:

CuSn

Contact surface:

Ni + Sn

Glow-Wire Flammability GWFI:

850 °C acc. to IEC 60695-2-12

Glow-Wire Flammability GWIT:

-

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

AST029

04

03 06

Standard pole sizes

Downloads

Find contact person

Inquiry

Sample order

Standard poles sizes

Additional Information

Product family Spring clamp terminal blocks
