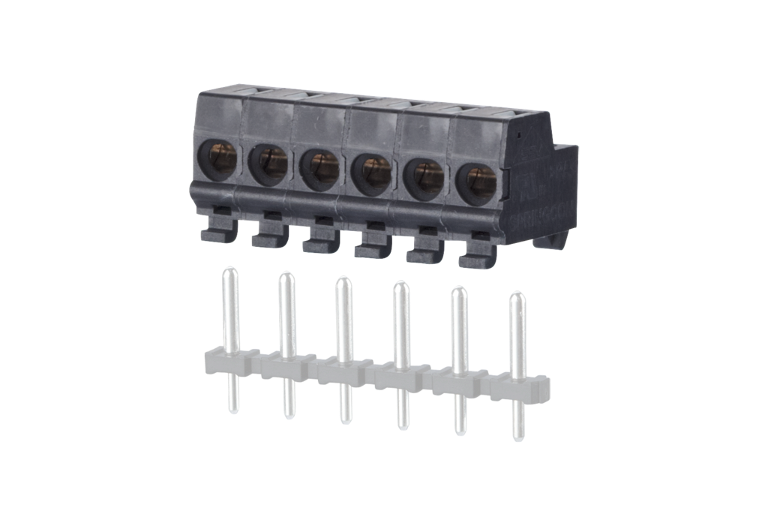

SP155xxHBNC ASP155
Description
- spring clamp terminal block, pluggable
- centerline 5.00 mm, direction of connection 90°
- fittable without loss of poles
- color black

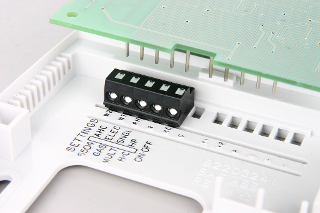

- push-button,wire entry perpendicular or parallel to plug direction, three plugging directions, clip system for mounting into a housing
Technical Data
General Data
2
12
CTI 600
3.2 mm
IP20
7 mm
13.5 A
Connection Data
0,08 - 1,5 mm²
AWG 28 - 16
0,08 - 1,5 mm²
AWG 28 - 16
Material
PA66
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
