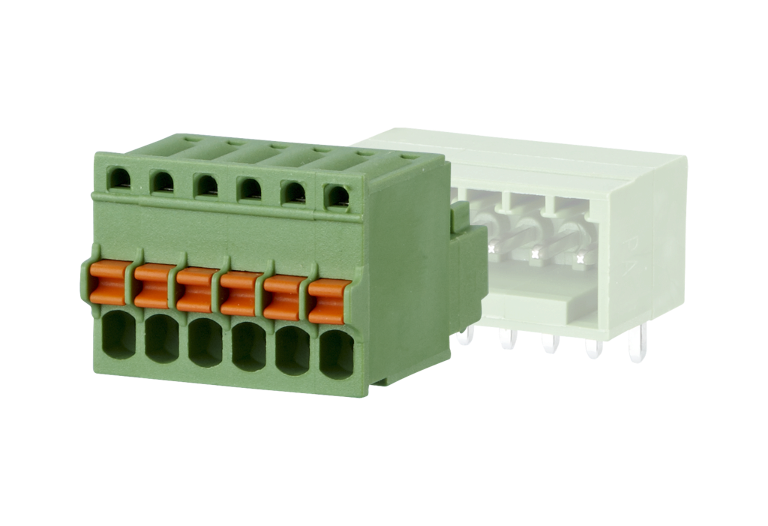

SP051xxVGNN ASP051
Description
- spring clamp terminal block, pluggable
- centerline 2.50 mm, direction of connection vertical 0°
- color green
- push-button, wire entry uncodeable side parallel to plug direction
Technical Data
General Data
2
12
CTI 600
1.7 mm
IP20
8 mm
4 A
Connection Data
0,08 - 0,5 mm²
AWG 28 - 20
0,08 - 0,5 mm²
AWG 28 - 20
Material
PA66
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
