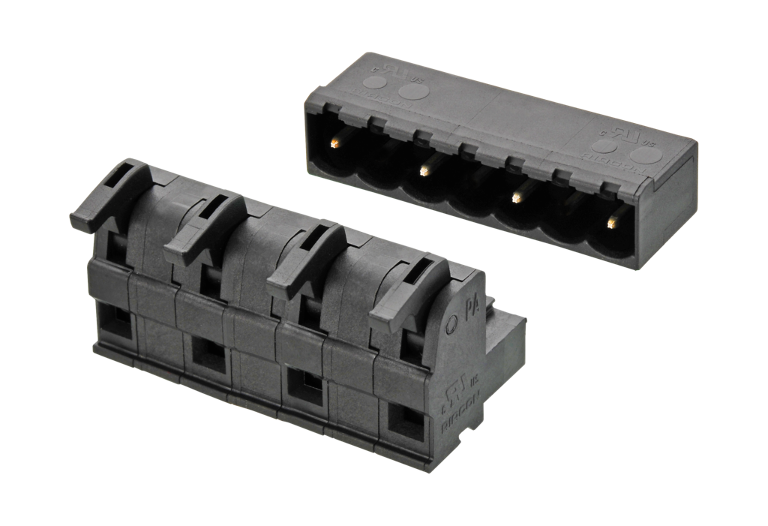

SP04AxxVBNC ASP04A
Description
- spring clamp terminal block, pluggable
- centerline 10.16 mm, direction of connection vertical 0°
- fittable without loss of poles
- color black
- eccentric lever, wire entry uncodeable side parallel to plug direction
Technical Data
General Data
2
12
CTI 400
9.16 mm
IP20
4 mm
10 A
Connection Data
0,08 - 1,5 mm²
AWG 28 - 16
0,08 - 1,5 mm²
AWG 28 - 16
Material
PA46
V0
Spring steel
CuSn
Sn
-
-
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Accessories

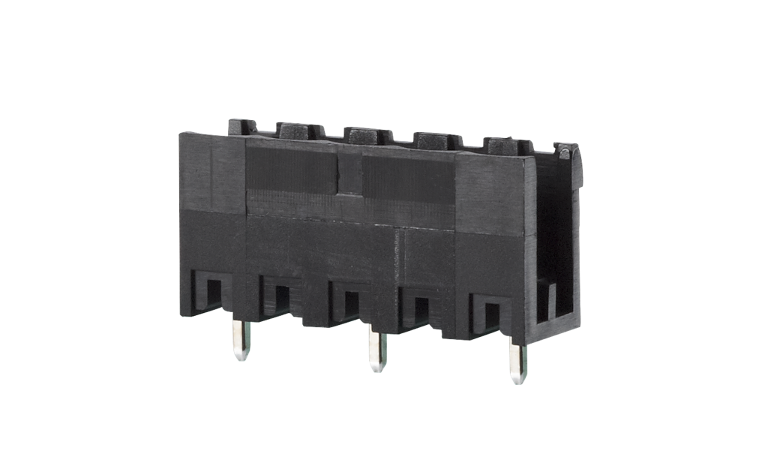

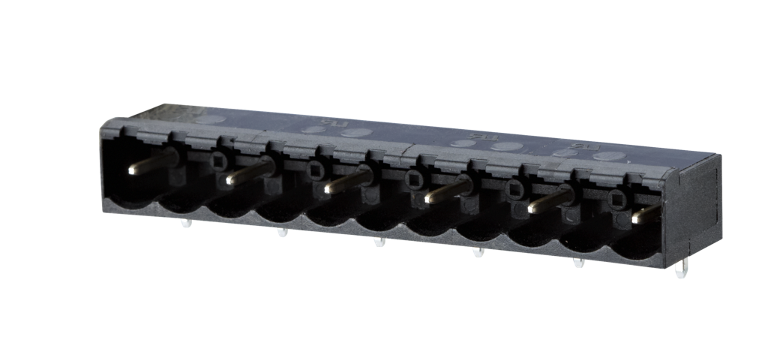

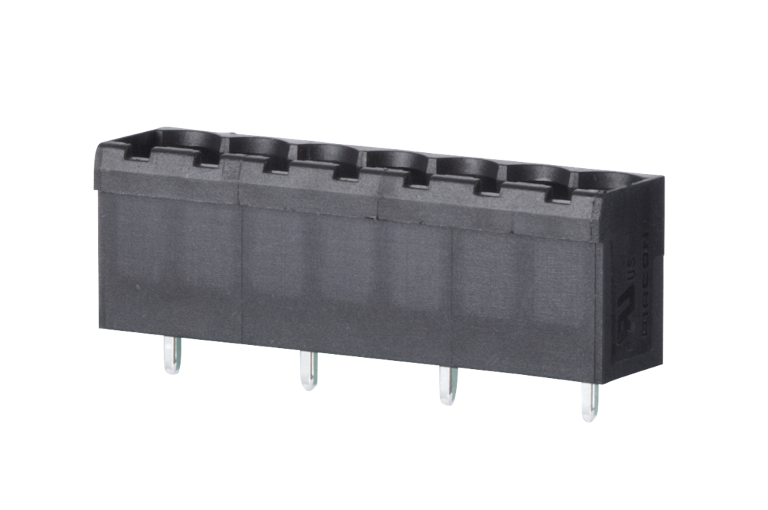

Matching counterpart
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
ASP04A
22
Pole sizes only available on demand
