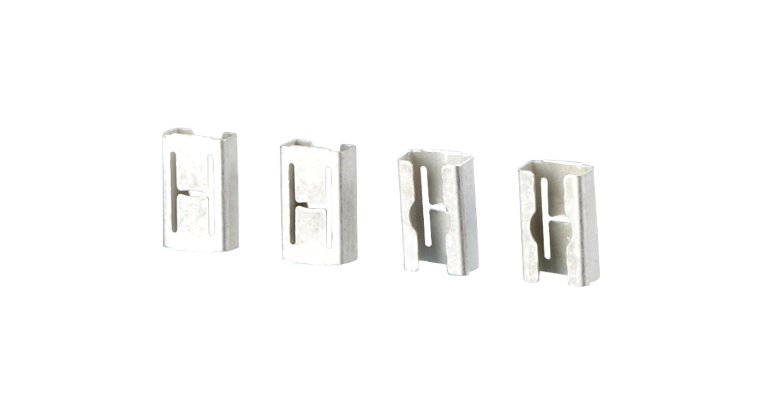

SM01W01VXNN01G1 15-inches Reel solder pad/component side

954939

Description

spring clamp terminal block, SMT solderable
one-way contact
direction of connection vertical 0°
Tape & Reel packaging

Technical Data

General Data

min. number of poles:

1

max. number of poles:

1

Protection category:

IP00

Insul. strip length:

4 mm

Rated current:

13 A

Connection Data

Connection capacity (single-wire):

0,1 - 0,75 mm²

Connection capacity (single-wire):

AWG 26 - 18

Connection capacity (multi-wire):

-

Connection capacity (multi-wire):

AWG -

Material

contact material:

CuBe

Contact surface:

Ni + Sn

Climatic Data

upper limit temperature:

150 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Part number

Part number:

ASM01W0164-1G16

EAN:

4250184183952

Downloads

Brochure (SMT - Solderable Spring Contacts)
Brochure (Connectivity Solutions for Building Automation from METZ CONNECT)
3D-Data - Registration required -
Data sheet

Find contact person

Inquiry

Additional Information

Product family Spring clamp terminal blocks
