RP025xxIBWC Type 007

978612
978627
Description
  • screw type terminal block, pluggable
  • centerline 5.00 mm, direction of connection 90°
  • wire protector, fittable without loss of poles
  • color black
  • wire entry perpendicular to plug direction, lamella
logo_culus logo_sev
Technical Data
General Data
0.5 Nm
4.4 lb-in
2
24
CTI 600
2.3 mm
IP20
6 mm
10 A
Connection Data
0,33 - 2,5 mm²
AWG 22 - 12
0,33 - 2,5 mm²
AWG 22 - 12
Material
PA66
V0
Cu + Ni
Zn Cr(VI)-frei/free
CuSn
CuZnPb
Sn
M3
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Accessories

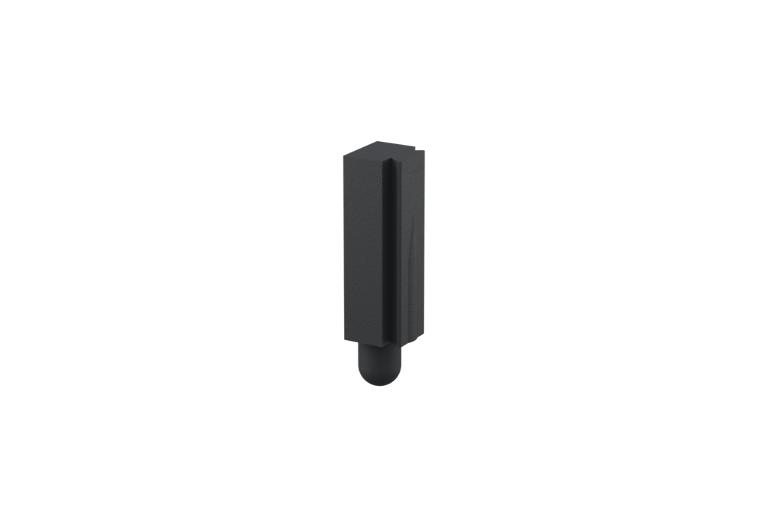

942042
Coding pin short for type 007

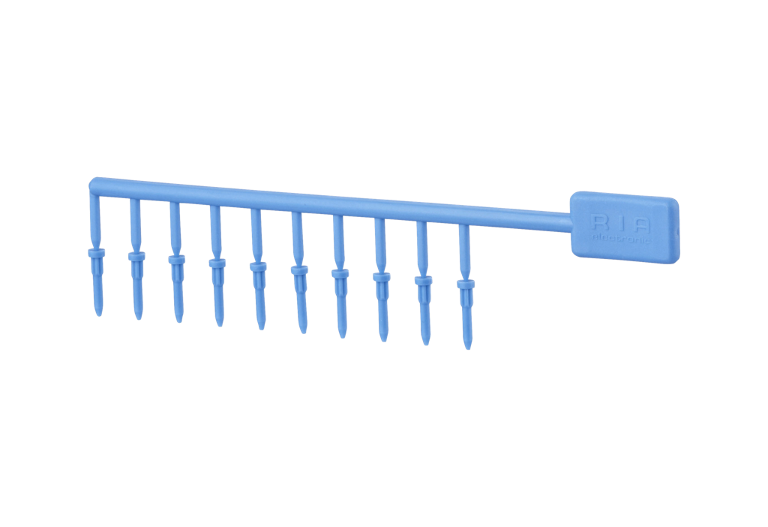

779229
Coding comb pastel blue
Matching counterpart
906358
PR015xxVBHC Type 017

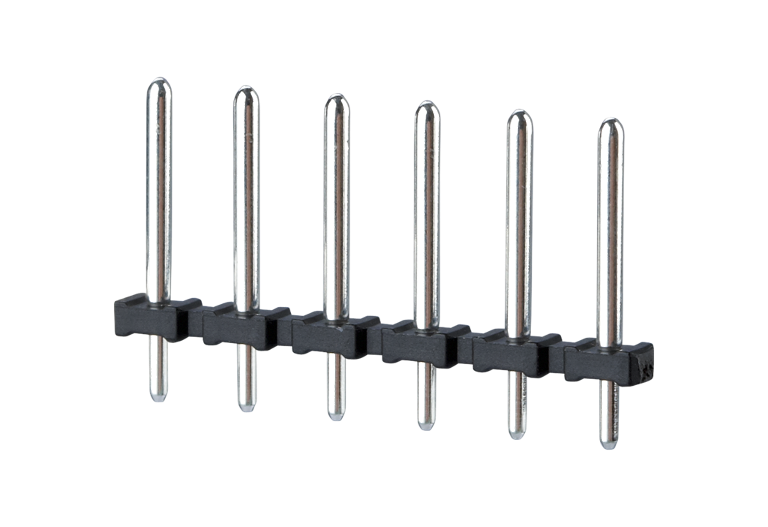

962480
PR015xxVBVC Type 027
779689
PT065xxVBEN Type 041
906362
PM035xxVBHC Type 417
Overview of variants
Description
Pole size
Availability
Part number
Accessories
RP02502IBWC (Typ 007)
2
Standard pole size
31007102
RP02503IBWC (Typ 007)
3
Standard pole size
31007103
RP02504IBWC (Typ 007)
4
Standard pole size
31007104
RP02505IBWC (Typ 007)
5
Standard pole size
31007105
RP02506IBWC (Typ 007)
6
Standard pole size
31007106
RP02507IBWC (Typ 007)
7
Standard pole size
31007107
RP02508IBWC (Typ 007)
8
Standard pole size
31007108
RP02509IBWC (Typ 007)
9
Standard pole size
31007109
RP02510IBWC (Typ 007)
10
Standard pole size
31007110
RP02511IBWC (Typ 007)
11
Standard pole size
31007111
RP02512IBWC (Typ 007)
12
Pole size available on demand
31007112
RP02513IBWC (Typ 007)
13
only available on request
31007113
RP02514IBWC (Typ 007)
14
Pole size available on demand
31007114
RP02516IBWC (Typ 007)
16
Pole size available on demand
31007116
RP02520IBWC (Typ 007)
20
Pole size available on demand
31007120
RP02522IBWC (Typ 007)
22
only available on request
31007122
RP02524IBWC (Typ 007)
24
Pole size available on demand
31007124
