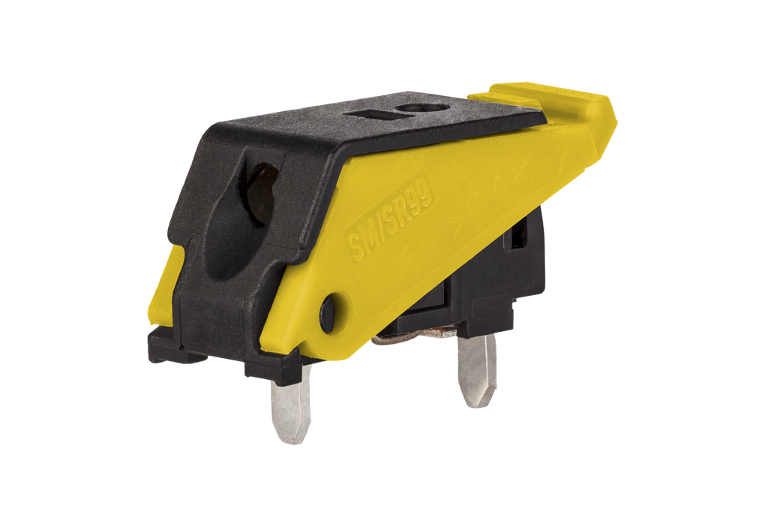

SR99S01VBNN02G7 yellow
Description
- ethernet-capable spring clamp terminal block, THR solderable, double solder pins
- direction of connection 90°
- fittable without loss of poles
- color yellow
- Tape & Reel packaging possible

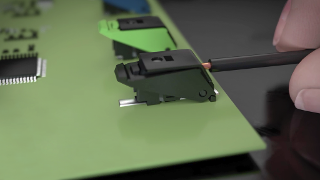

- finger push-button

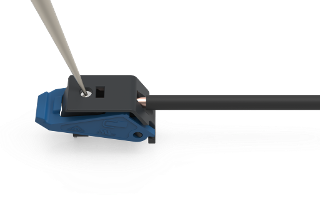

- test point and wire connection indicator
- Variants: black, creme white, yellow, green, red, blue, orange, gray, brown, white
Technical Data
General Data
2.4 mm
CTI 600
IP20
Connection Data
0,2 - 1,5 mm²
AWG 24 - 16
0,2 - 1,5 mm²
AWG 24 - 16
Material
PPA
V0
CuSn
Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
SR99S01VBNN02G7
Standard pole sizes
