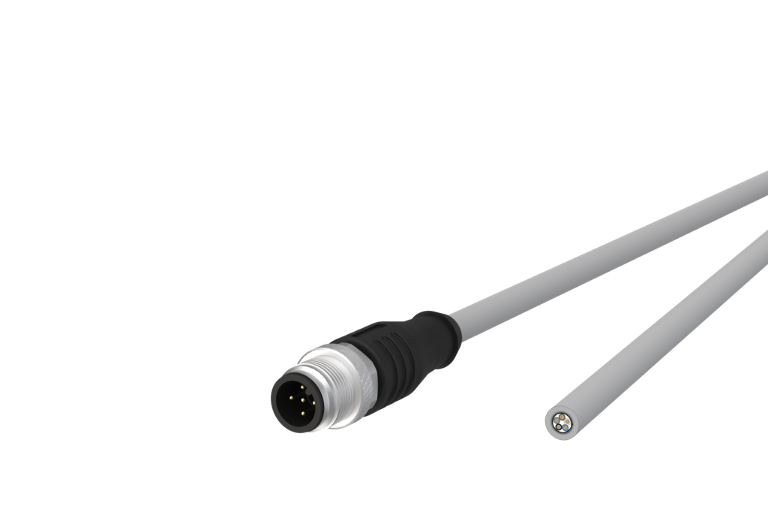

M12 Sensor/actuator cable, A-coded,
M12 plug straight - free line end,
shielded, 5-pole, PVC-C

Description

PVC-cable for measurement, control and sensor technology. Suitable for applications in dry areas on packaging machines, assembly and conveyor technology. High flexibility with unstressed movement (conditional drag chain application possible). Predestined for applications in food and beverage industry. Special features: seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, ozone resistant, UV resistant.

  • Standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m.
  • Other cable lengths on request.
Check US distributor inventory
Overview of variants
Description
Interface 1
Interface 2
Length
Part number
Accessories
M12 Sensor/actuator cable, A-coded, 1.0 m,
M12 plug straight - free line end,
shielded, 5-pole, PVC-C
M12-plug
free line end
1 m
142MMA10010
M12 Sensor/actuator cable, A-coded, 2.0 m,
M12 plug straight - free line end,
shielded, 5-pole, PVC-C
M12-plug
free line end
2 m
142MMA10020
M12 Sensor/actuator cable, A-coded, 5.0 m,
M12 plug straight - free line end,
shielded, 5-pole, PVC-C
M12-plug
free line end
5 m
142MMA10050
M12 Sensor/actuator cable, A-coded, 10.0 m,
M12 plug straight - free line end,
shielded, 5-pole, PVC-C
M12-plug
free line end
10 m
142MMA10100
