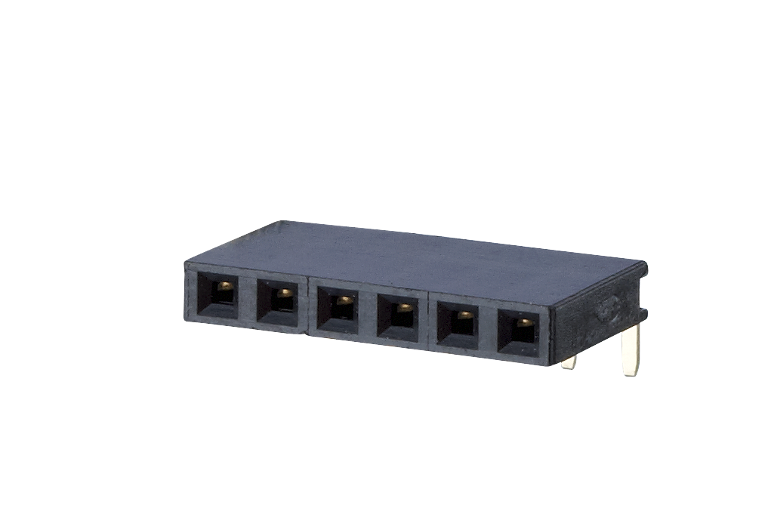

FR202xxHBNN

Description

female connector, THR solderable
centerline 2.54 mm, direction of connection 90°
closed ends
color black
single row
Tape & Reel packaging possible

Technical Data

General Data

Solder pin length:

3 mm

min. number of poles:

max. number of poles:

Protection category:

IP00

Material

insulating material:

PE-HT

contact material:

CuZn

Glow-Wire Flammability GWFI:

Glow-Wire Flammability GWIT:

Contact surface:

Ni + Au

contact pin material:

CuZnPb

contact pin surface:

Ni + Au Flash

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

FR202

HBNN

02 04 06

Pole sizes only available on demand
