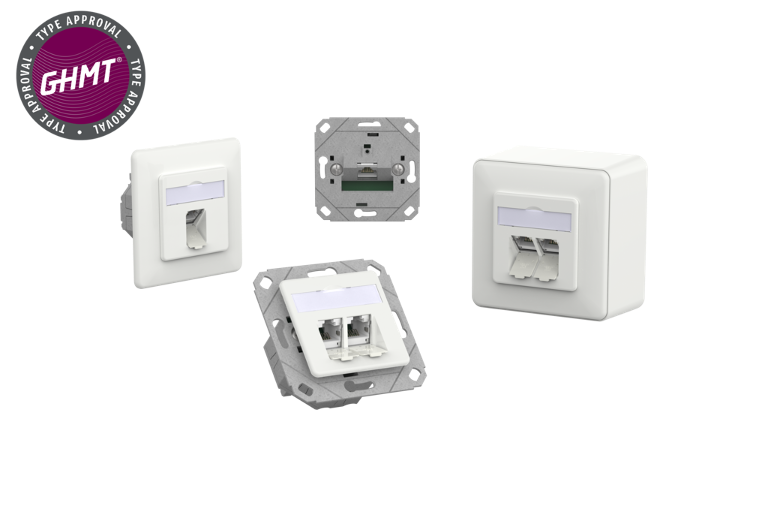

Wall outlets E-DAT C6_A IDC

Description

The RJ45 data wall outlet from METZ CONNECT impresses with maximum versatility and technical precision. It supports all common network standards - from classic telephony to high-performance 10-Gigabit Ethernet applications. Thanks to Power over Ethernet (PoE) up to 90 watts, IP-based devices such as cameras, access points, or VoIP phones can also be powered via the same cable. Made of high-quality die-cast zinc, the outlet not only offers exceptional durability but also optimal EMC protection. Thanks to the patented, optimized cable entry, the data outlet can be flexibly integrated into almost any installation scenario, and the proven IDC connection technology enables quick, tool-free, and error-free installation - ideal for professional users.

variants, mounting type: AP, UP, UPk, UP0
variants, number of ports: 1, 2

Check US distributor inventory

Overview of variants

E-DAT C6_A IDC 1 Port AP pure white

Mounting style: AP

Number of ports: 1

Flush-mounted / cavity wall cups suitable: on mug

Color: pure white - RAL 9010

Part number: 130D370002-I

E-DAT C6_A IDC 1 Port UP pure white

Mounting style: UP

Number of ports: 1

Flush-mounted / cavity wall cups suitable: yes

Color: pure white - RAL 9010

Part number: 130D371002-I

E-DAT C6_A IDC 1 Port UPk pure white

Mounting style: UPk

Number of ports: 1

Flush-mounted / cavity wall cups suitable: yes

Color: pure white - RAL 9010

Part number: 130D371102-I

E-DAT C6_A IDC 2 Port AP pure white

Mounting style: AP

Number of ports: 2

Flush-mounted / cavity wall cups suitable: on mug

Color: pure white - RAL 9010

Part number: 130D380002-I

E-DAT C6_A IDC 2 Port UP pure white

Mounting style: UP

Number of ports: 2

Flush-mounted / cavity wall cups suitable: yes

Color: pure white - RAL 9010

Part number: 130D381002-I

E-DAT C6_A IDC 2 Port UPk pure white

Mounting style: UPk

Number of ports: 2

Flush-mounted / cavity wall cups suitable: yes

Color: pure white - RAL 9010

Part number: 130D381102-I

E-DAT C6_A IDC 1 Port AP traffic white

Mounting style: AP

Number of ports: 1

Flush-mounted / cavity wall cups suitable: on mug

Color: traffic white - RAL 9016

Part number: 130D370027-I

E-DAT C6_A IDC 1 Port UP traffic white

Mounting style: UP

Number of ports: 1

Flush-mounted / cavity wall cups suitable: yes

Color: traffic white - RAL 9016

Part number: 130D371027-I

E-DAT C6_A IDC 1 Port UPk traffic white

Mounting style: UPk

Number of ports: 1

Flush-mounted / cavity wall cups suitable: yes

Color: traffic white - RAL 9016

Part number: 130D371127-I

E-DAT C6_A IDC 2 Port AP traffic white

Mounting style: AP

Number of ports: 2

Flush-mounted / cavity wall cups suitable: on mug

Color: traffic white - RAL 9016

Part number: 130D380027-I

E-DAT C6_A IDC 2 Port UP traffic white

Mounting style: UP

Number of ports: 2

Flush-mounted / cavity wall cups suitable: yes

Color: traffic white - RAL 9016

Part number: 130D381027-I

E-DAT C6_A IDC 2 Port UPk traffic white

Mounting style: UPk

Number of ports: 2

Flush-mounted / cavity wall cups suitable: yes

Color: traffic white - RAL 9016

Part number: 130D381127-I

E-DAT C6_A IDC 1 Port UP0 metallike

Mounting style: UP0

Number of ports: 1

Flush-mounted / cavity wall cups suitable: yes

Color: metallike

Part number: 130D371200-I

E-DAT C6_A IDC 2 Port UP0 metallike

Mounting style: UP0

Number of ports: 2

Flush-mounted / cavity wall cups suitable: yes

Color: metallike

Part number: 130D381200-I
