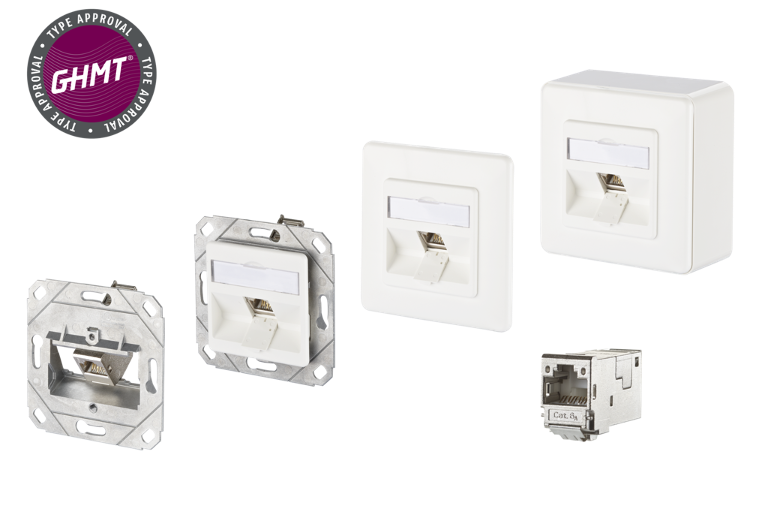

Wall outlets E-DAT module

941485
Description

Modular wall outlet for the construction of a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and power supply with PoE with up to 90W. The very robust, nickel-plated zinc die-cast module, which consists of only two parts, can be connected by the installer very easily and in a very short time without any special tools. In addition to the permanent quality control during production, independent test laboratories confirm the very good quality of the individual modules with various certificates. The wall outlets are supplied in retail-friendly, separable cardboard packaging with 10 pieces each.

  • variants, mounting type: AP, UP, UPk, UP0
  • variants, number of ports: 1, 2, 3
ghmt_type_approval
Check US distributor inventory
Overview of variants
Description
Mounting style
Number of ports
Flush-mounted / cavity wall cups suitable
Color
Part number
Accessories

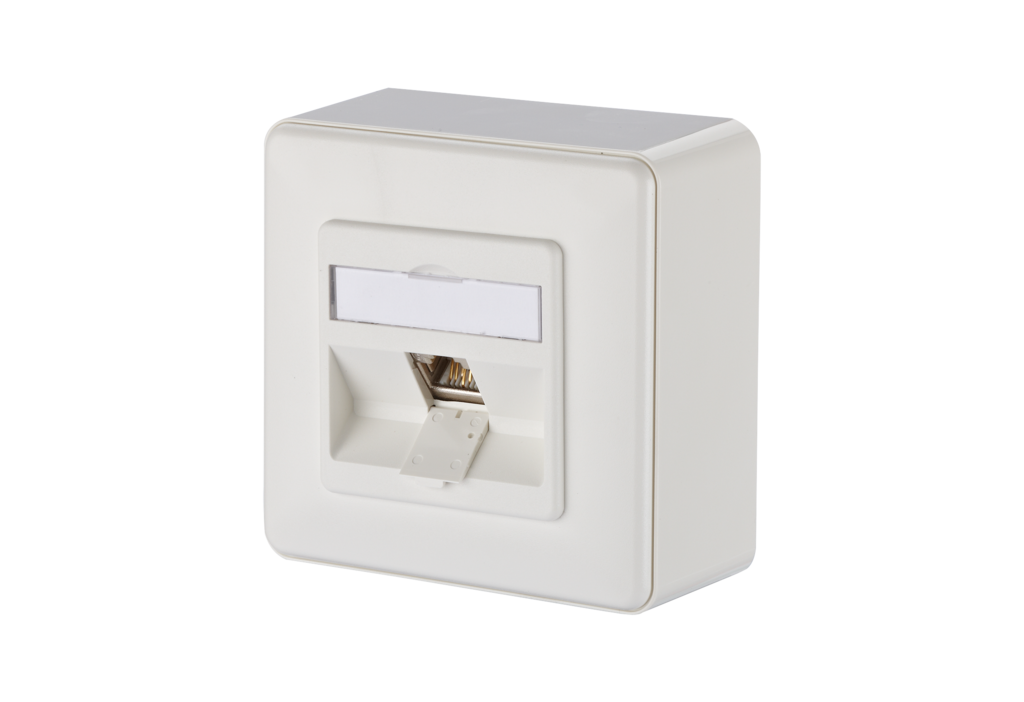

E-DAT modul 1 port AP Cat.6A, pure white
AP
1
on mug
pure white - RAL 9010
1309110002-E

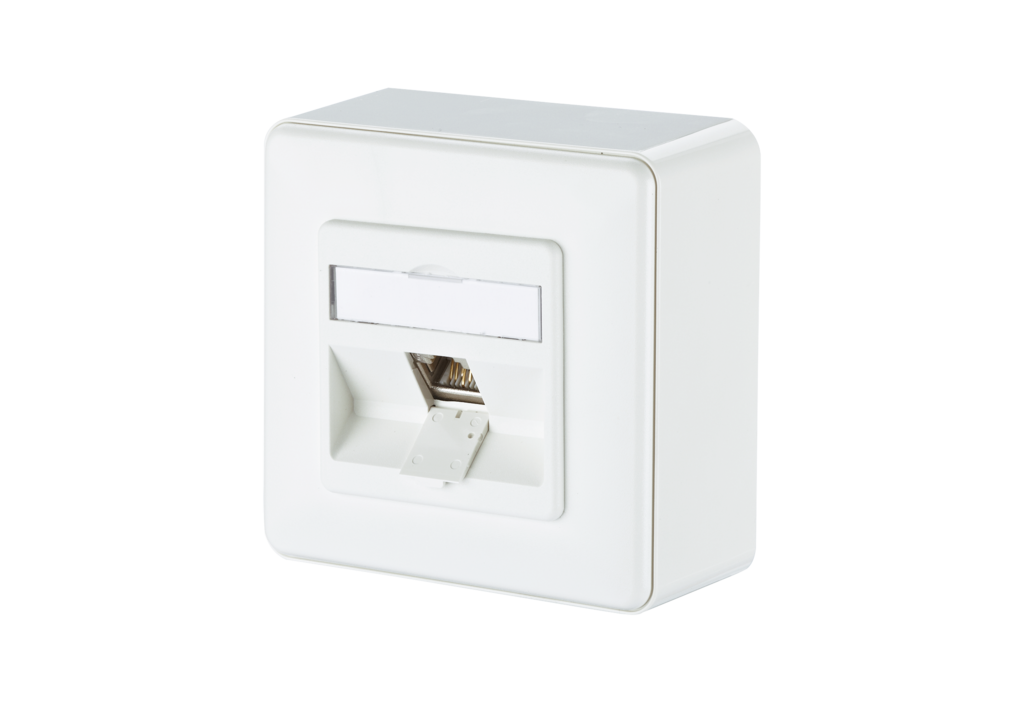

E-DAT modul 1 port AP Cat.6A, traffic white
AP
1
on mug
traffic white - RAL 9016
1309110027-E

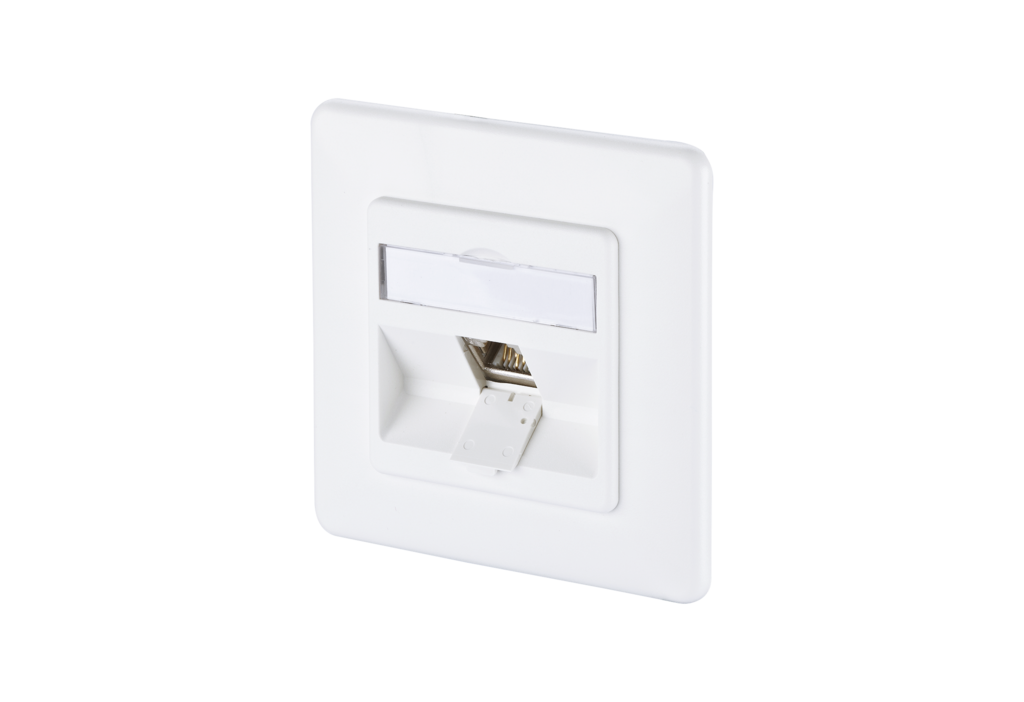

E-DAT modul 1 port UP Cat.6A, pure white
UP
1
no
pure white - RAL 9010
1309111002-E

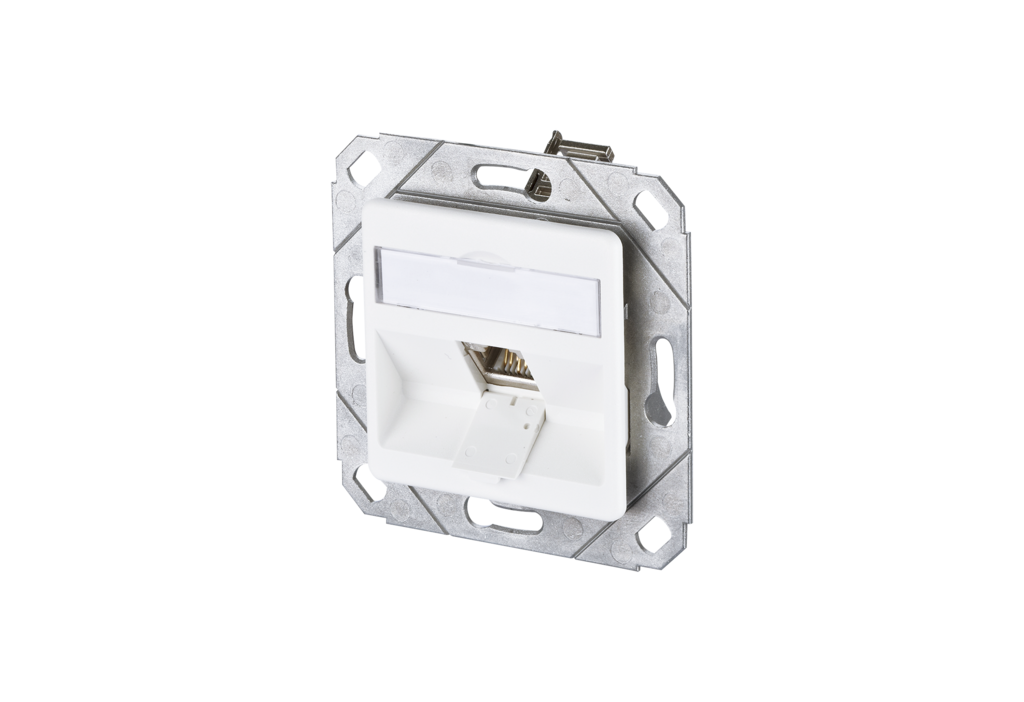

E-DAT modul 1 port UP Cat.6A, traffic white
UP
1
no
traffic white - RAL 9016
1309111027-E

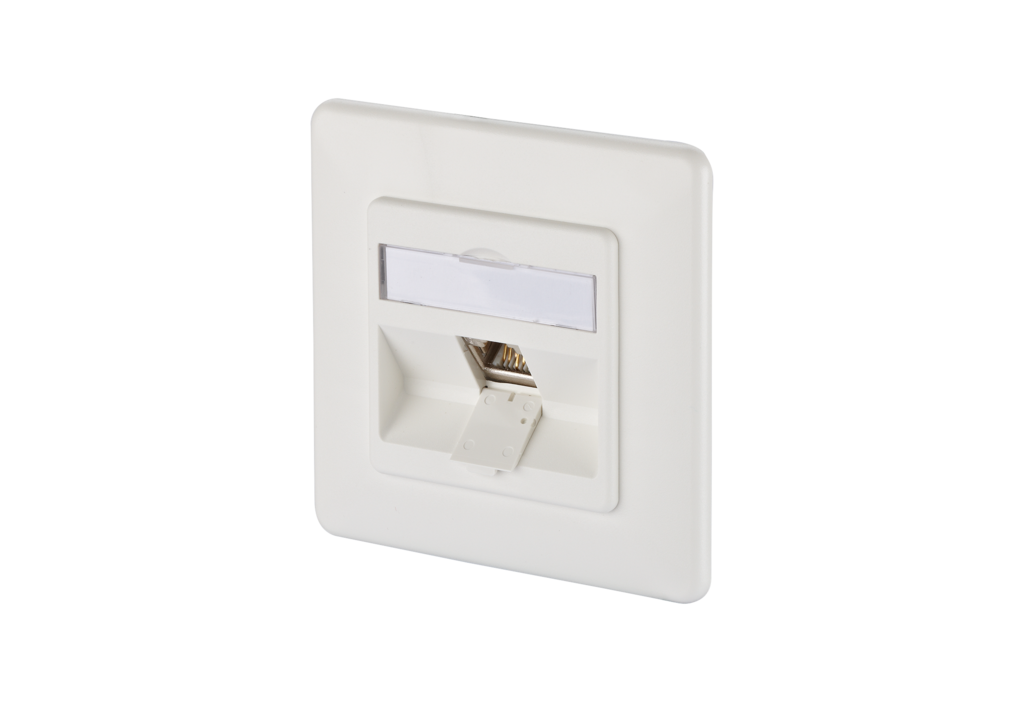

E-DAT modul 1 port flush mounted trunking installation
Cat.6A, pure white
UPk
1
no
pure white - RAL 9010
1309111102-E
E-DAT modul 1 port flush mounted trunking installation
Cat.6A, traffic white
UPk
1
no
traffic white - RAL 9016
1309111127-E

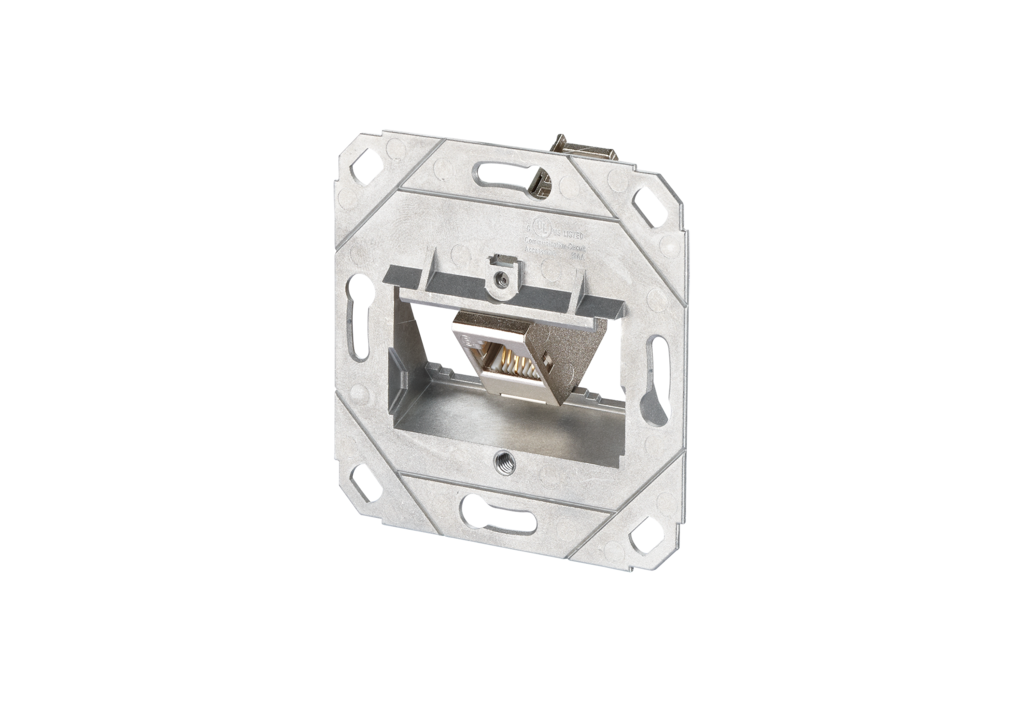

E-DAT modul 1 port flush mounted without cover Cat.6A
UP0
1
no
metallike
1309111200-E

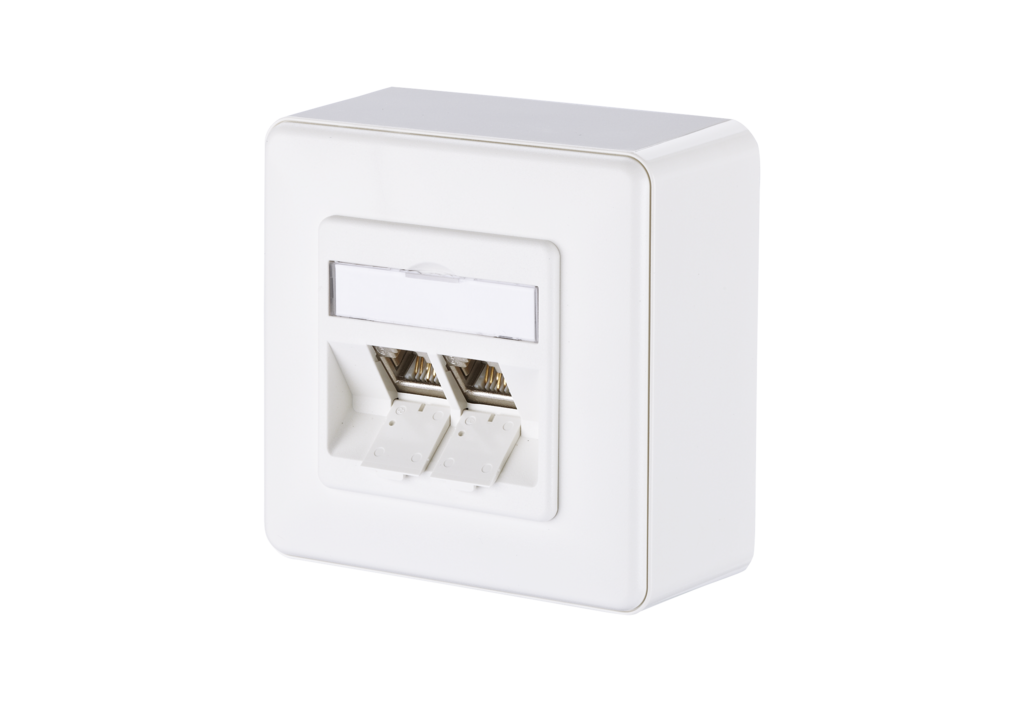

E-DAT modul 2 port AP Cat.6A, pure white
AP
2
on mug
pure white - RAL 9010
1309120002-E

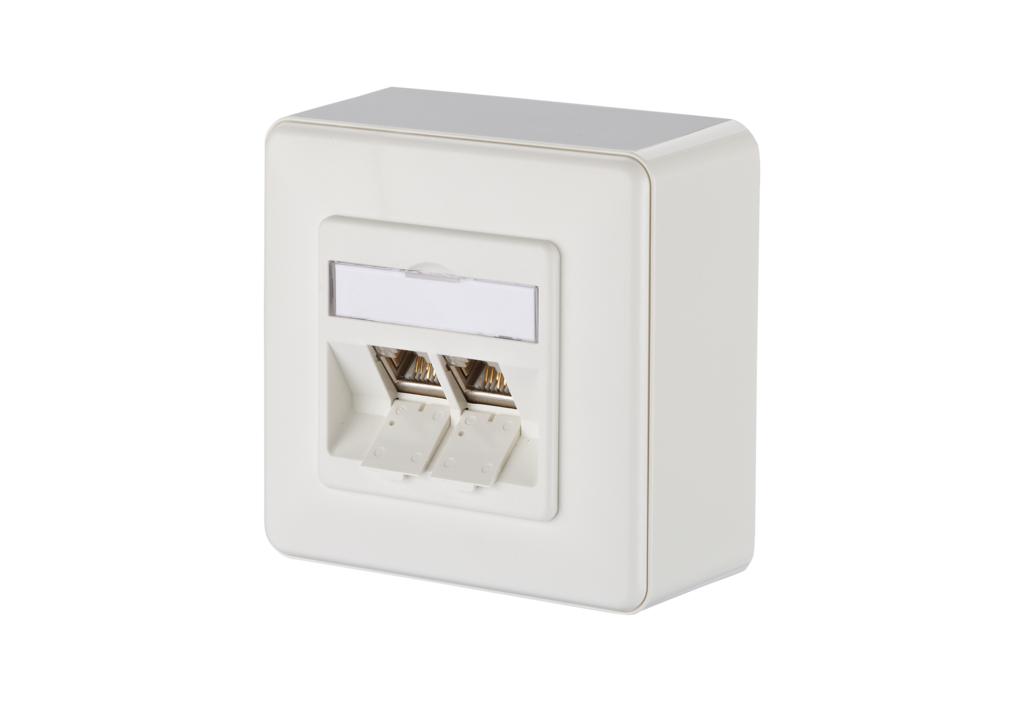

E-DAT modul 2 port AP Cat.6A, traffic white
AP
2
on mug
traffic white - RAL 9016
1309120027-E

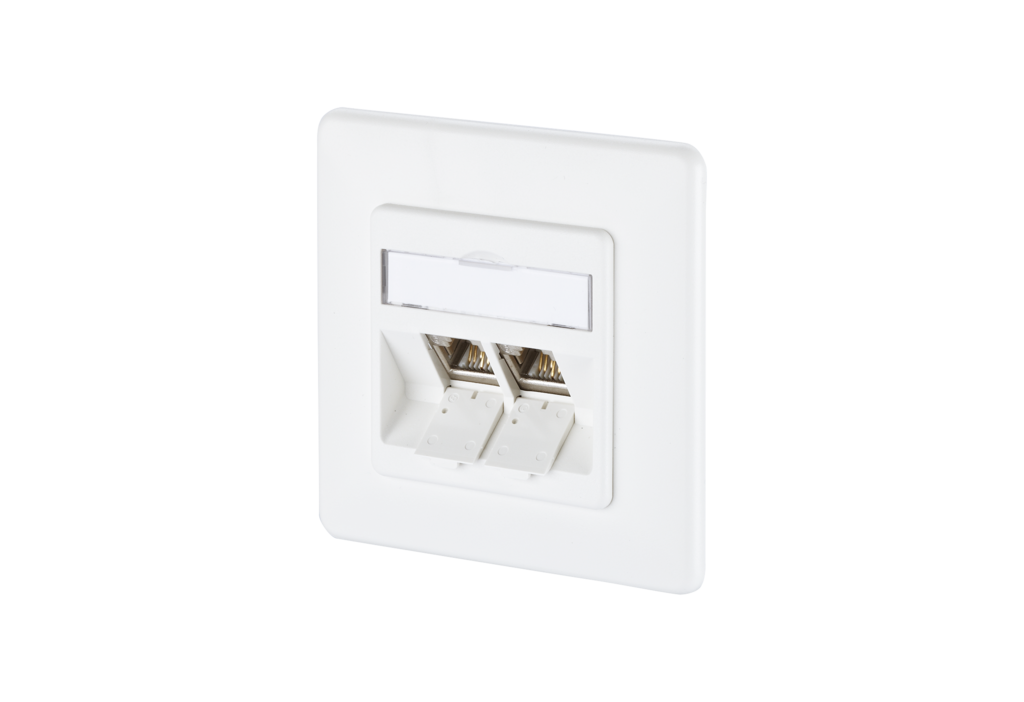

E-DAT modul 2 port UP Cat.6A, pure white
UP
2
no
pure white - RAL 9010
1309121002-E
E-DAT modul 2 port UP Cat.6A, traffic white
UP
2
no
traffic white - RAL 9016
1309121027-E
E-DAT modul 2 port flush mounted trunking installation
Cat.6A, pure white
UPk
2
no
pure white - RAL 9010
1309121102-E
E-DAT modul 2 port flush mounted trunking installation
Cat.6A, traffic white
UPk
2
no
traffic white - RAL 9016
1309121127-E

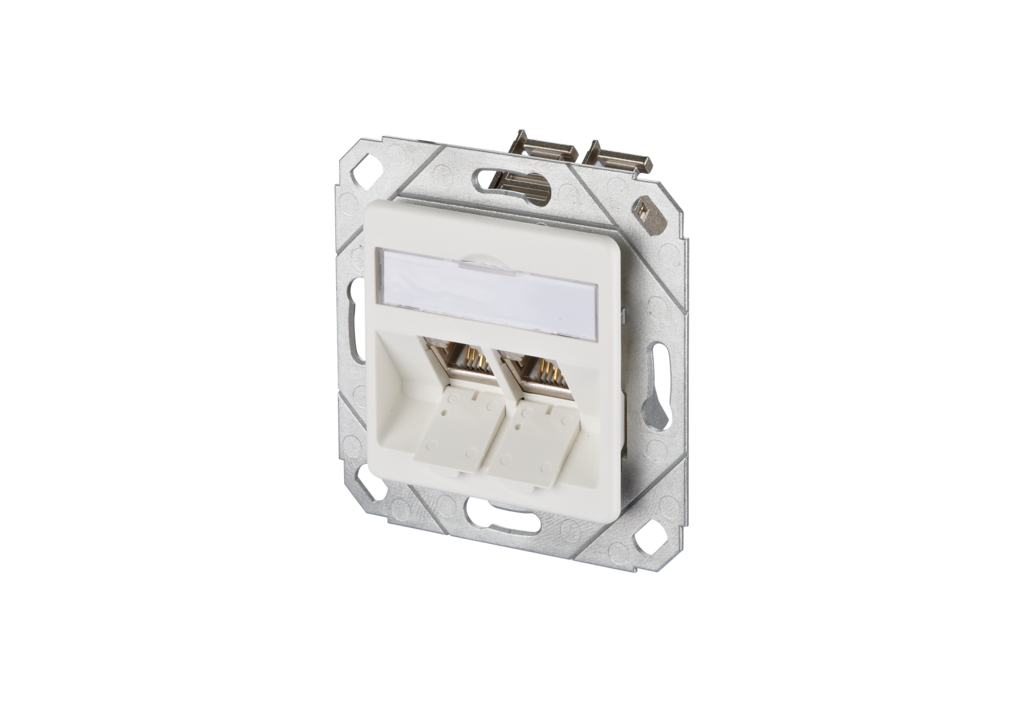

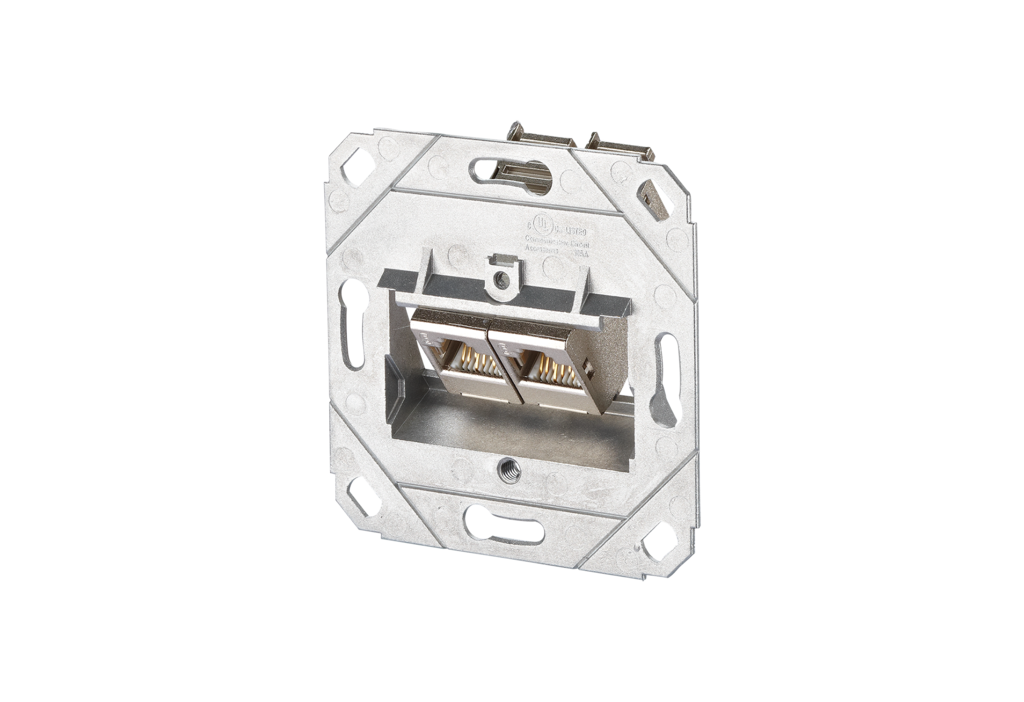

E-DAT modul 2 port flush mounted without cover Cat.6A
UP0
2
no
metallike
1309121200-E

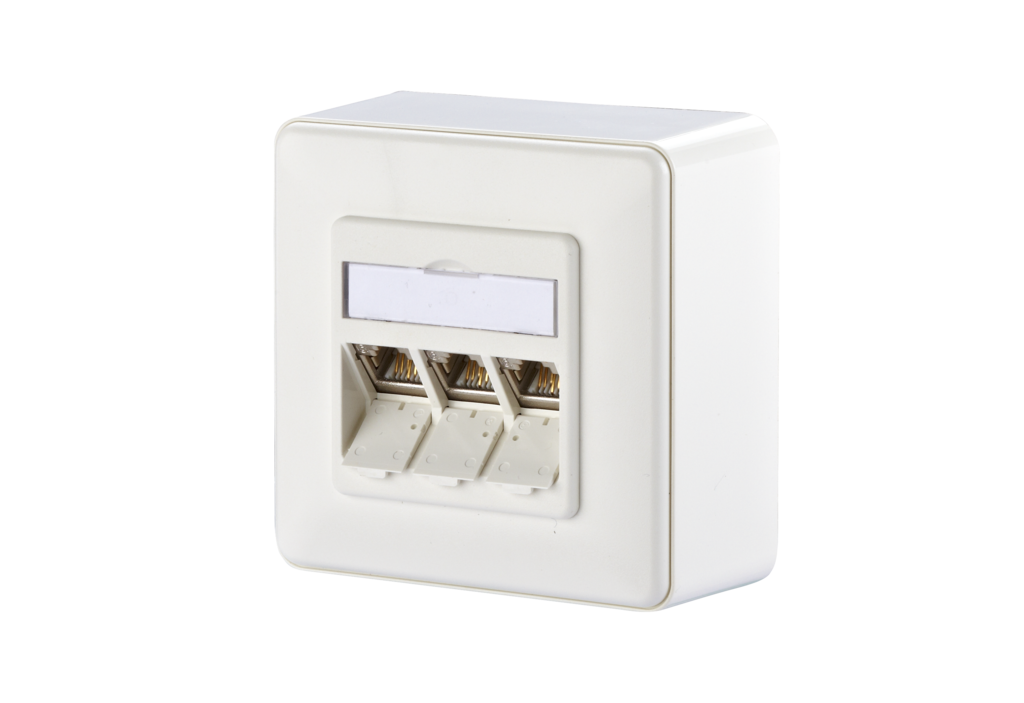

E-DAT modul 3 port AP Cat.6A, pure white
AP
3
on mug
pure white - RAL 9010
1309130002-E
E-DAT modul 3 port UP Cat.6A, pure white
UP
3
no
pure white - RAL 9010
1309131002-E
E-DAT modul 3 port UP Cat.6A, traffic white
UP
3
no
traffic white - RAL 9016
1309131027-E

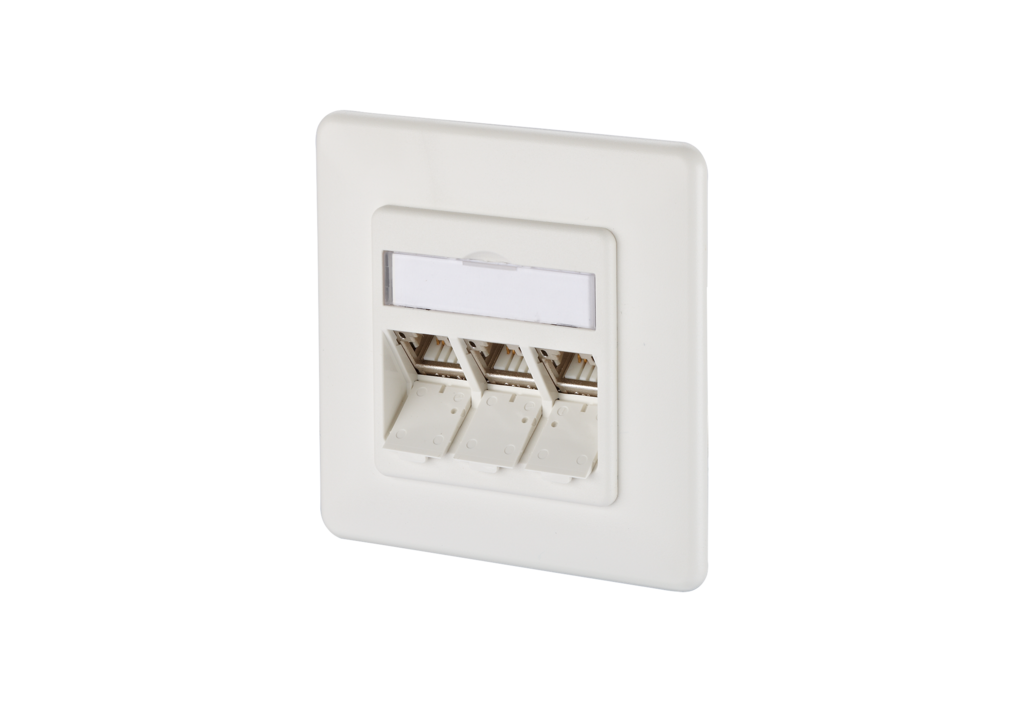

E-DAT modul 3 port flush mounted trunking installation
Cat.6A, pure white
UPk
3
no
pure white - RAL 9010
1309131102-E
E-DAT modul 3 port flush mounted trunking installation
Cat.6A, traffic white
UPk
3
no
traffic white - RAL 9016
1309131127-E

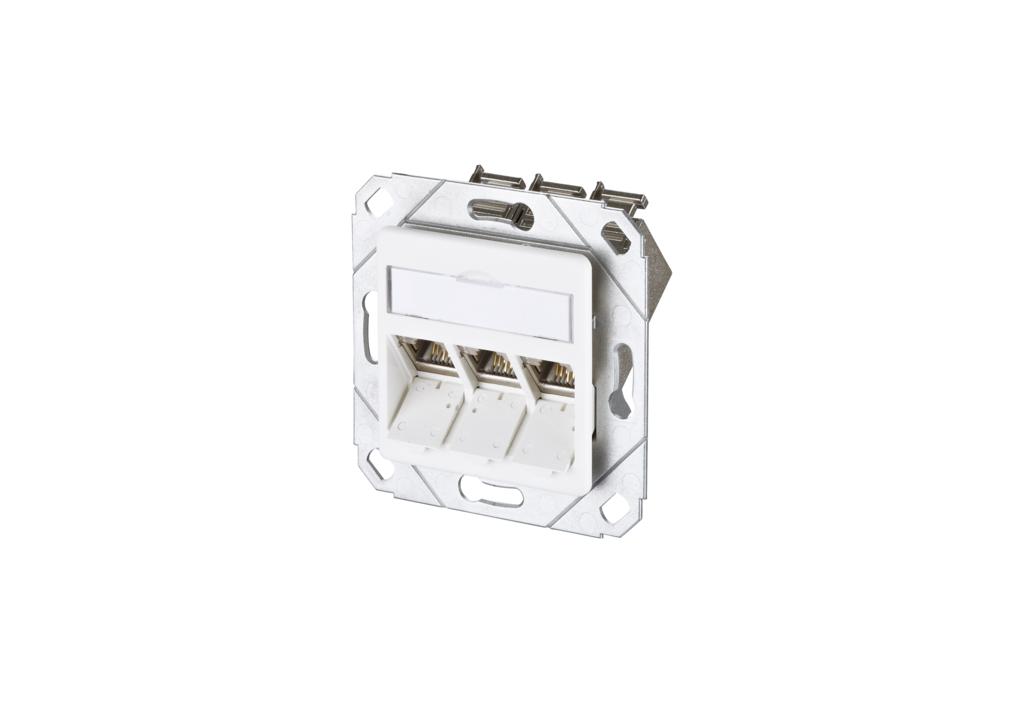

E-DAT modul 3 port flush mounted without cover Cat.6A
UP0
3
no
metallike
1309131200-E
