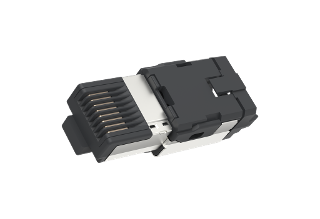

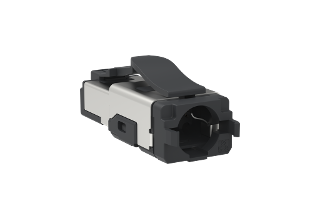

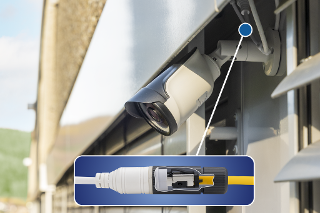

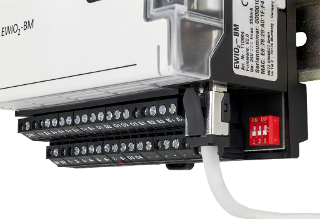

C6_A RJ45 field plug ultra short

Description

Cat.6_A class E_A RJ45 plug to be assembled in the field
centrally aligned and multiport-capable
straight cable feed (180°)
easy assembly - connection without special tools
wire connection stranded wire: AWG 26/7 - 22/7
wire connection solid wire: AWG 26/1 - 22/1
transmission characteristics Cat.6_A according to ISO/IEC 11801
compliance with class E_A to ISO/IEC 11801, DIN EN 50173-1
degree of protection IP20
with optional cable bend suitable for cable jacket diameters from 5.0 to 8.0 mm
2-part, well-known MC connection concept
protected locking hook
reconnectable

Technical Data

General Data

Fields of application:

structured building cabling

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

plug

Shielding:

yes

Wiring:

T568A, T568B

Color:

black

Dimension [Length] (mm):

29.5 mm

Dimension [Width] (mm):

13.8 mm

Dimension [Height] (mm]:

13.7 mm

Dimension [Length] (inch):

1.161 in.

Dimension [Width] (inch):

0.543 in.

Dimension [Height] (inch):

0.539 in.

Weight [gram]:

4.54 g

Weight [pound]:

0.01 lb

Transmission characteristics

Category (ISO):

6_A

Class (ISO/IEC):

E_A

Category (TIA):

6_A

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

UPoE:

yes

4PPoE:

IEEE 802.3bt

Transmission rate up to 10 GBit:

IEEE 802.3an

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45 plug

Core diameter (conductor with insulation) [mm max.]:

1.6 mm

Core diameter (conductor with insulation) [inch max.]:

0.063 in.

Cable sheath diameter [mm min.]:

5.5 mm

Cable sheath diameter [mm max.]:

9 mm

Cable sheath diameter [inch min.]:

0.217 in.

Cable sheath diameter [inch max.]:

0,354 in.

Reconnectibility:

yes

Electrical characteristics

Current carrying capacity:

max. 1 A

Rated voltage:

max. 50 V

Contact resistance:

max. 20 mOhm

Insulation resistance:

min. 500 MOhm

Dielectric strength conductor-conductor (secondary) [V DC]:

1000 V DC

Dielectric strength conductor-shield [V DC]:

1500 V DC

Mechanical data

Insertion and withdrawal force:

max. 30 N

Life - Number of mating cycles:

min. 750

Materials and material properties

Material - Housing:

PBT

Material - Insulation displacement contacts:

CuSn

Material - Finish of insulation displacement contacts:

Material - Contact:

CuSn

Material - Contact finish:

Ni + Au (nickel-gold)

Material - Contact carriers:

PA UL 94 V0

Material - Latch:

Halogen free:

yes

Environmental conditions

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

70 °C

Temperature - Operating °F [min.]:

-40 °F

Temperature - Operating °F [max.]:

158 °F

Particulate ingress:

IP2X

Liquid ingress/immersion:

IPX0

Check US distributor inventory

Accessories

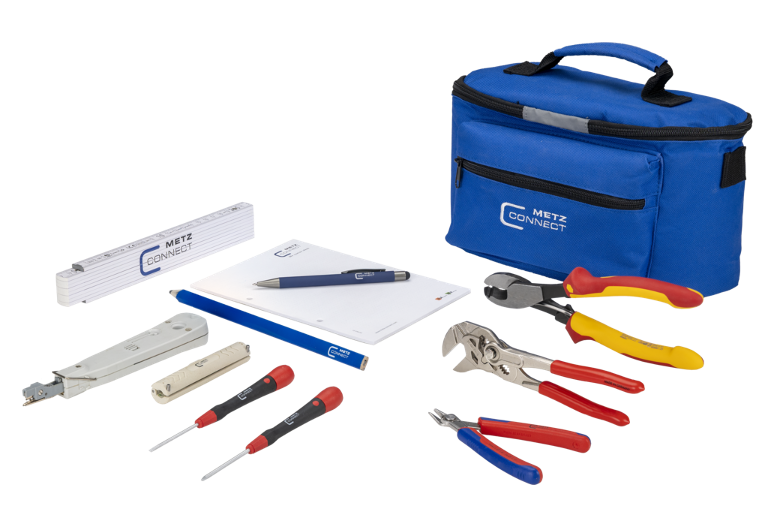

Copper tool Bag

MC GC400 SL24 Cat.6 U/UTP LSHF
305 m, class E_ca

MC GC400 SL24 Cat.6 U/UTP LSHF
500 m, class E_ca

MC GC1000 plus23 Cat.7 S/FTP 4P LSHF 500 m, class E_ca

MC GC1000 plus23 Cat.7 S/FTP 4P LSHF 1000 m, class E_ca

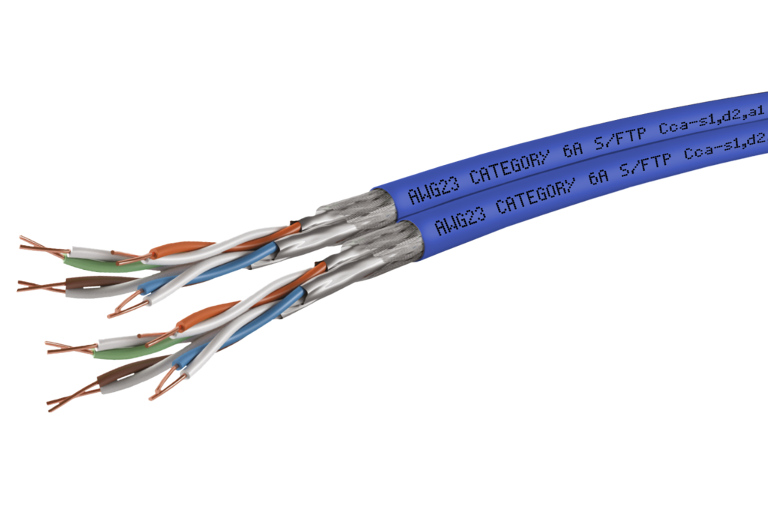

MC GC1000 plus23 Cat.7 S/FTP 2x4P LSHF 500 m, class E_ca

MC GC1300 pro22 Cat.7_A S/FTP 4P LSHF-FR 500 m,
class D_ca s1 d1 a1

MC GC1300 pro22 Cat.7_A S/FTP 4P LSHF-FR 1000 m,
class D_ca s1 d1 a1

MC GC1300 pro22 Cat.7_A S/FTP 2x4P LSHF-FR 500 m,
class D_ca s1 d1 a1

MC GC1300 pro22 Cat.7_A S/FTP 4P LSHF-FR 100 m,
class D_ca s1 d1 a1

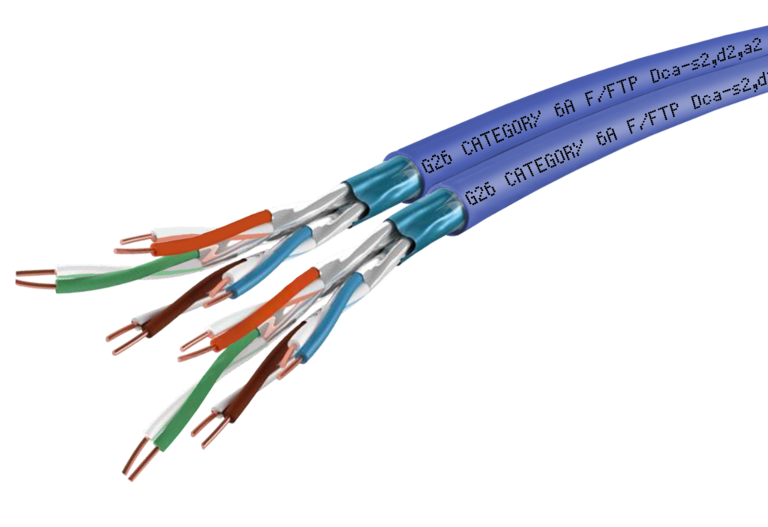

MC 550 AWG 23 Cat.6_A F/FTP 2x4P LSHF-FR 500 m,
class D_ca s2 d2 a2

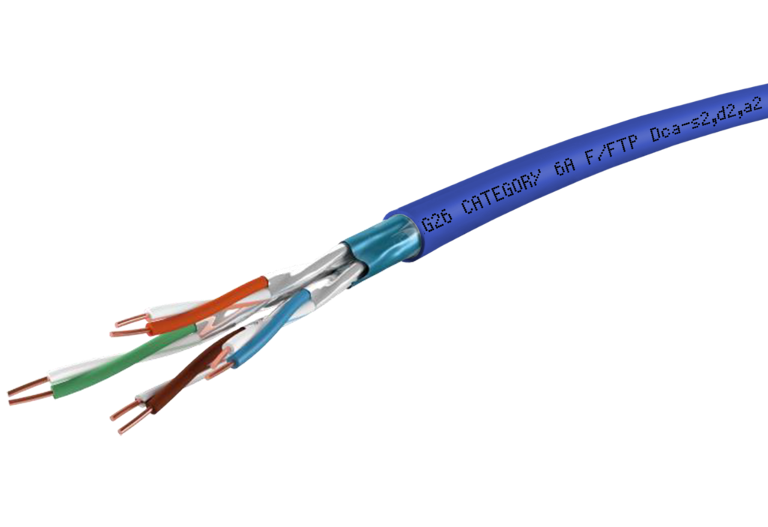

MC 550 AWG 23 Cat.6_A F/FTP 4P LSHF-FR 1000 m,
class D_ca s2 d2 a2

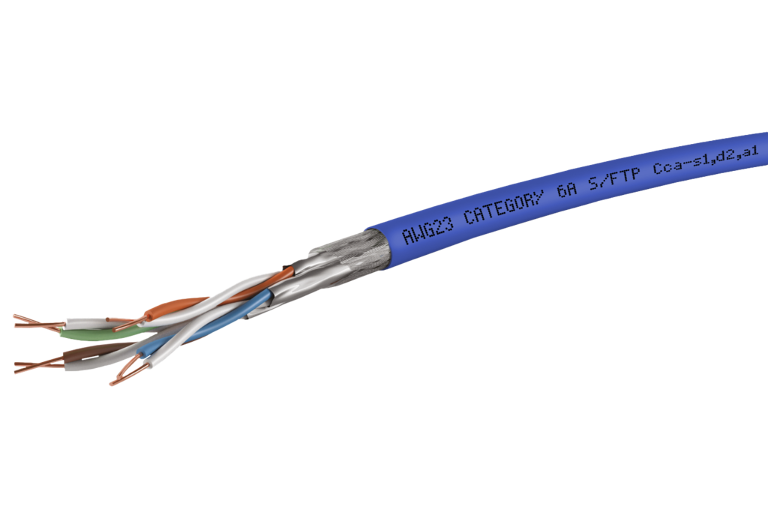

MC 550 AWG 23 Cat.6_A S/FTP 4P LSHF-FR 500 m,
class C_ca s1 d1 a1

MC 550 AWG 23 Cat.6_A S/FTP 2x4P LSHF-FR 500 m,
class C_ca s1 d1 a1

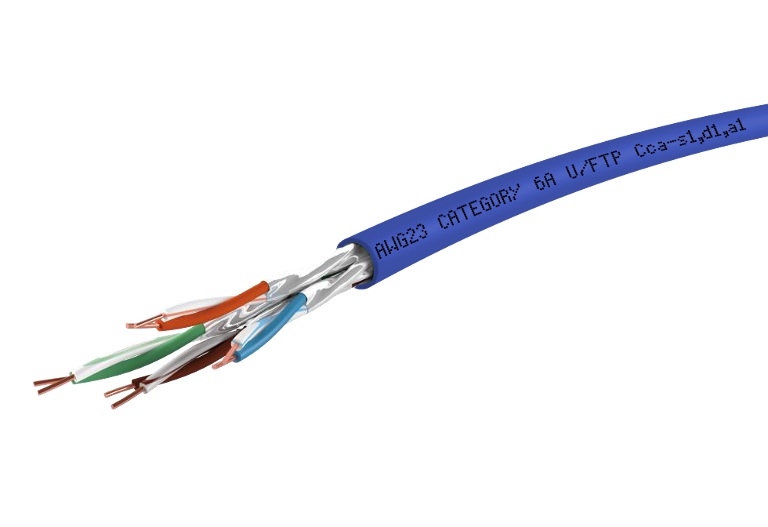

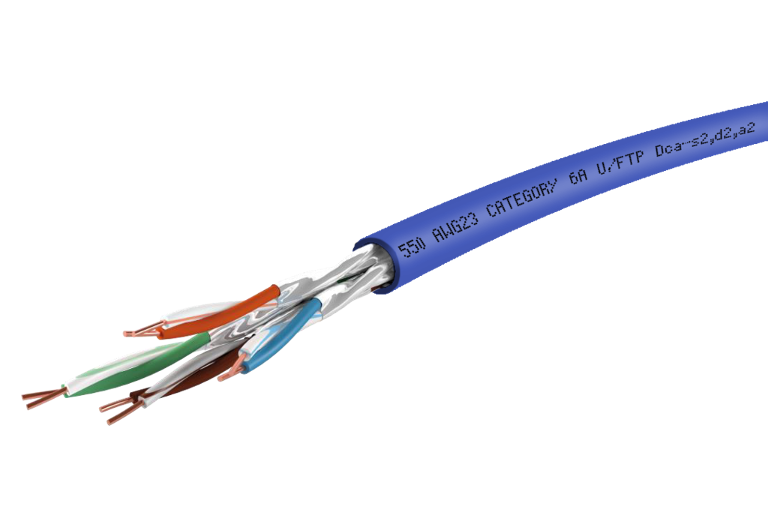

MC 550 AWG 23 Cat.6_A U/FTP 4P LSHF-FR 500 m,
class C_ca s1a d1 a1

MC 550 AWG 23 Cat.6_A U/FTP 4P LSHF-FR 500 m,
class D_ca s2 d2 a2

MC GC600 F1 23 Cat.6_A U/FTP 4P LSHF 500 m,
class E_ca

Parallel jaw pliers 1 3/8 inches

Jokari dismantle tool

Part number

Part number:

130E507032-E

EAN:

4251394666716
