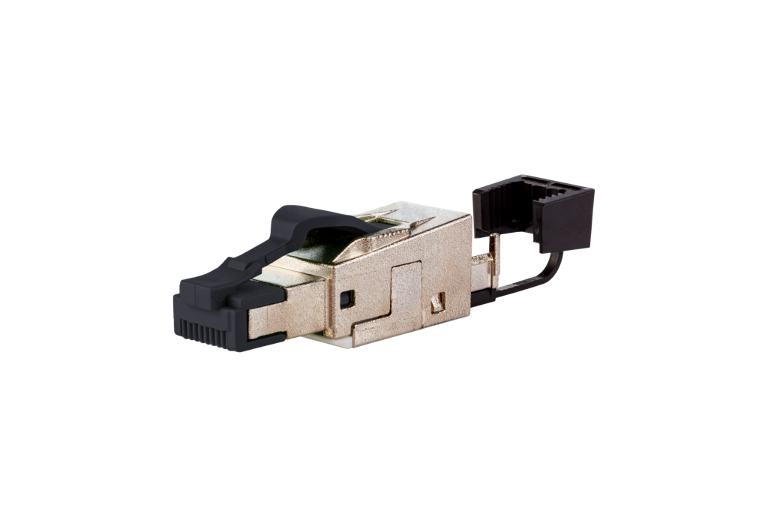

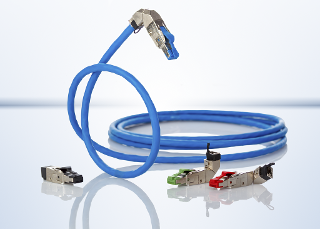

C6_A RJ45 field plug pro (100 pcs)

Description

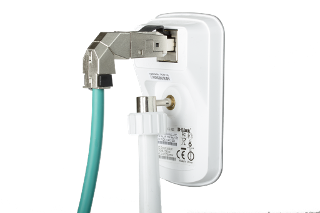

Cat.6_A class E_A RJ45 plug to be assembled in the field

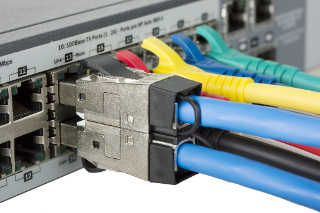

fully shielded and multi-port capable

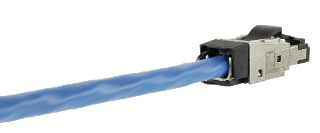

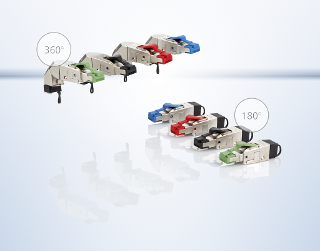

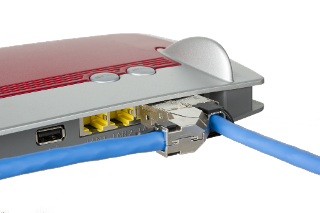

straight (180°) cable feed
easy assembly - connection without special tools
wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.409 to 0.64 mm
transmission characteristics Cat.6_A according to ISO/IEC 11801
compliance with class E_A according to ISO/IEC 11801, DIN EN 50173-1
degree of protection IP20
for cable jacket diameter from 5.5 to 9.5 mm

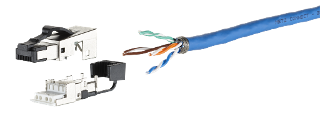

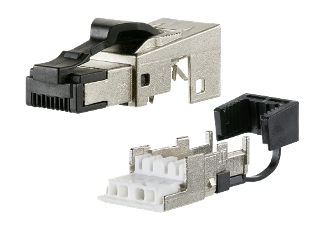

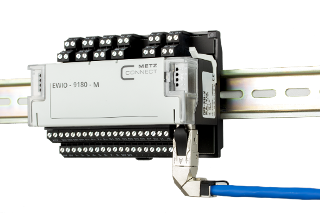

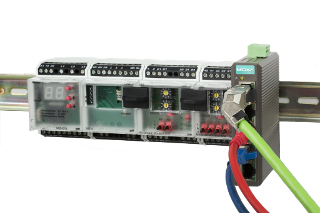

zinc die-cast housing for industrial use consists of only 2 parts
strain relief by latching clip directly on the stuffer cap
protected locking hook
reconnectable

Technical Data

General Data

Fields of application:

structured building cabling

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

plug

Shielding:

shielded

Transmission technology:

Copper

Color:

black

Dimension [Length] (mm):

49.8 mm

Dimension [Width] (mm):

13.8 mm

Dimension [Height] (mm]:

16.5 mm

Dimension [Length] (inch):

1.961 in.

Dimension [Width] (inch):

0.543 in.

Dimension [Height] (inch):

0.65 in.

Field assembly ability:

yes

Labeling option:

on housing

Marking option:

by latching clip

Transmission characteristics

Category (ISO):

6_A

Class (ISO/IEC):

E_A

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

UPoE:

yes

4PPoE:

IEEE 802.3bt

HDBaseT:

yes

Transmission rate up to 10 GBit:

IEEE 802.3an

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45 plug

Number of ports interface 2:

Number of ports interface 2 equipped:

Number of positions/contacts interface 1:

Number of positions/contacts interface 2:

8P/8C

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section solid wire [mm²] min-max:

0,128 - 0,324 mm²

Conductor diameter solid wire [mm] min-max:

0,409 - 0,643 mm

Conductor diameter solid wire [inch] min-max:

0,016 - 0,025 in.

Conductor cross section stranded wire [AWG] min-max:

AWG 27/7 - AWG 22/7

Conductor cross section stranded wire [mm²] min-max:

0,111 - 0,355 mm²

Conductor diameter stranded wire [mm] min-max:

0,457 - 0,762 mm

Conductor diameter stranded wire [inch] min-max:

0,018 - 0,03 in.

Cable sheath diameter [mm min.]:

5.5 mm

Cable sheath diameter [mm max.]:

9,5mm

Cable sheath diameter [inch min.]:

0.217 in.

Cable sheath diameter [inch max.]:

0.413

Cable access/outlet:

180°

Reconnectibility:

yes, if cross section is greater or the same

Shield connection:

flexible contact spring

Electrical characteristics

Current carrying capacity:

max. 1 A at 60 °C

Rated voltage:

max. 60 V DC

Contact resistance:

max. 20 mOhm

Insulation resistance:

min. 500 MOhm

Dielectric strength conductor-conductor (secondary) [V DC]:

1000 V DC

Dielectric strength conductor-shield [V DC]:

1500 V DC

Mechanical data

Mounting method:

snap-in function

Insertion and withdrawal force:

max. 20 N

Life - Number of mating cycles:

min. 750

Position/mounting of latch
standard installation position:

top

strain relief:

latching clip

Materials and material properties

Material - Housing:

GD-Zn

Material - Contact:

CuSn

Material - Contact finish:

Ni + Au (nickel-gold)

Material - Latch:

Plastics

Halogen free:

yes

Material - Finish:

Ni (nickel)

RoHS:

compliant

Environmental conditions

Temperature - Storage °C [min.]:

-40 °C

Temperature - Storage °C [max.]:

85 °C

Temperature - Storage °F [min.]:

-40 °F

Temperature - Storage °F [max.]:

185 °F

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

85 °C

Temperature - Operating °F [min.]:

-40 °F

Temperature - Operating °F [max.]:

185 °F

Particulate ingress:

IP2X

Liquid ingress/immersion:

IPX0

Check US distributor inventory

Part number

Part number:

130E405032-K

EAN:

4251122193460
