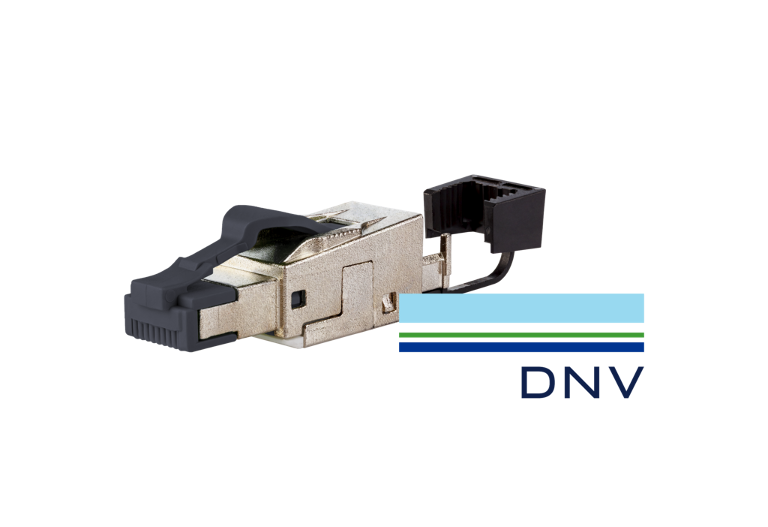

C6_A RJ45 field plug pro DNV

Description

DNV GL Type Approval Certificate
Application/limitation DNV location classes: Temperature: B, Humidity: B, Vibration: A, EMC: (n.A), Enclosure protection: A
Cat.6_A class E_A RJ45 plug to be assembled in the field
fully shielded and multi-port capable
straight (180°) cable feed
easy assembly - connection without special tools
wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.409 to 0.64 mm
transmission characteristics Cat.6_A according to ISO/IEC 11801
compliance with class E_A according to ISO/IEC 11801, DIN EN 50173-1
degree of protection IP20
for cable jacket diameter from 5.5 to 9.5 mm
zinc die-cast housing for industrial use consists of only 2 parts
strain relief by latching clip directly on the stuffer cap
protected locking hook
reconnectable

Technical Data

General Data

Fields of application:

Information technology - Application neutral communication cable systems
Ships
Offshore entities

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

plug

Shielding:

shielded

Transmission technology:

Copper

Color:

black

Dimension [Length] (mm):

49.8 mm

Dimension [Width] (mm):

13.8 mm

Dimension [Height] (mm]:

16.5 mm

Dimension [Length] (inch):

1.961 in.

Dimension [Width] (inch):

0.543 in.

Dimension [Height] (inch):

0.65 in.

Field assembly ability:

yes

Labeling option:

on housing

Marking option:

by latching clip

Transmission characteristics

Category (ISO):

6_A

Class (ISO/IEC):

E_A

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

UPoE:

yes

4PPoE:

IEEE 802.3bt

HDBaseT:

yes

Transmission rate up to 10 GBit:

IEEE 802.3an

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45 plug

Number of ports interface 2:

Number of ports interface 2 equipped:

Number of positions/contacts interface 1:

Number of positions/contacts interface 2:

8P/8C

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section solid wire [mm²] min-max:

0,128 - 0,324 mm²

Conductor diameter solid wire [mm] min-max:

0,409 - 0,643 mm

Conductor diameter solid wire [inch] min-max:

0,016 - 0,025 in.

Conductor cross section stranded wire [AWG] min-max:

AWG 27/7 - AWG 22/7

Conductor cross section stranded wire [mm²] min-max:

0,111 - 0,355 mm²

Conductor diameter stranded wire [mm] min-max:

0,457 - 0,762 mm

Conductor diameter stranded wire [inch] min-max:

0,018 - 0,03 in.

Core diameter (conductor with insulation) [mm max.]:

1.6 mm

Core diameter (conductor with insulation) [inch max.]:

0.063 in.

Cable sheath diameter [mm min.]:

5.5 mm

Cable sheath diameter [mm max.]:

9,5 mm

Cable sheath diameter [inch min.]:

0.217 in.

Cable sheath diameter [inch max.]:

0.374 in.

Cable access/outlet:

180°

Reconnectibility:

yes, if cross section is greater or the same

Shield connection:

flexible contact spring

Electrical characteristics

Current carrying capacity:

max. 1 A at 60 °C

Rated voltage:

max. 60 V DC

Contact resistance:

max. 20 mOhm

Insulation resistance:

min. 500 MOhm

Dielectric strength conductor-conductor (secondary) [V DC]:

max. 1000 V DC

Dielectric strength conductor-shield [V DC]:

max. 1500 V DC

Mechanical data

Mounting method:

snap-in function

Insertion and withdrawal force:

max. 30 N

Life - Number of mating cycles:

min. 750

Position/mounting of latch
standard installation position:

top

strain relief:

latching clip

Materials and material properties

Material - Housing:

GD-Zn

Material - Contact:

CuSn

Material - Contact finish:

Ni + Au (nickel-gold)

Material - Latch:

Plastics

Halogen free:

yes

RoHS:

compliant

Environmental conditions

Temperature - Storage °C [min.]:

-40 °C

Temperature - Storage °C [max.]:

85 °C

Temperature - Storage °F [min.]:

-40 °F

Temperature - Storage °F [max.]:

185 °F

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

85 °C

Temperature - Operating °F [min.]:

-40 °F

Temperature - Operating °F [max.]:

185 °F

Note for Temperature - Storage:

Visual inspection after 500 hours of ageing at 95 °C (203 °C), report available on request.

Particulate ingress:

IP2X

Liquid ingress/immersion:

IPX0

Check US distributor inventory

Accessory of

MCO IP69k protective housing for outdoor use,
set for exposed installation

MCO IP69k Protective housing for outdoor use,
set with mounting bracket

MCO IP69k Protective housing for outdoor use,
set wall/ housing bushing

Part number

Part number:

130E405032-DNV

EAN:

4251122185205
