E-DAT modul Cat.6_A 8(8) jack

Description

modular termination unit Cat.6_A, RJ45
Cat.6_A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
compliance with class E_A according to ISO/IEC 11801, DIN EN 50173-1
tested: Link up to 500 MHz
easy to install connection of 2 to 4 pair data lines
AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC)

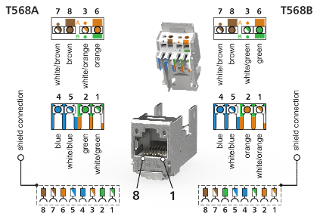

marking of conductor assignment to T568A and T568B
easy and fast insertion of wire pairs in E-DAT modul stuffer cap
module housing made of refined zinc die-casting
mounting without special tools
strain relief with cable tie at the module
dust cover amounting option
mounting version: MC Modul
cable feed 180°
delivery in a 10-piece set, available separately

Technical Data

General Data

Fields of application:

office areas
data center

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

Jack

Shielding:

shielded

Transmission technology:

Copper

Wiring:

T568A and T568B

Color:

metallike

Dimension [Length] (mm):

43.85 mm

Dimension [Width] (mm):

14.7 mm

Dimension [Height] (mm]:

22.4 mm

Dimension [Length] (inch):

1.726 in.

Dimension [Width] (inch):

0.579 in.

Dimension [Height] (inch):

0.882 in.

Weight [gram]:

41.3 g

Weight [pound]:

0.0911 lb

Modularity:

yes

Field assembly ability:

yes

Labeling option:

on housing

Transmission characteristics

Category (ISO):

6_A

Class (ISO/IEC):

E_A

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

UPoE:

yes

4PPoE:

IEEE 802.3bt

HDBaseT:

yes

Transmission rate up to 10 GBit:

IEEE 802.3an

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45-jack

Number of ports interface 2:

Number of ports interface 2 equipped:

Number of positions/contacts interface 1:

Number of positions/contacts interface 2:

8P/8C

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section solid wire [mm²] min-max:

0,128 - 0,324 mm²

Conductor diameter solid wire [mm] min-max:

0,409 - 0,643 mm

Conductor diameter solid wire [inch] min-max:

0,016 - 0,025 in.

Conductor cross section stranded wire [AWG] min-max:

AWG 26/7 - AWG 22/7

Conductor cross section stranded wire [mm²] min-max:

0,141 - 0,355 mm²

Conductor diameter stranded wire [mm] min-max:

0,483 - 0,762 mm

Conductor diameter stranded wire [inch] min-max:

0,019 - 0,03 in.

Core diameter (conductor with insulation) [mm max.]:

1.6 mm

Core diameter (conductor with insulation) [inch max.]:

0.063 in.

Cable sheath diameter [mm min.]:

5.5 mm

Cable sheath diameter [mm max.]:

10,00

Cable sheath diameter [inch min.]:

0.197 in.

Cable sheath diameter [inch max.]:

0.394

Cable access/outlet:

180°

Shield connection:

flexible contact spring

Electrical characteristics

Current carrying capacity:

max. 1 A at 60 °C

Rated voltage:

max. 60 V DC

Contact resistance:

max. 20 mOhm

Through resistance:

max. 200 mOhm

Insulation resistance:

min. 500 MOhm

Dielectric strength conductor-conductor (secondary) [V DC]:

min. 1000 V DC

Mechanical data

Cut-out:

MC module

Mounting method:

snap-in function

Insertion and withdrawal force:

max. 20 N

Position/mounting of latch
standard installation position:

top

strain relief:

with cable tie, attached to module

Materials and material properties

Material - Housing:

GD-Zn

Material - Insulation displacement contacts:

CuSn

Material - Finish of insulation displacement contacts:

Material - Contact:

Spring steel

Material - Contact finish:

Ni + Au (nickel-gold)

Material - Contact carriers:

PA 6.6

Halogen free:

yes

Material - Finish:

Ni (nickel)

RoHS:

compliant

Environmental conditions

Temperature - Storage °C [min.]:

-40 °C

Temperature - Storage °C [max.]:

70 °C

Temperature - Storage °F [min.]:

-40 °F

Temperature - Storage °F [max.]:

158 °F

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

70 °C

Temperature - Operating °F [min.]:

-40 °F

Temperature - Operating °F [max.]:

158 °F

Check US distributor inventory

Accessories

Dust protection cover for C6_Amodul pure white

Dust protection cover for C6_Amodul light gray

Dust protection cover for C6_Amodul yellow

Dust protection cover for C6_Amodul blue

Dust protection cover for C6_Amodul green

Dust protection cover for C6_Amodul red

Dust protection cover for C6_Amodul black, (250 pcs)

Dust protection cover for C6_Amodul black

Accessory of

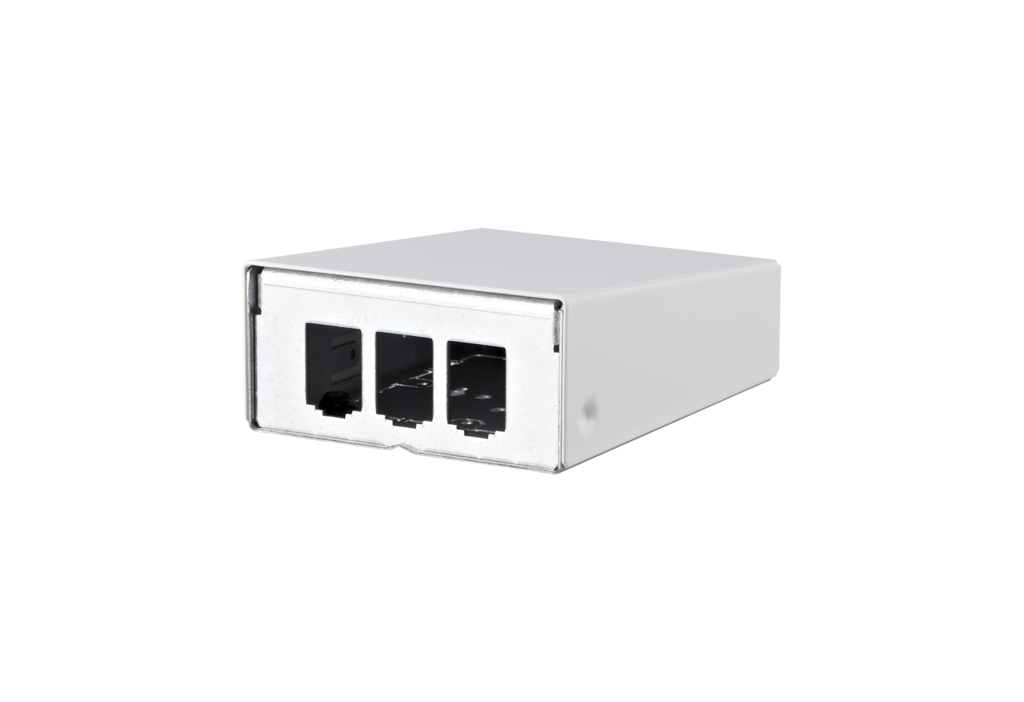

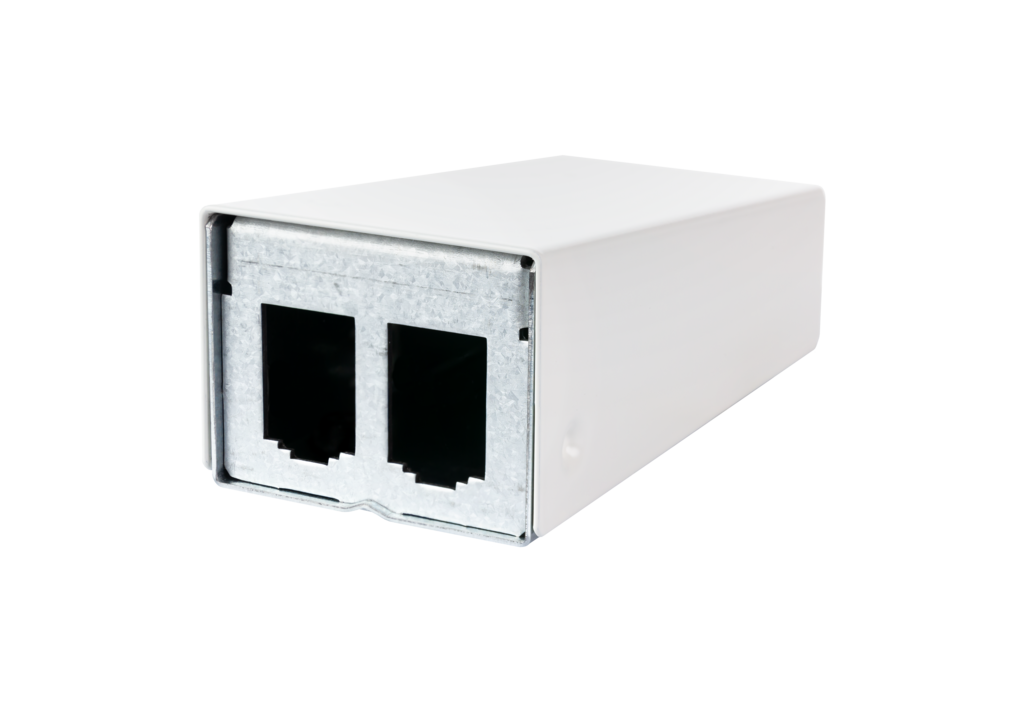

Modul surface mount housing 2 port pure white, unequipped
