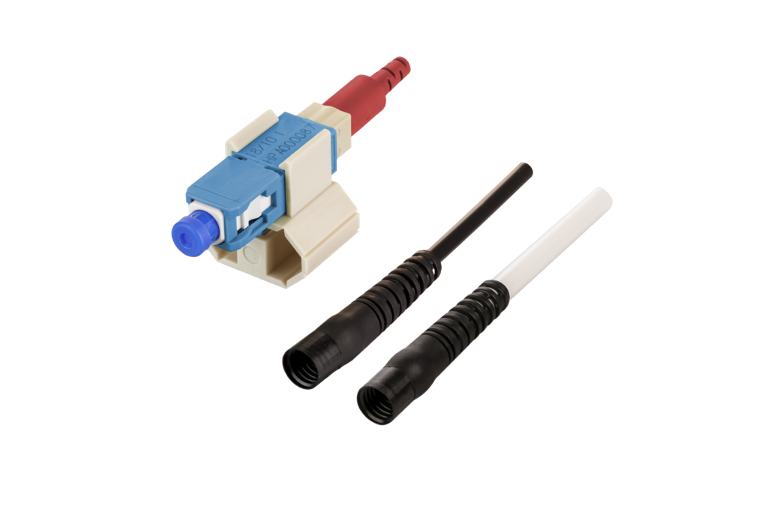

OpDAT FASTTM Hybrid connector kit SC UPC OS2
10 pieces for cables

Description
  • Field-attachable fiber optic connector for single-mode technology
  • with hybrid technology: refractive index gel plus opto-elastomer guarantee very good and constant optical values
  • no polishing, no gluing during assembly on site
  • simple, easy to learn, fast and cost-effective installation in less than two minutes
  • Available with connector types LC and SC for singlemode (UPC and APC)
  • plug kits for FO fibers with Ø 0.25 and Ø 0.9 mm
  • plug kits for fibre optic cables with Ø 2.0 and Ø 3.0 mm
  • the plug can be assembled up to three times
  • every plug has a serial number, so that traceability is possible at any time
  • Included in the scope of delivery depending on the variant:
  • a maintenance-free separator (Cleaver). It provides an oblique cut so that high return loss values are achieved. The Cleaver can be used up to 200 times.
  • a cable assembly kit for easy cable assembly
  • a fiber guide for easy insertion of the fiber into the connector
  • fields of application:
  • for FTTH and FITH connections, repairs in the field, in areas which are difficult to access or limited in space and for direct mounting on components
  • Versions for fibers: 10 pieces without tools / 20 or 100 pieces with Cleaver and fibre guide
  • Variants for cables: 10 pieces without tools / 20 or 100 pieces with Cleaver, cable assembly set and fibre guide
Check US distributor inventory
Accessories
Part number
1509QKEO0010-E
4251394625492
