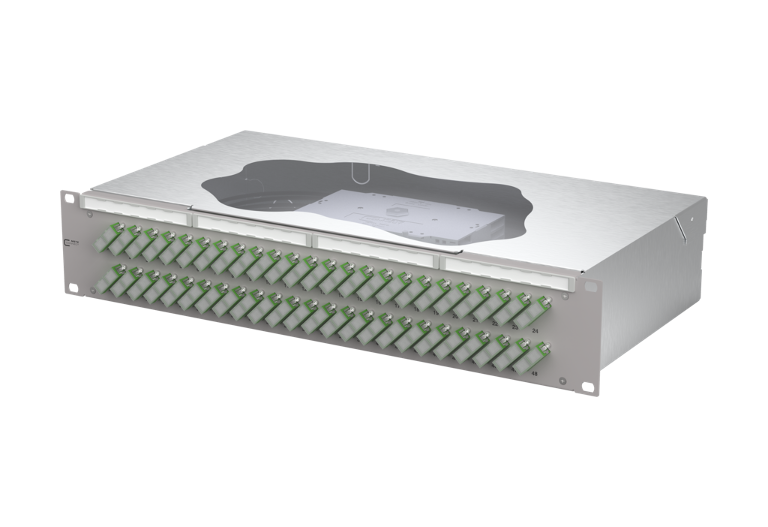

OpDAT fix2 patch panel splice
48xSC-D APC OS2 gray
Description
- 19-inch, 2RU patch panel for fixed installation
- Equipped with 48xSC-D couplers and 96xSC APC OS2 pigtails
- Inclined coupling arrangement
- Pigtails inserted and set down in standard splice cassette with crimp splice holders
- Pigtails cleaned and inserted into coupler
- Color coding according to IEC 60304
- Front panel with labelling field
- Front panel powder-coated in gray RAL 7035
- Tool-free opening of the cover
- Several possibilities for cable entry on the back: 6xM20; 2xM25; 2xPrefab installation cut-outs
Check US distributor inventory
Accessories
Part number
150489F248-E
4251394678610
