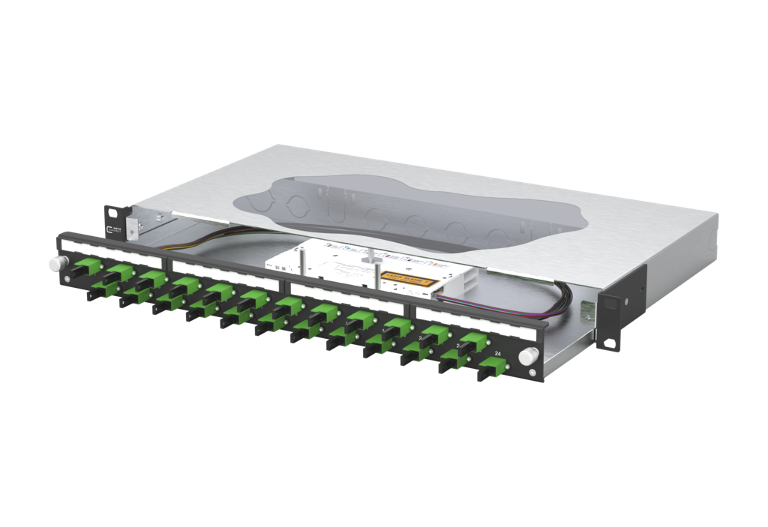

OpDAT slide2 patch panel splice
24xE2000-S APC OS2 black
Description
- 19-inch, 1RU patch panel with pull-out drawer
- Equipped with 24xE2000-S couplers and 24xE2000-S APC OS2 pigtails
- Offset coupling arrangement for easy handling
- Pigtails inserted and set down in standard splice cassette with crimp splice holders
- Pigtail visually inspected and inserted into couplers
- Color coding according to IEC 60304
- Tool-free metal bayonet catch for locking the drawer
- Drawer can be tilted and completely removed for easier installation (drawer stop)
- Depth adjustable by 30 mm
- Front panel with labelling field
- Front panel powder-coated in black RAL 9005
- Several possibilities for cable entry on the back: 6xM20; 2xM25; 2xPrefab installation cut-outs
Check US distributor inventory
Accessories
Part number
1504695924-B
4251394685052
