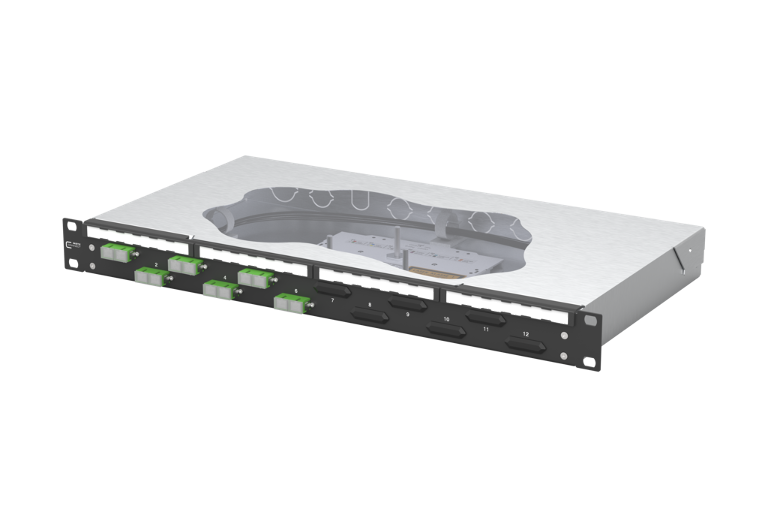

OpDAT fix2 patch panel splice
6xSC-D APC OS2 black
Description
- 19-inch, 1RU patch panel for fixed installation
- Equipped with 6xSC-D couplers and 12xSC APC OS2 pigtails
- Offset coupling arrangement for easy handling
- Pigtails inserted and set down in standard splice cassette with crimp splice holders
- Pigtail visually inspected and inserted into couplers
- Color coding according to IEC 60304
- Front panel with labelling field
- Front panel powder-coated in black RAL 9005
- Tool-free opening of the cover
- Several possibilities for cable entry on the back: 6xM20; 2xM25; 2xPrefab installation cut-outs
Check US distributor inventory
Accessories
Part number
150459F206-C
4251394685236
