E-DAT modul 6x8(8) 3RU patch panel Cat.6A

Description
  • module frame with 6 E-DAT modul individual modules
  • Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51
  • compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
  • tested: Link to 500 MHz
  • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
  • easy to install connection of 2 to 4-pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC)

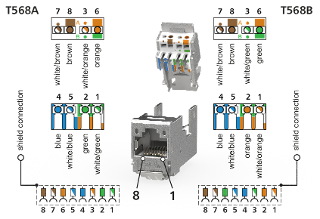

  • marking of conductor assignment to T568A and T568B
  • strain relief directly snapped on to stuffer cap of E-DAT modul
  • 3RU module frame front made of silver anodized aluminum for mounting in 3RU assembly frame
  • with label window for enclosed identification labels
  • optional strain relief using cable ties
  • grounding bolt M6 x 10 with nut and lock washer
