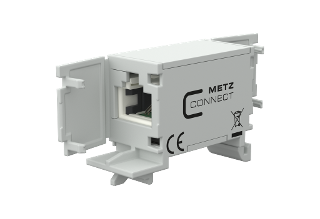

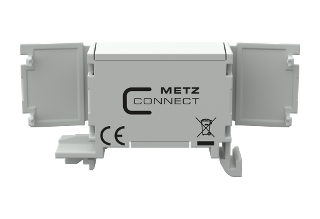

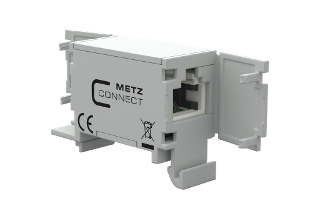

Smart meter coupler RJ12/RJ12 unshielded
Description
- unshielded RJ12 Plug + Play solution with patch/patch design
- prevention of wiring errors

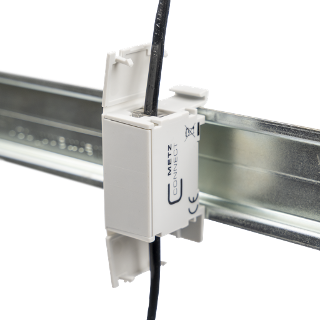

- one article for all applications (for DIN rail, meter cabinet or meter board)
- simple connection of smart meters with RJ12 patch cords
- application rule is implemented quickly and easily
- suitable for meter locations according to DIN VDE 0603-1
- particularly suitable as a Plug + Play solution for businesses looking to set up cabling for energy management systems in accordance with ISO 50001 or energy audits in accordance with DIN EN 16247
- transmission speed up to 10 Mbit/s
- housing in protection class 2
- surge voltage insulation test: Rated surge voltage Uimp 4 kV
Check US distributor inventory
Accessories
Part number
1401A0APZ-E
4251394692883
Downloads
- 3D-Data - Registration required -
- Mounting note
- Data sheet
