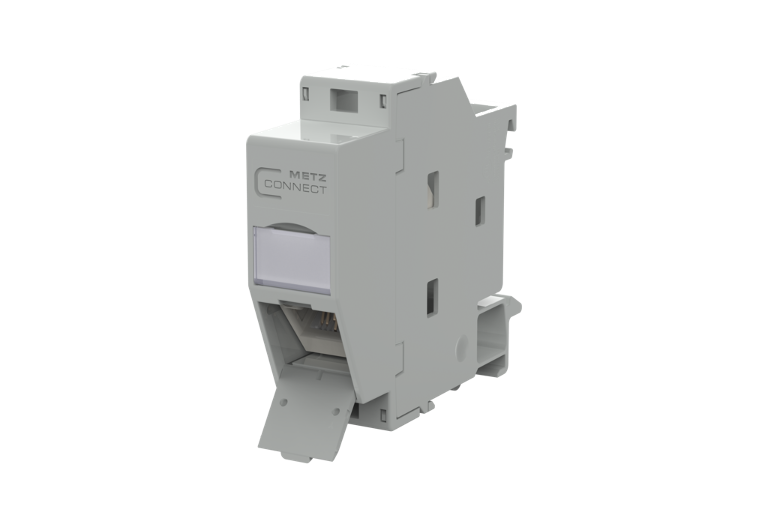

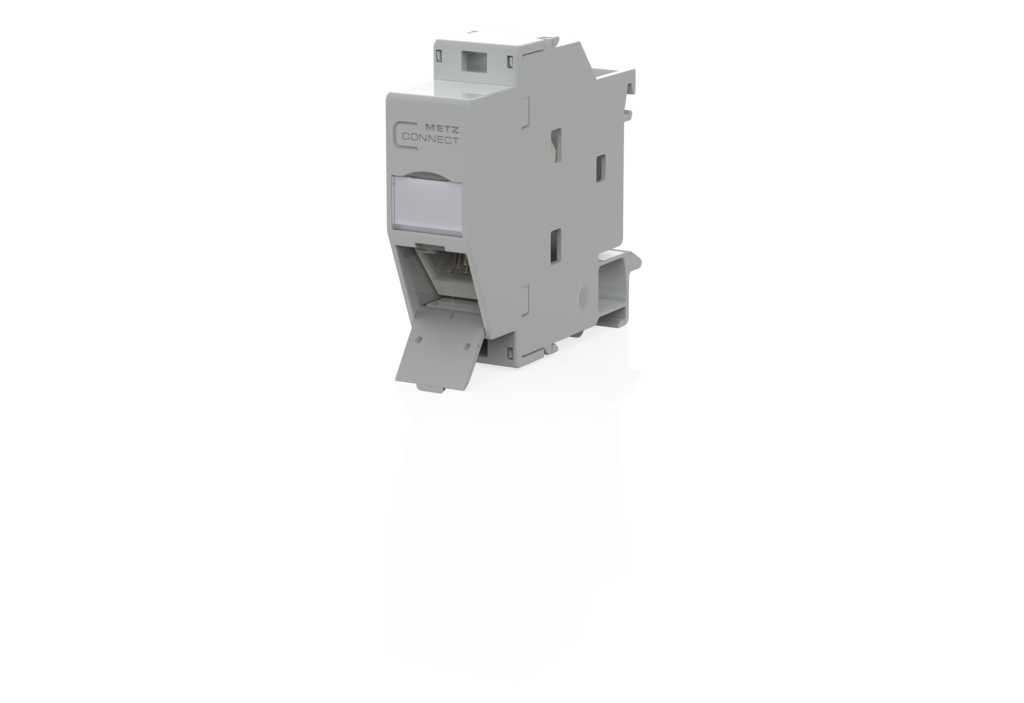

REGplus IP20 FF UTPmodul Cat.5e
Description
- termination unit for mounting on TH35 rails to DIN EN 60715 in electrical distribution panels for home and industrial installations

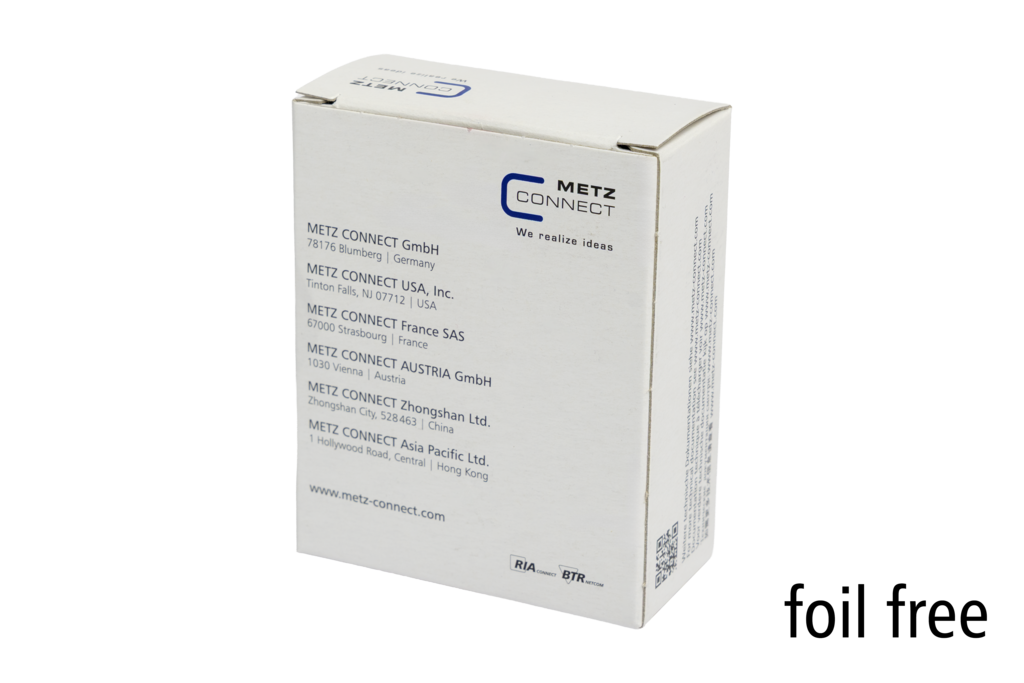

- new METZ CONNECT FF technology, packaged without plastic foil (Easy Installation technology - foil free)

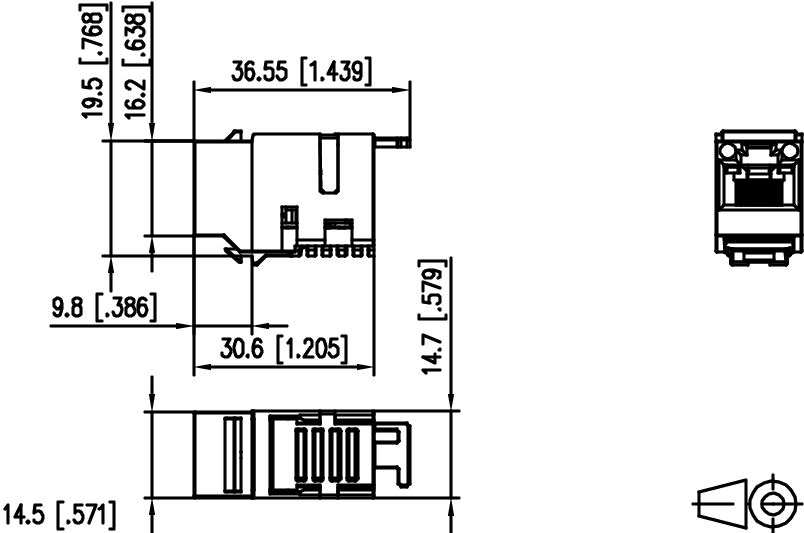

- equipped with UTP modul Cat.5e
- cable feed 45° from the top, plug direction 45° downwards
- Cat.5e component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
- compliance with class D to ISO/IEC 11801, DIN EN 50173-1
- suitable for 1 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, SAT-IP, AVoverIP
- easy to install connection of 2 to 4 pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC)
- conductor assignment to T568A and T568B
- easy and fast insertion of wire pairs in UTP modul stuffer cap

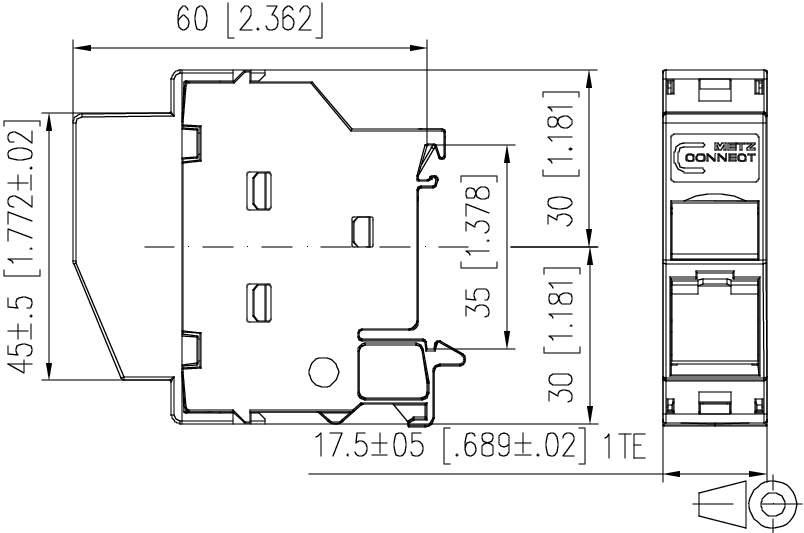

- width of 1HP allows mounting up to 12 REG plus in standard electrical distribution panels
- A cover protects the module against direct contact. If mounted in distributor panels with protective insulation, protection class II is guaranteed.
- integrated dust protection cover (also colored)
Check US distributor inventory
Accessories
Part number
130A088003-E
4251394686431
