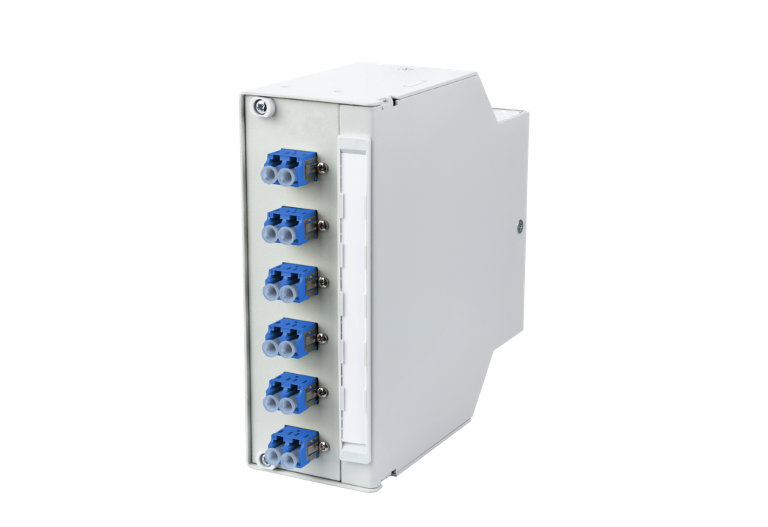

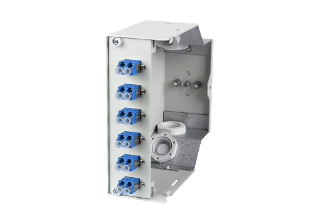

OpDAT REGpro Prefab 6xLC-D OS2
Description
- Compact distributor housing for TH35 top hat rail systems
- Prepared for installation of pre-terminated installation cables (Prefab)
- suitable for Prefabs with universal and breakout cables with a maximum of 12 fibers
- suitable for Prefabs with mini-breakout cables with a maximum of 24 fibers
- equipped with LC-D adapters
- Front area with identification strips
- Various mounting positions on the top hat rail system possible
- Cable insertion from above or below, straight or inclined, suitable for M20 strain relief (up to 2 possible)
- Housing made from sheet steel, powder coated (light gray, RAL 7035)
- Variants: equipped with LC-D adapters each blue (OS2), green (OS2 APC), violet (OM4), aqua (OM3) or lime green (OM5)
Check US distributor inventory
Part number
15024A07406-E
4251394638430
Downloads
- 3D-Data - Registration required -
- Product information
- Mounting note
- Data sheet
Additional Information
