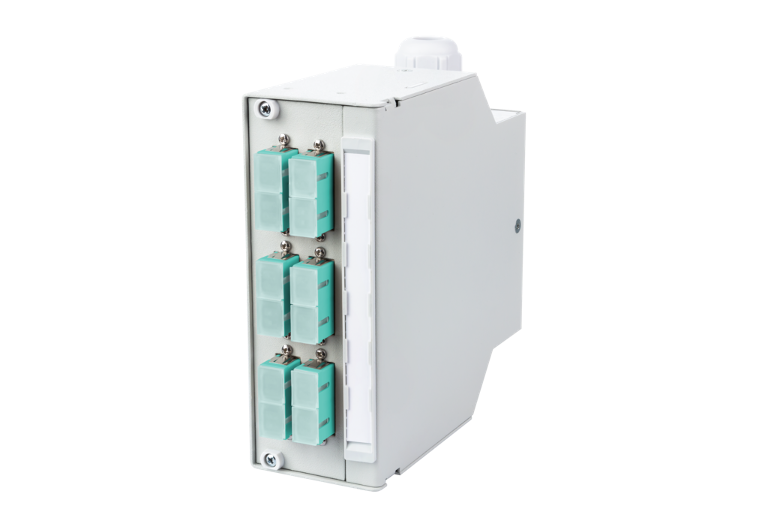

OpDAT REGpro splice 6xSC-D OM3

Description
  • Compact distributor housing for TH35 top hat rail systems
  • suitable for splicing installation cables
  • faster installation through splicing preprepared pigtails
  • equipped with SC-D adapters and SC- pigtails
  • pigtails with semi-tight buffered fiber dia. 0.9 mm, 12 colors, secondary and primary coating in the same color, length 2.0 m

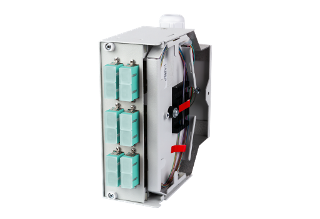

  • pigtails inserted and stripped in standard splice trays with crimp splice holders
  • pigtails are cleaned and plugged in adapters
  • Front area with identification strips
  • Various mounting positions on the top hat rail system possible
  • Cable insertion from above or below, straight or inclined, suitable for M20 strain relief (up to 2 possible)
  • one cable gland M20 with strain relief included in the delivery
  • unoccupied adapter recesses are closed with blind plugs
  • Housing made from sheet steel, powder coated (light gray, RAL 7035)
  • variants: equipped with a maximum of 6 SC-D adapters
Check US distributor inventory
Part number
15024A5BA06-E
4251394638454
