Patch cord RJ45 40G AWG 26

Description
  • fully shielded and pair screened 40G patch cord

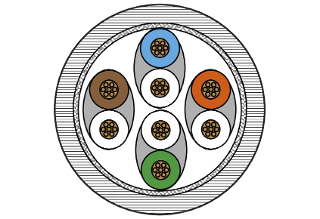

  • cable type: S/FTP 4x2xAWG 26/7 PIMF
  • cable sheath: LSHF (LSOH), halogen free
  • two robust, shielded and multi-port capable RJ45 connectors, 1:1 assignment
  • protected locking hook
  • Transmission characteristics Cat.8.1 according to ISO / IEC 11801 Ed.3: 2017 to 2000 MHz
  • Compliance with Class I according to ISO / IEC 11801 Ed.3: 2017, DIN EN 50173-1: 2018
  • 40GBASE-T suitable for 40 Gbit Ethernet (IEEE 802.3bq)
  • suitable for Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
  • Standard variants 0.5 m, 1.0 m, 1.5 m, 2.0 m, 3.0 m, 5,0 m
Check US distributor inventory
Overview of variants
Description
Packaging unit
Length
Part number
Accessories
Patch cord 40G AWG 26 0.5 m yellow
1
0.5 m
13084H0577-E
Patch cord 40G AWG 26 1.0 m yellow
1
1 m
13084H1077-E
Patch cord 40G AWG 26 1.5 m yellow
1
1.5 m
13084H1577-E
Patch cord 40G AWG 26 2.0 m yellow
1
2 m
13084H2077-E
Patch cord 40G AWG 26 3.0 m yellow
1
3 m
13084H3077-E
Patch cord 40G AWG 26 5.0 m yellow
1
5 m
13084H5077-E
