Patch cord RJ45 Cat.6A AWG 27 cULus

Description
  • especially suitable for shielded and unshielded class EA systems
  • cULus listed / DUXR.E178484
  • fully shielded Cat.6A patch cord AWG 27/7
  • two shielded RJ45 connectors, 1:1 assignment

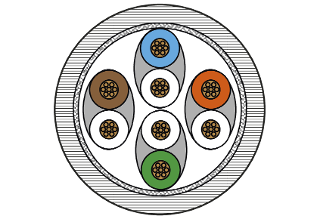

  • cable type: S/FTP 4x2xAWG 27/7 PIMF
  • cable sheath: LSHF (LSOH), halogen free
  • component testing for Cat.6A acc. to ISO/IEC 11801-1 and IEC 61935-2
  • class EA Link up to 500 MHz to ISO/IEC 11801-1, DIN EN 50173-1
  • suitable for 10 GBit Ethernet (IEEE 802.3an) and Remote Powering (PoE, PoE plus, UPoE) and HDBaseT
  • snagless boot with integrated lever protection
  • colors may differ slightly due to different protection lots
Check US distributor inventory
Overview of variants
Description
Color
Packaging unit
Length
Part number
Accessories
Patch cord Cat.6A AWG 27, 0.5 m gray, cULus
gray
1
0.5 m
13084C0533-E
Patch cord Cat.6A AWG 27, 1.0 m gray, cULus
gray
1
1 m
13084C1033-E
Patch cord Cat.6A AWG 27, 1.5 m gray, cULus
gray
1
1.5 m
13084C1533-E
Patch cord Cat.6A AWG 27, 2.0 m gray, cULus
gray
1
2 m
13084C2033-E
Patch cord Cat.6A AWG 27, 3.0 m gray, cULus
gray
1
3 m
13084C3033-E
Patch cord Cat.6A AWG 27, 4.0 m gray, cULus
gray
1
4 m
13084C4033-E
Patch cord Cat.6A AWG 27, 5.0 m gray, cULus
gray
1
5 m
13084C5033-E
Patch cord Cat.6A AWG 27, 7.0 m gray, cULus
gray
1
7 m
13084C7033-E
Patch cord Cat.6A AWG 27, 15.0 m gray, cULus
gray
1
15 m
13084CA533-E
Patch cord Cat.6A AWG 27, 20.0 m gray, cULus
gray
1
20 m
13084CB033-E
Patch cord Cat.6A AWG 27, 0.5 m yellow, cULus
yellow
1
0.5 m
13084C0577-E
Patch cord Cat.6A AWG 27, 1.0 m yellow, cULus
yellow
1
1 m
13084C1077-E
Patch cord Cat.6A AWG 27, 2.0 m yellow, cULus
yellow
1
2 m
13084C2077-E
Patch cord Cat.6A AWG 27, 3.0 m yellow, cULus
yellow
1
3 m
13084C3077-E
Patch cord Cat.6A AWG 27, 5.0 m yellow, cULus
yellow
1
5 m
13084C5077-E
Patch cord Cat.6A AWG 27, 7.0 m yellow, cULus
yellow
1
7 m
13084C7077-E
Patch cord Cat.6A AWG 27, 10.0 m yellow, cULus
yellow
1
10 m
13084CA077-E
Patch cord Cat.6A AWG 27, 20.0 m yellow, cULus
yellow
1
20 m
13084CB077-E

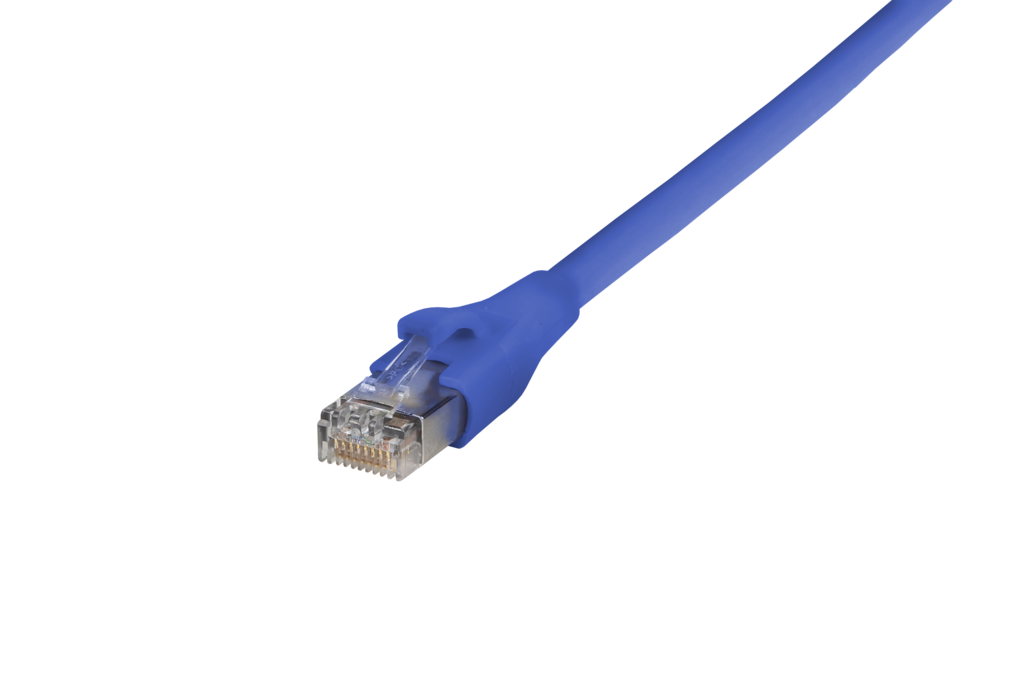

Patch cord Cat.6A AWG 27, 2.0 m blue, cULus
blue
1
2 m
13084C2044-E

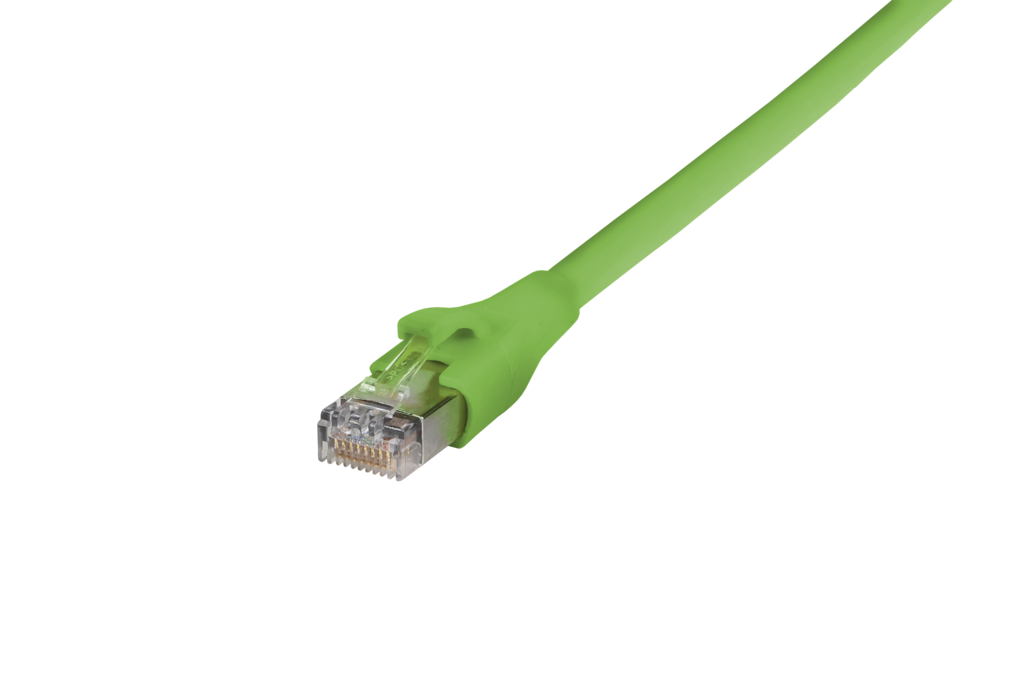

Patch cord Cat.6A AWG 27, 2.0 m green, cULus
green
1
2 m
13084C2055-E
Patch cord Cat.6A AWG 27, 5.0 m green, cULus
green
1
5 m
13084C5055-E

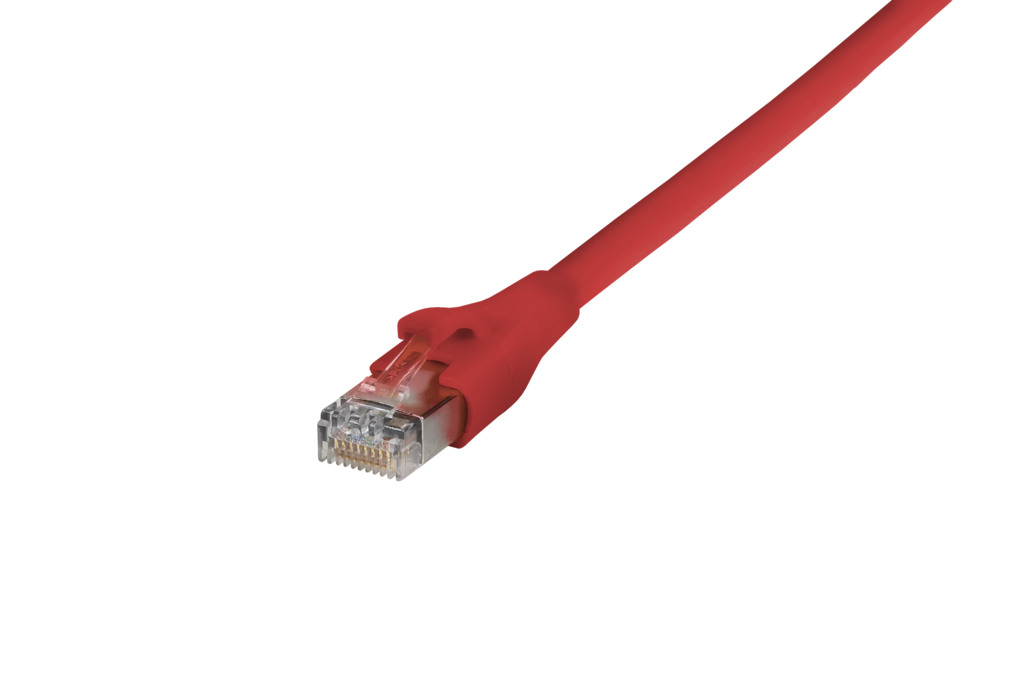

Patch cord Cat.6A AWG 27, 2.0 m red, cULus
red
1
2 m
13084C2066-E
Patch cord Cat.6A AWG 27, 3.0 m red, cULus
red
1
3 m
13084C3066-E
