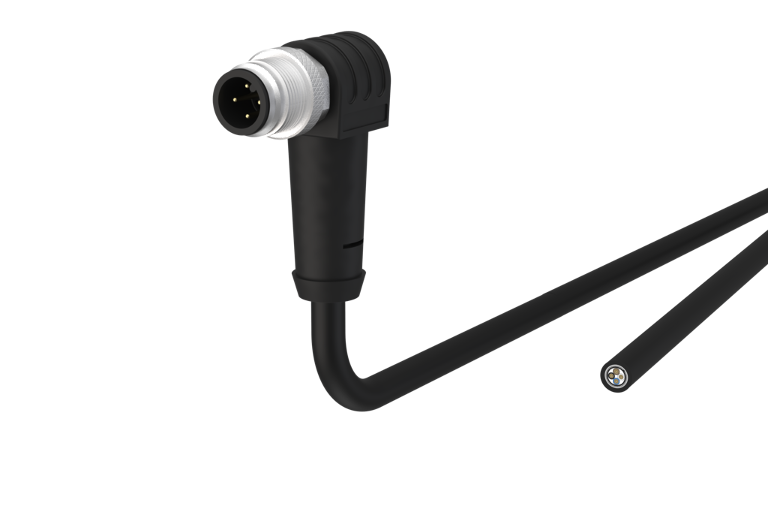

M12 Sensor/actuator cable, A-coded, X.X m,
M12 plug angled - free line end,
shielded, 4-pole, PUR-C

Description

Flexible, silicone- and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag-chain application is possible at a bending radius of minimum 10xd. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine tools and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements. Special features: flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain resistant, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant

  • shielded M12 sensor/actuator cable
  • coding: 4-pole, A-coded acc. to IEC 61076-2-101
  • side 1: M12 plug angled
  • side 2: free line end
  • outer diameter cable sheath: (5.1 ±0.2) mm
  • material: PUR

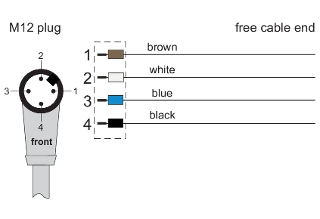

  • wire colors: 1 BN, 2 WH, 3 BU, 4 BK

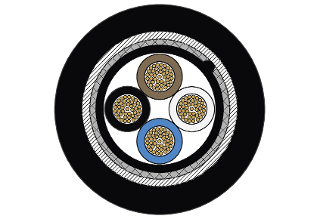

  • wire cross-section/stranded copper wire construction: 4x0.34 mm², 42x0.10 mm
  • torsion: +/-360°/m, >= 2 million cycles
  • drag chain capable: max. 5m/s², 5 million cycles
  • nominal voltage cable: <= 300 V
  • all available variants can be created with the configurator
Check US distributor inventory
Part number
142MFAD0XXX
